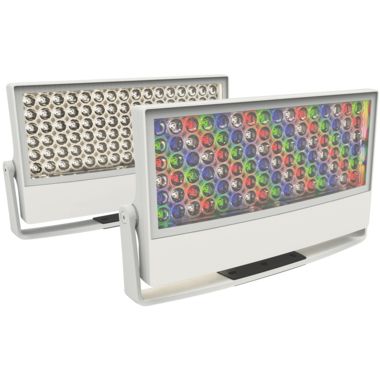

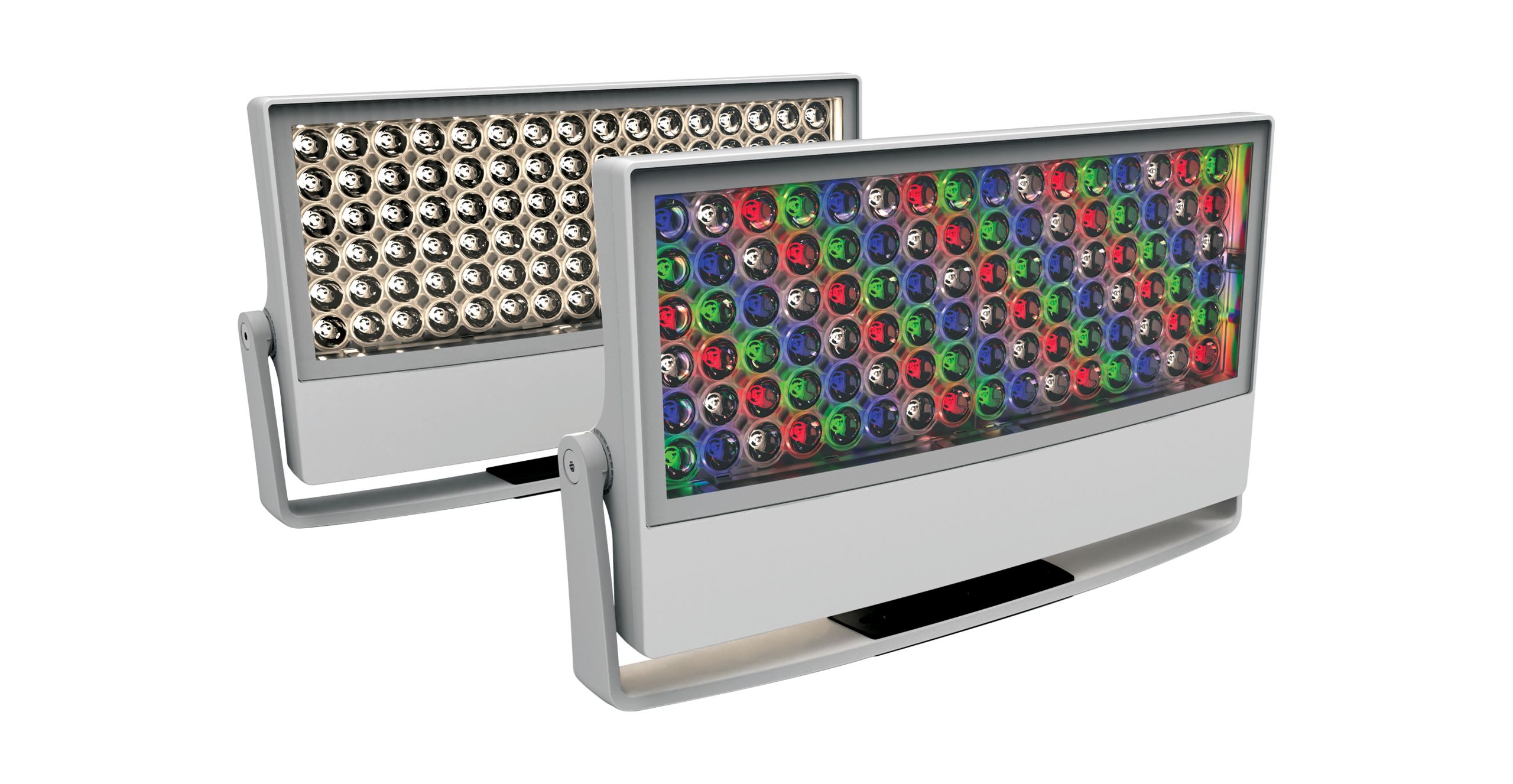

Quadralux Q8

Q8
LS9180
An extra large, high-output spotlight designed to achieve a peak intensity of up to 1.9 Million candelas.
Configure this product

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer* and standard LED options. Available in white, colour changing and tunable white light engines.

*Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances.

Accessories

LS6226 Accessory Holder
LS6227 Cross Hatch Louvre
LS6228 45° Visor
LS6229 Custom Visor
LS6318 4.0"  (102mm)  Pole Clamp
LS6319 4.5"  (114mm)  Pole Clamp
LS6320 5.0"  (127mm)  Pole Clamp

Specifications

Features

Lumen Output 16,210 lm LED Power 150W Typical Lifetime > 60,000 hours Input Voltage 110-277 V, 50/60 Hz Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10V IP Rating IP66 / IP67 IK Rating IK10 Vibration Resistance 3G Rating (ANSI 136.31) Compliance CE RCM Colour Options Cool White Warm White RGB RGBW RGBA Tunable White Download Datasheet

Product Configurator

Customise Quadralux Q8 below

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

150W (150)

LED Type

Required

Standard (S)

Ideal for applications where maximum output power and efficacy are most important e.g. Flood and Area lighting

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important e.g. Grazing and Accent lighting

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

4.5°

Narrow (NR)

Narrow (NR)

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Linear Horizontal (LH)

Linear Horizontal (LH)

60° x 10°

Linear Vertical (LV)

Linear Vertical (LV)

10° x 60°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

40° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

10° x 40°

Medium Horizontal (MH)

Medium Horizontal (MH)

40° x 20°

Medium Vertical (MV)

Medium Vertical (MV)

20° x 40°

Wide Horizontal (WH)

Wide Horizontal (WH)

60° x 20°

Wide Vertical (WV)

Wide Vertical (WV)

20° x 60°

Mounting

Required

Standard Bracket (S)

3G Rated Bracket (G)

Vibration Resistance (ANSI C136.31)

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

Control

Required

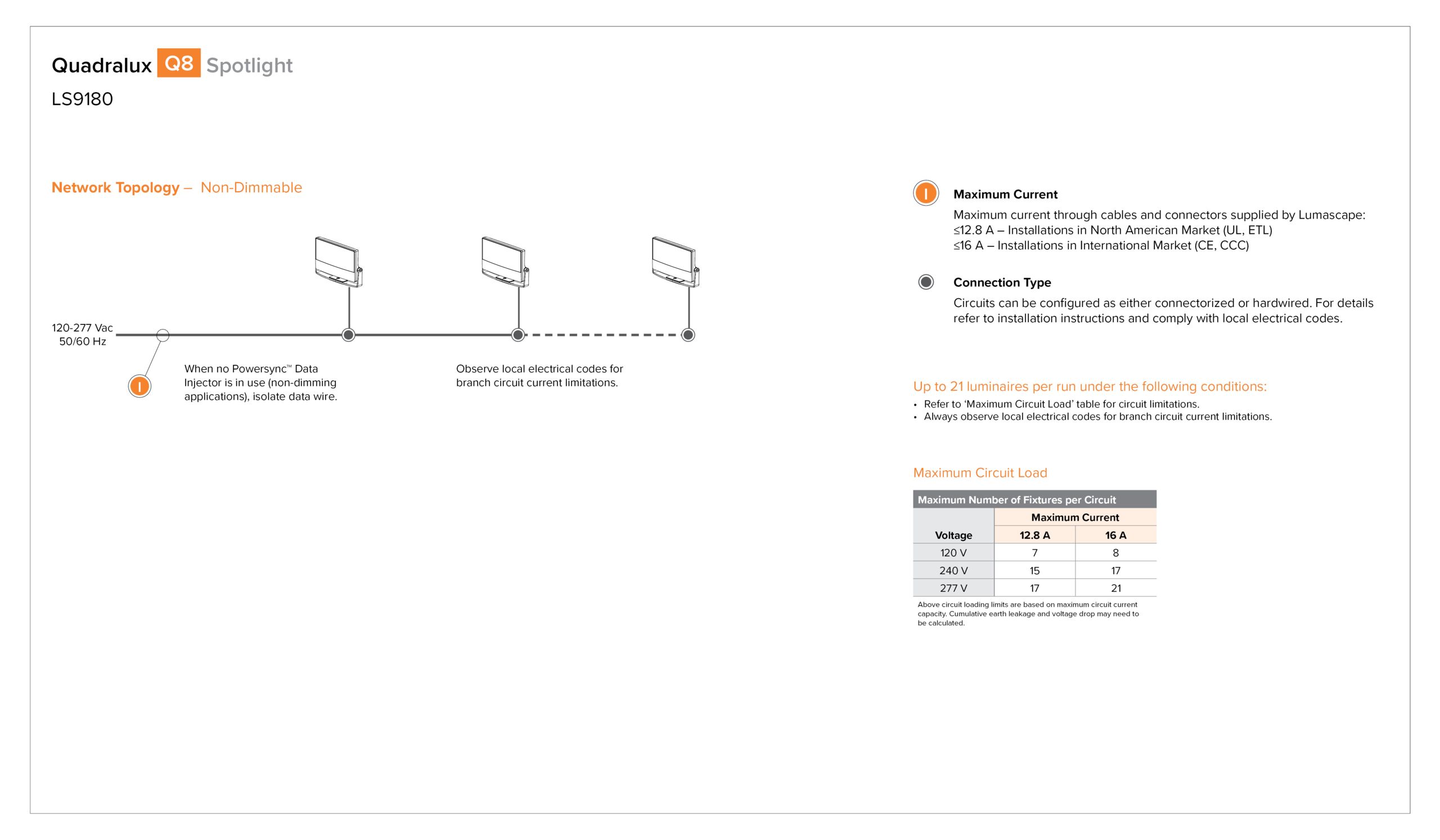

Non dimmable (ND)

For single colour, non-dimming applications only.

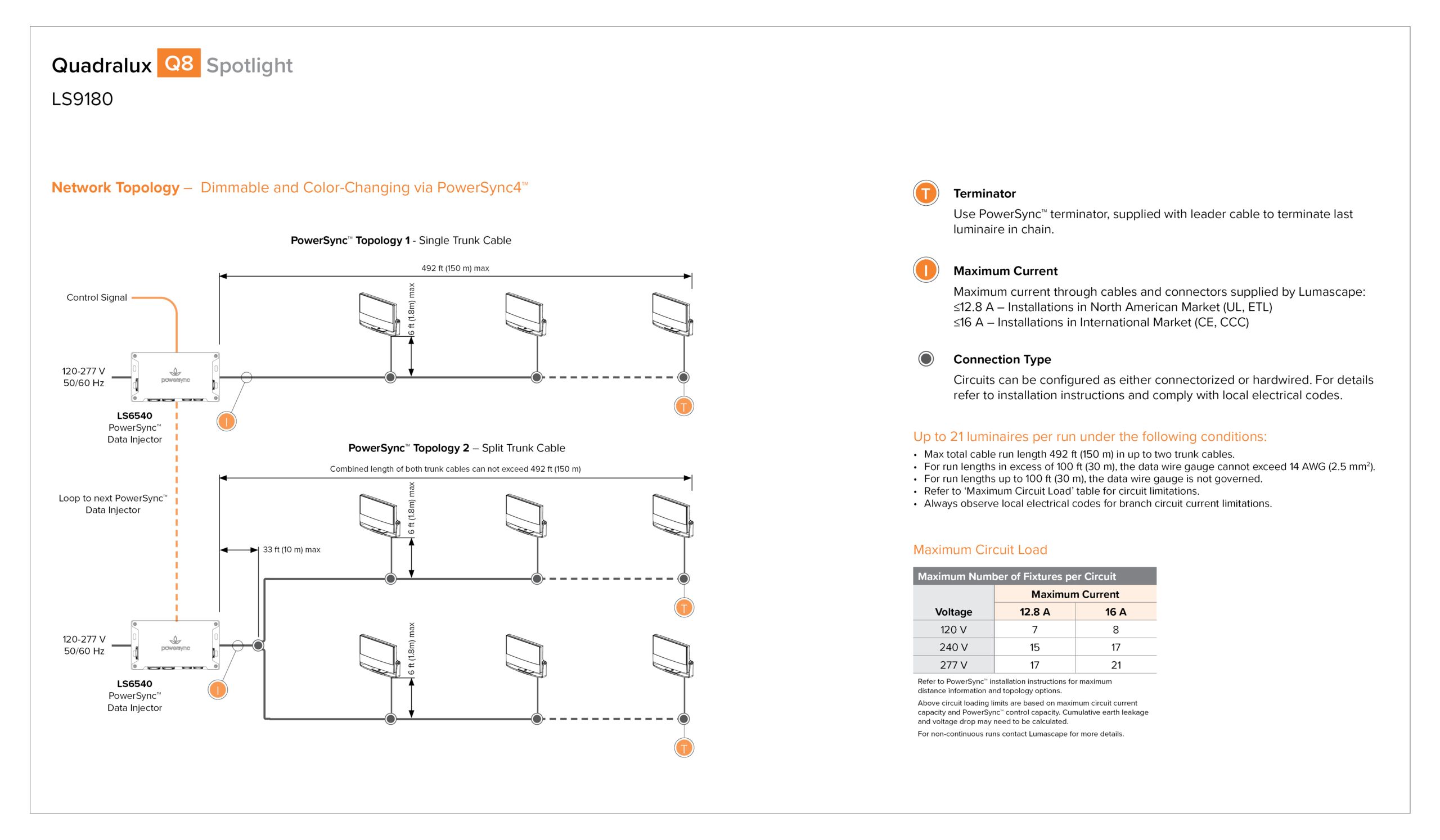

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and colour changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required - order separately.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info

Cable Length

For custom cable length contact Lumascape.

Required

1.8m / 6 ft (006)

H07RN-F 4 x 1.5mm² flexible rubber cable

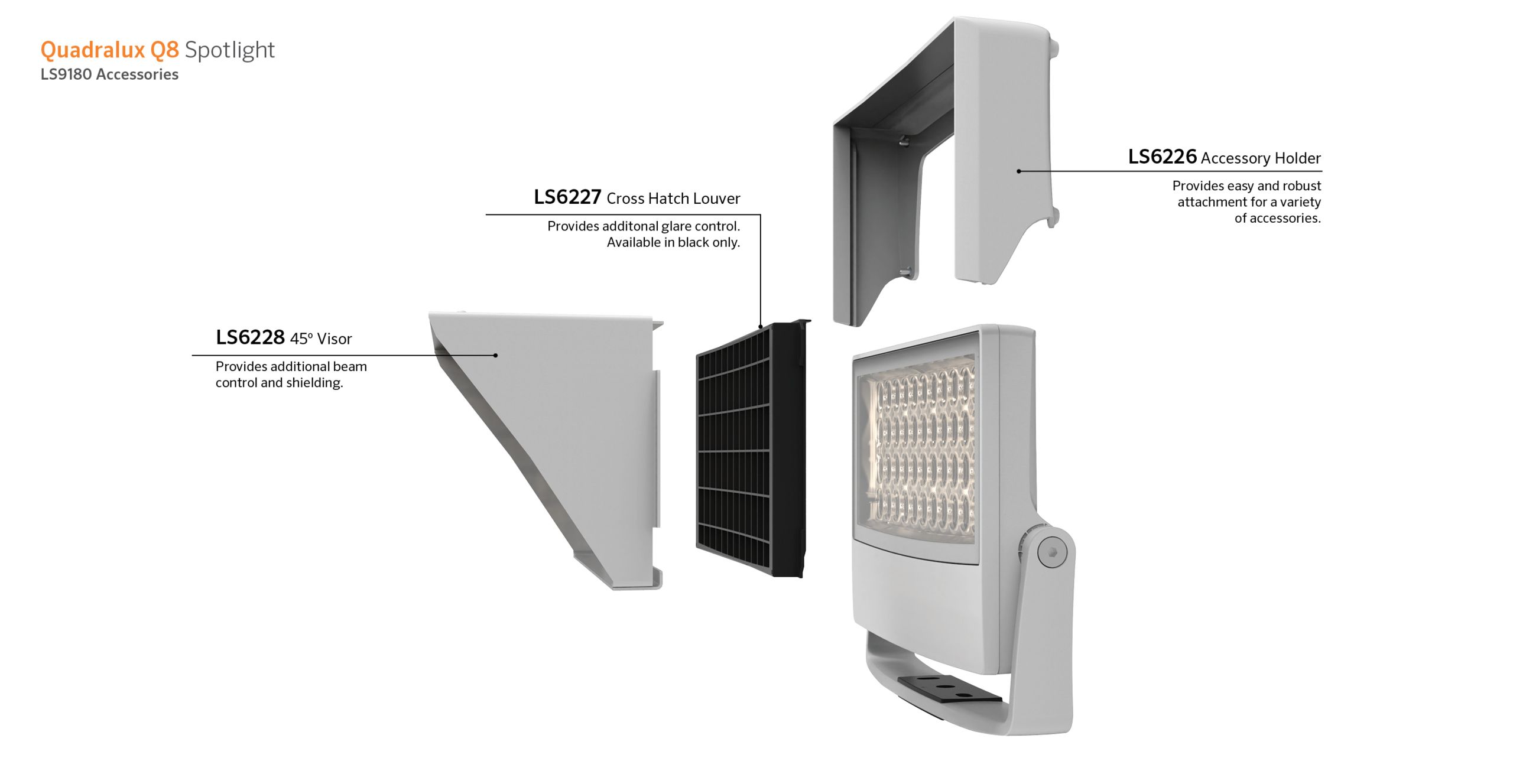

Accessories

Accessory Holder

Order to match luminaire powdercoat colour

Accessory Holder (LS6226)

Required for all shielding and glare control accessories

More info

Louvre

Cross Hatch Louvre (LS6227)

Cross Hatch Louvre (LS6227)

Requires Accessory Holder

More info

Shielding

Order to match luminaire powdercoat colour.

45º Visor (LS6228)

Custom visors available on request

More info

Mounting & Installation

Order to match luminaire powdercoat colour.

3.0" Pole Clamp (LS6317)

3.0" Pole Clamp (LS6317)

(76mm) Luminaire must be ordered with a 3G rated bracket

More info
4.0" Pole Clamp (LS6318)

4.0" Pole Clamp (LS6318)

(102mm) Luminaire must be ordered with a 3G rated bracket

More info
4.5" Pole Clamp (LS6319)

4.5" Pole Clamp (LS6319)

(114mm) Luminaire must be ordered with a 3G rated bracket

More info
5.0" Pole Clamp (LS6320)

5.0" Pole Clamp (LS6320)

(127mm) Luminaire must be ordered with a 3G rated bracket

More info
