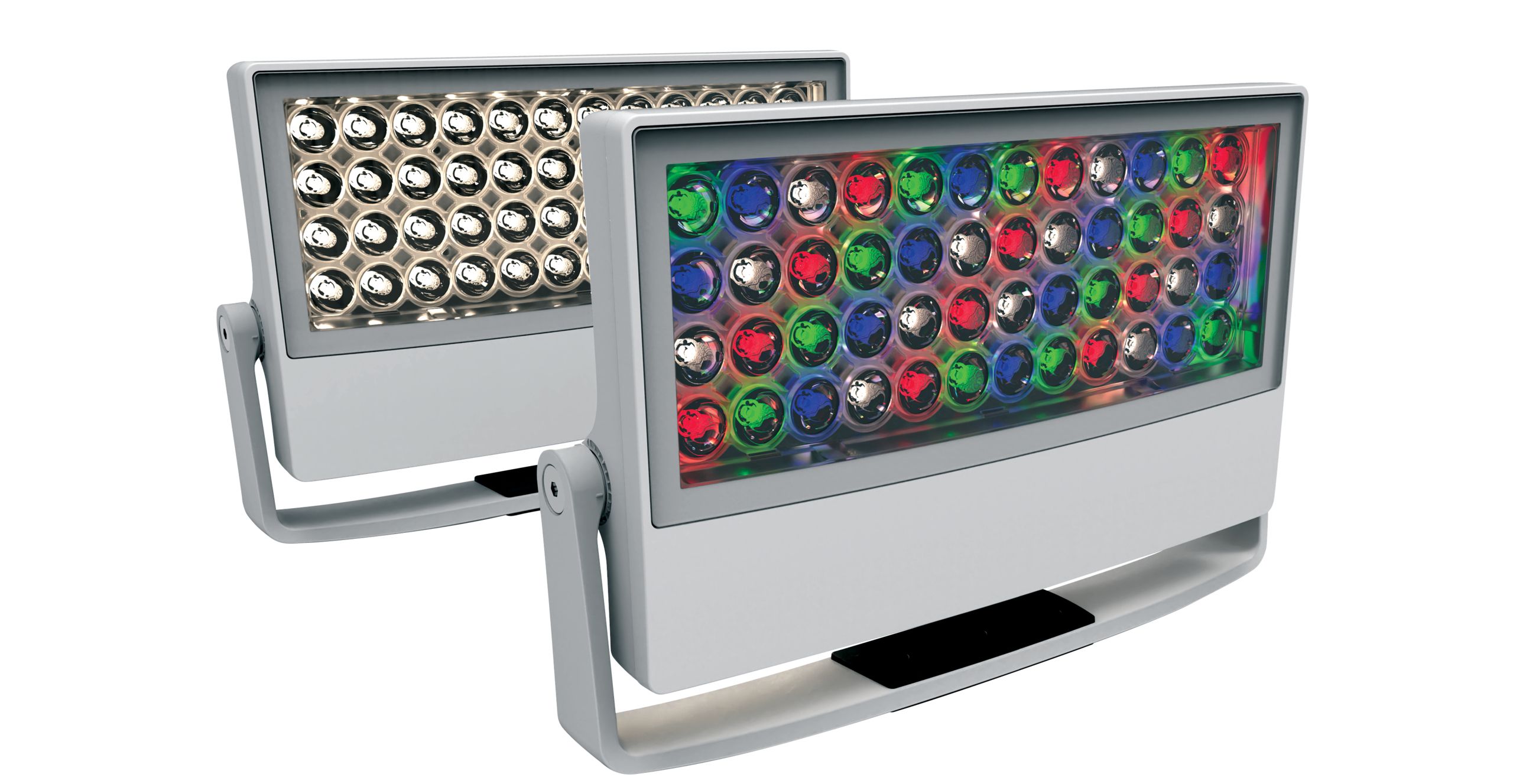

Quadralux Q6

Q6
LS9160
An large architectural spotlight designed to achieve a peak intensity of up to 620,000 Candela.
Configure this product

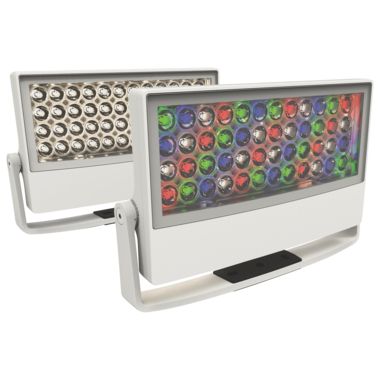

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer lens options which provide superb color-over-angle consistency and blending of colors even at close blending distances. Standard LED options are also available for exceptional reach.

Accessories

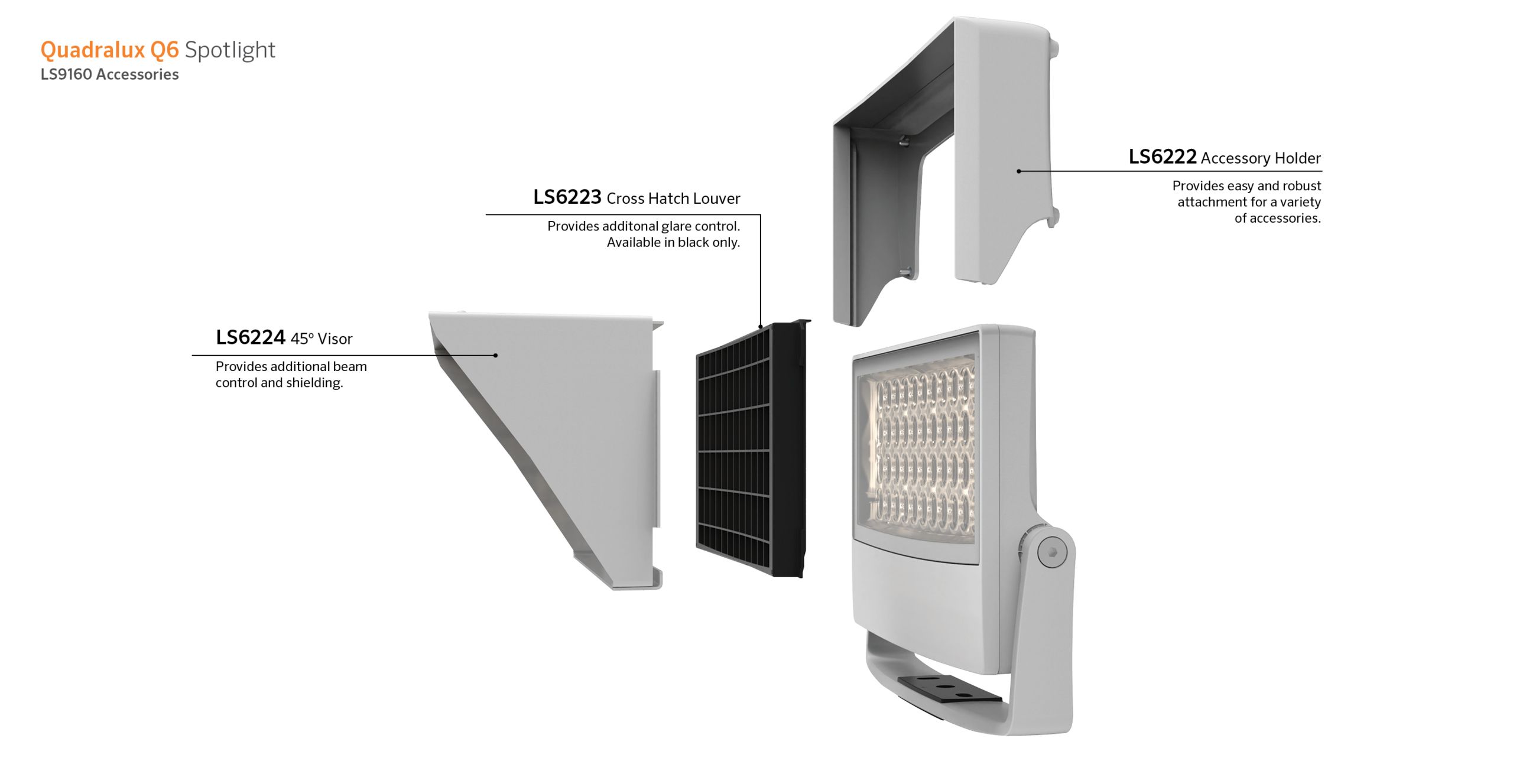

LS6222 Accessory Holder
LS6223 Cross Hatch Louvre
LS6224 45° Louvre
LS6225 Custom Visor
LS6317 3.0"  (76mm)  Pole Clamp
LS6318 4.0"  (120mm)  Pole Clamp
LS6319 4.5"  (114mm)  Pole Clamp
LS6320 5.0"  (127mm)  Pole Clamp

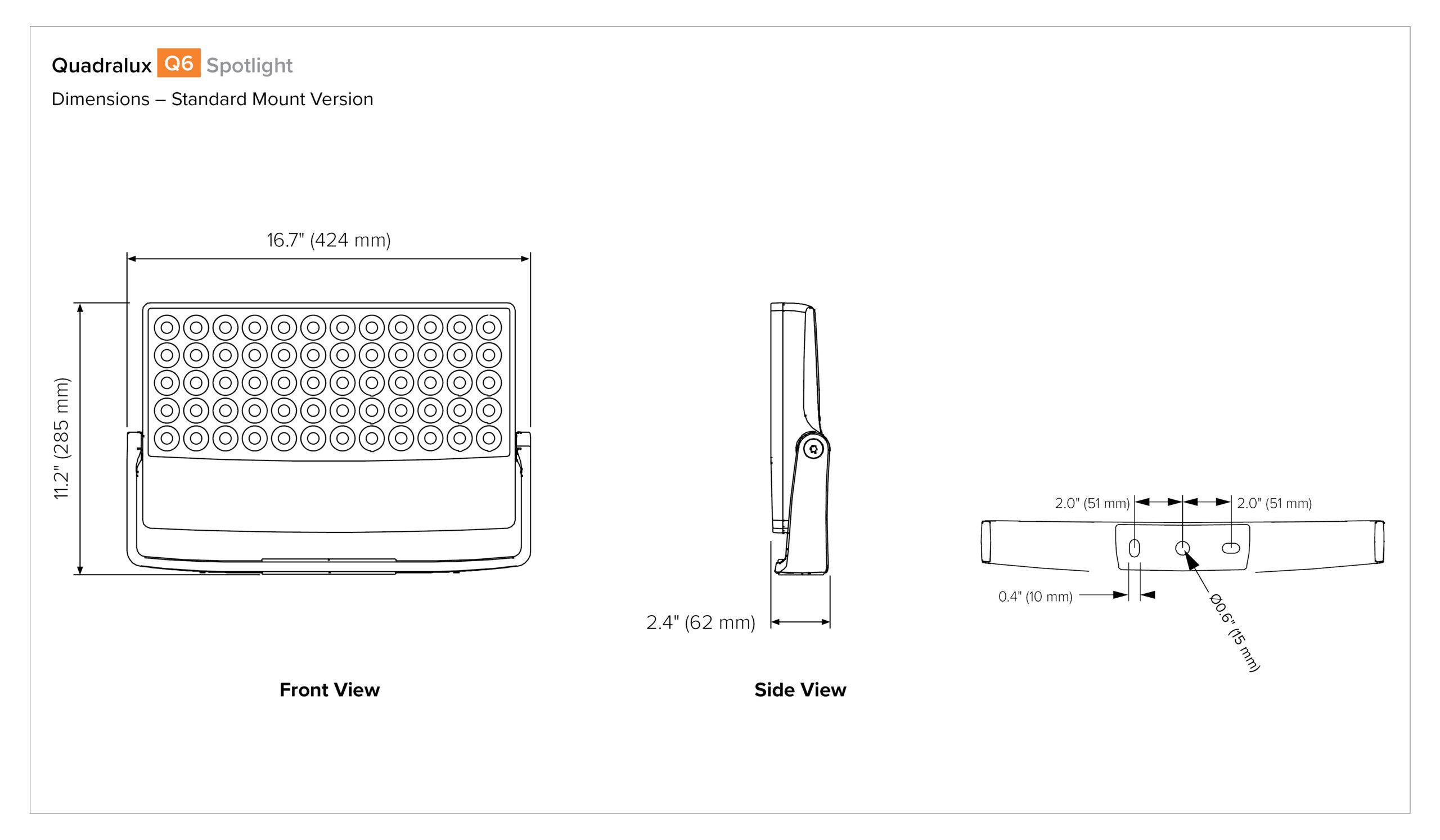

Specifications

Features

Lumen Output 7,630 lm LED Power 80 W Power Consumption ≤86 W Typical Lifetime > 60,000 hrs Input Voltage 120-277 Vac, 50/60 Hz Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10V IP Rating IP66 / IP67 (IP68 Tested) IK Rating IK9 Vibration Resistance 3G Rating (ANSI C136.31) Compliance CE RCM Colour Options Cool White Warm White Red Blue Green RGBW RGBA RGBW with Royal Blue Tunable White Download Datasheet

Product Configurator

Customise Quadralux Q6 below

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

80 W (80)

LED Type

Required

Standard (S)

Ideal for applications where maximum output power and efficacy are most important e.g. Flood and Area lighting

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important e.g. Grazing and Accent lighting

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

4.5°

Narrow (NR)

Narrow (NR)

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Mounting

Required

Standard Bracket (S)

3G Rated Bracket (G)

Vibration Resistance (ANSI C136.31)

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

Control

Required

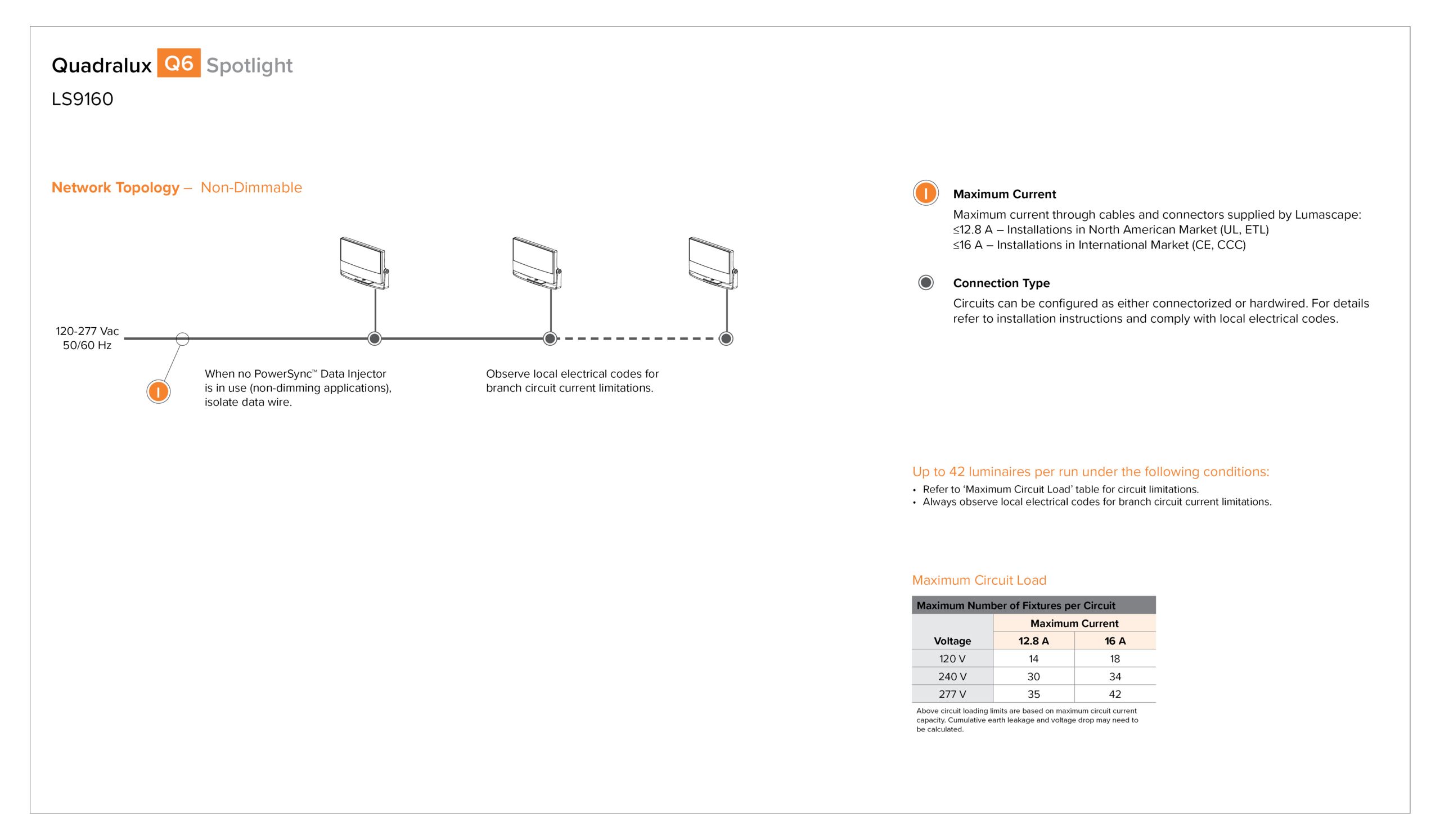

Non dimmable (ND)

For single colour, non-dimming applications only.

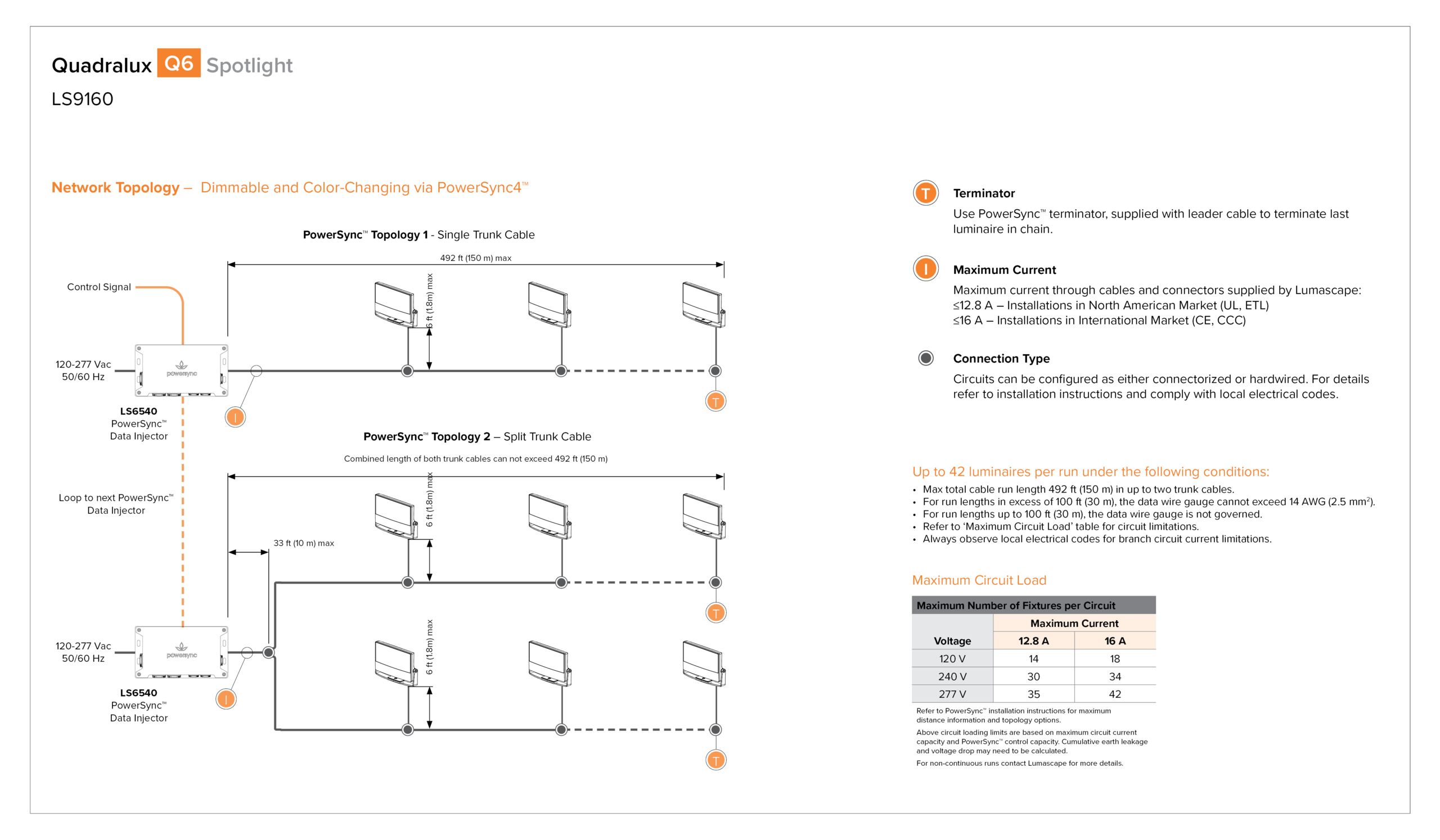

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and colour changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required - order separately.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info

Cable Length

For custom cable length contact Lumascape.

Required

1.8m / 6 ft (006)

H07RN-F 4 x 1.5mm² flexible rubber cable

Accessories

Accessory Holder

Order to match luminaire powdercoat colour

Accessory Holder (LS6222)

Required for all shielding and glare control accessories

More info

Louvre

Provides additional glare control. Available in black only.

Cross Hatch Louvre (LS6223)

Cross Hatch Louvre (LS6223)

Requires Accessory Holder

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

45° Visor (LS6224)

45° Visor (LS6224)

More info

Mounting & Installation

Luminaire must be ordered with a 3G rated bracket. Order to match luminaire powder-coat colour.

3.0" Pole Clamp (LS6317)

3.0" Pole Clamp (LS6317)

(76 mm)

More info
4.0" Pole Clamp (LS6318)

4.0" Pole Clamp (LS6318)

(102 mm)

More info
4.5" Pole Clamp (LS6319)

4.5" Pole Clamp (LS6319)

(114 mm)

More info
5.0" Pole Clamp (LS6320)

5.0" Pole Clamp (LS6320)

(127 mm)

More info
