Quadralux Q2

Q2
LS9120

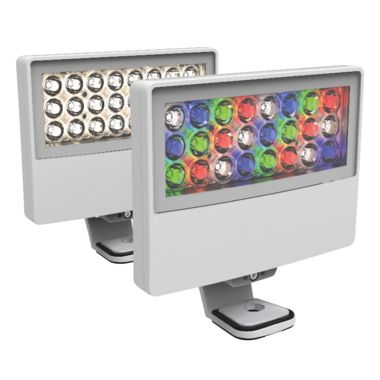

A small architectural spotlight, combining technology and performance in a modern form factor.
Configure this product

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer* and standard LED options. Available in white, colour changing and tunable white light engines.

*Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances

Accessories
LS6201 Accessory Holder
LS6202 Cross Hatch Louvre
LS6203 45° Visor
LS6204 Custom Visor
LS6301 4.0"  (106mm)  Junction Box Adaptor / Surface Mounting Kit
LS6302 3.0"  (76mm)  Pole Clamp
LS6303 4.0"  (102mm)  Pole Clamp
LS6304 4.5"  (114mm)  Pole Clamp
LS6305 5.0"  (127mm)  Pole Clamp
LS6306 2 3/8" x 4.0"  (60mm x 104mm)  Tenon Adaptor
LS6307 3.5" x 6.0"  (89mm x 147mm)  Tenon Adaptor



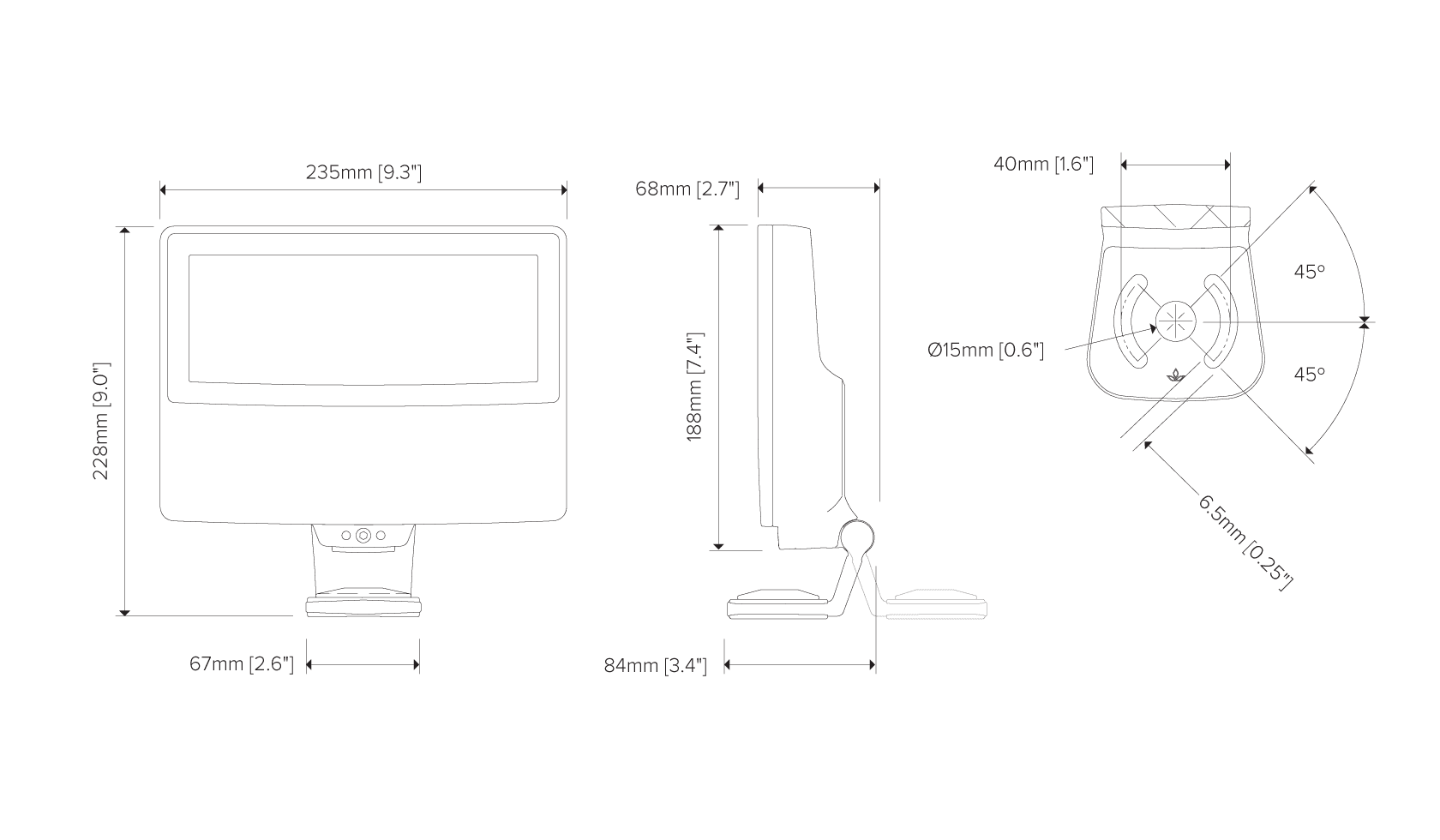

Specifications

Features

Lumen Output 3,406 lm LED Power 30W Typical Lifetime > 60,000 hours Input Voltage 110-277 V, 50/60 Hz Control Interface PowerSync™ Control Protocol DMX/RDM, 0-10V IP Rating IP66 / IP67 IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance CE RCM Colour Options Cool White Warm White RGBW RGBA Tunable White Download Datasheet

Downloads

Install Guide Download Datasheet
BIM Files LS9120LED ZIP (3.56 M) IES Files LS9120 ZIP (1.11 M) CAD Details Link

Related

Melbourne, Australia

Flinders Street Railway Station
Jakarta, Indonesia

Semanggi Interchange
Singapore

Archifest RGB Pavilion

Technology

Product Configurator

LS9120 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Quadralux Q2 below

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

30W (30)

LED Type

Required

Standard (S)

Ideal for applications where maximum output power and efficacy are most important e.g. Flood and Area lighting

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important e.g. Grazing and Accent lighting

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

6°

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

60°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

Control

Required

Non dimmable (ND)

For single colour, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and colour changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required - order separately.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info

Cable Length

For custom cable length contact Lumascape.

Required

1.8m / 6 ft (006)

H07RN-F 4 x 1.5mm² flexible rubber cable

Accessories

Accessory Holder

Order to match luminaire powdercoat colour

Accessory Holder (LS6201)

Required for all shielding and glare control accessories.

More info

Louvre

Provides additional glare control. Available in black only.

Cross Hatch Louvre - Black (LS6202)

Cross Hatch Louvre - Black (LS6202)

Requires Accessory Holder.

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

45° Visor (LS6203)

Custom visors available on request. Contact Lumascape for more information.

More info

Mounting & Installation

Luminaire must be ordered with a 3G rated bracket. Order to match luminaire powder-coat colour.

4.0" Junction Box Adaptor (LS6301)

4.0" Junction Box Adaptor (LS6301)

Includes Surface Mounting Kit

More info
3.0" Pole Clamp (LS6302)

3.0" Pole Clamp (LS6302)

(76mm)

More info
4.0" Pole Clamp (LS6303)

4.0" Pole Clamp (LS6303)

(102mm)

More info
4.5" Pole Clamp (LS6304)

4.5" Pole Clamp (LS6304)

(114mm)

More info
5.0" Pole Clamp (LS6305)

5.0" Pole Clamp (LS6305)

(127mm)

More info
2 3/8" x 4.0" Tenon Adaptor (LS6306)

2 3/8" x 4.0" Tenon Adaptor (LS6306)

(60mm x 104mm)

More info
3.5" x 6.0" Tenon Adaptor (LS6307)

3.5" x 6.0" Tenon Adaptor (LS6307)

(89mm x 147mm)

More info
