Quadralux Q4

Q4
LS9140
A medium architectural spotlight, combining technology and performance in a modern design
Configure this product

Product Overview

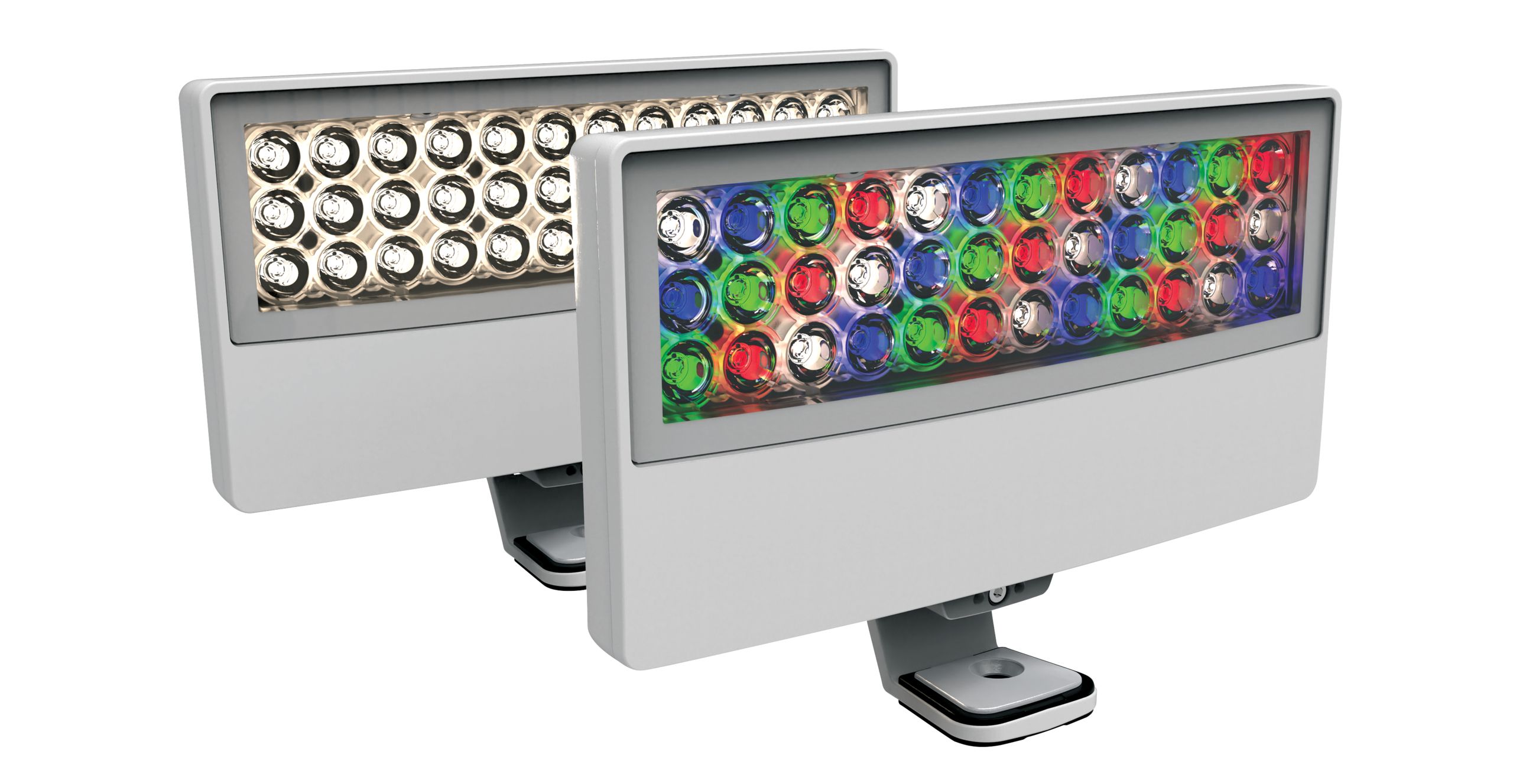

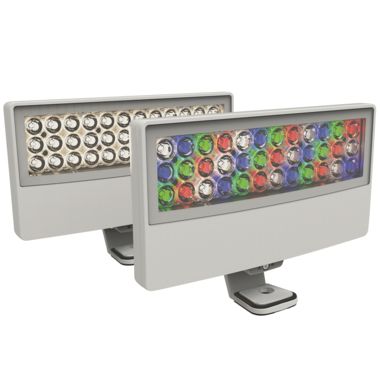

The Quadralux Q4 is a medium architectural spotlight that combines technology and performance in a modern design. Available in white, colour changing and tunable white light engines, the Quadralux Q4 is packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer* and standard LED options.

*Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances.

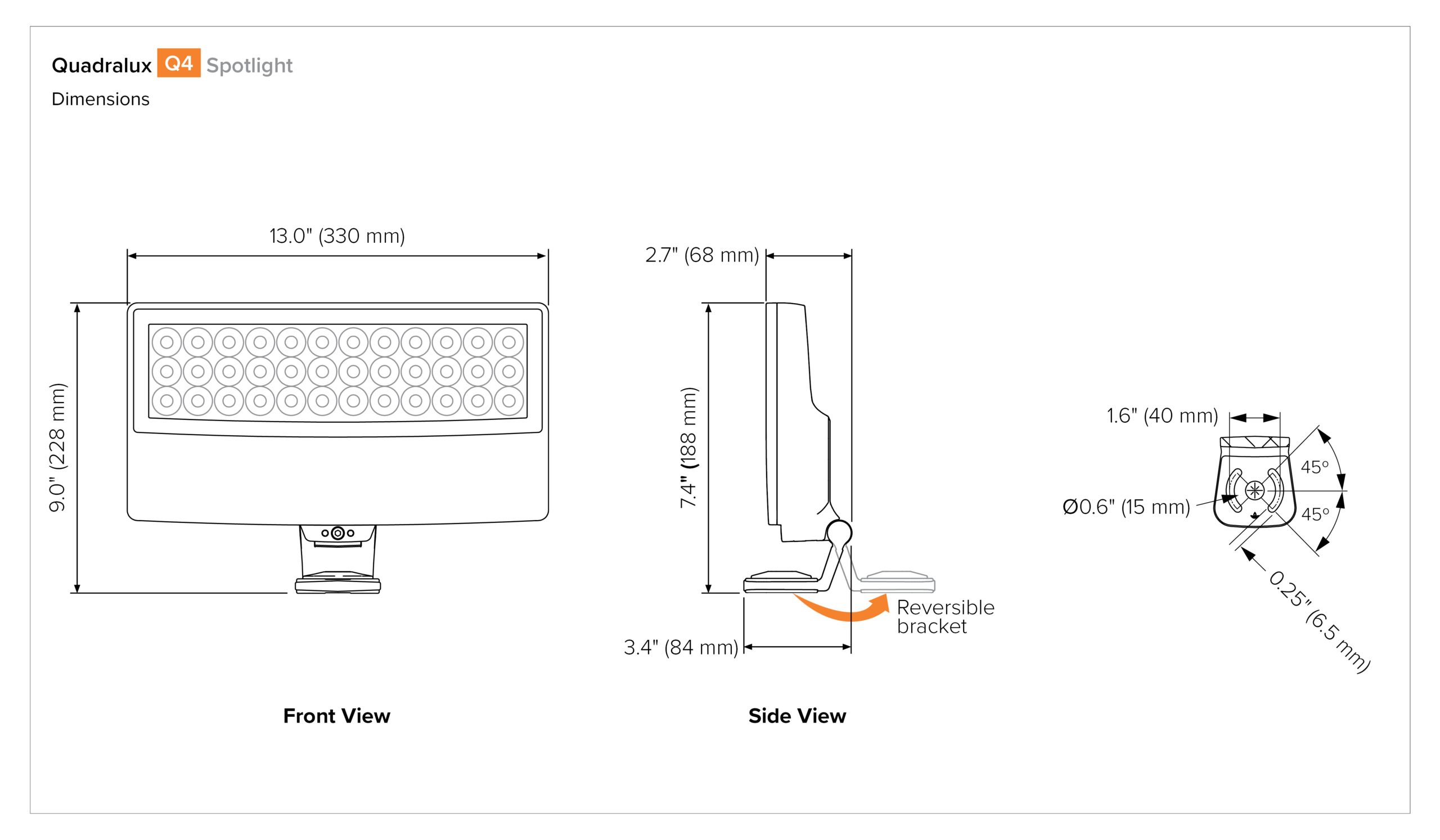

Specifications

Features

Lumen Output 5,680lm Power Consumption 58W Control Protocol PowerSync (DMX/RDM, 0-10V) IP Rating IP66/IP67 IK Rating IK8 Compliance CE CCC Colour Options BIM Cool White Warm White RGB RGBW RGBA Tunable White Download Datasheet

Product Configurator

Customise Quadralux Q4 below

Colour system

Select the colour engine you require

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Power Consumption

Required

50W

50W

LED Type

Required

Standard

Standard

Designer

Designer

Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances

Light Source

Required

Static White

Static White

2,700 K (80 CRI)

Static White

Static White

3,000K (80 CRI)

Static White

Static White

3,500K (80 CRI)

Static White

Static White

4,000 K (80 CRI)

Static White

Static White

5,000K (70 CRI)

Single Colour

Single Colour

Red

Single Colour

Single Colour

Green

Single Colour

Single Colour

Blue

Dynamic Colour

Dynamic Colour

RGBA

Dynamic Colour

Dynamic Colour

RGBW

Tunable White

Tunable White

2,700 K - 6,500 K

Connection Type

Required

Type 77 - Connectorised

Type 77 - Connectorised

Flexible cable for connectorised installations, includes MicroAntileach.

Type 84 - Hard Wired

Type 84 - Hard Wired

Flexible cable for hard wired installations, includes MicroAntileach.

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow

Very Narrow

Narrow

Narrow

10º

Narrow Medium

Narrow Medium

15º

Medium

Medium

30º

Wide

Wide

45º

Wide Flood

Wide Flood

60º

Linear Horizontal

Linear Horizontal

60º x 10º

Linear Vertical

Linear Vertical

10º x 60º

Narrow Horizontal

Narrow Horizontal

40º x 10º

Narrow Vertical

Narrow Vertical

10º x 40º

Medium Horizontal

Medium Horizontal

40º x 20º

Medium Vertical

Medium Vertical

20º x 40º

Wide Horizontal

Wide Horizontal

60º x 20º

Wide Vertical

Wide Vertical

20º x 60º

Input Voltage

Required

110-240V, 50/60Hz

110-240V, 50/60Hz

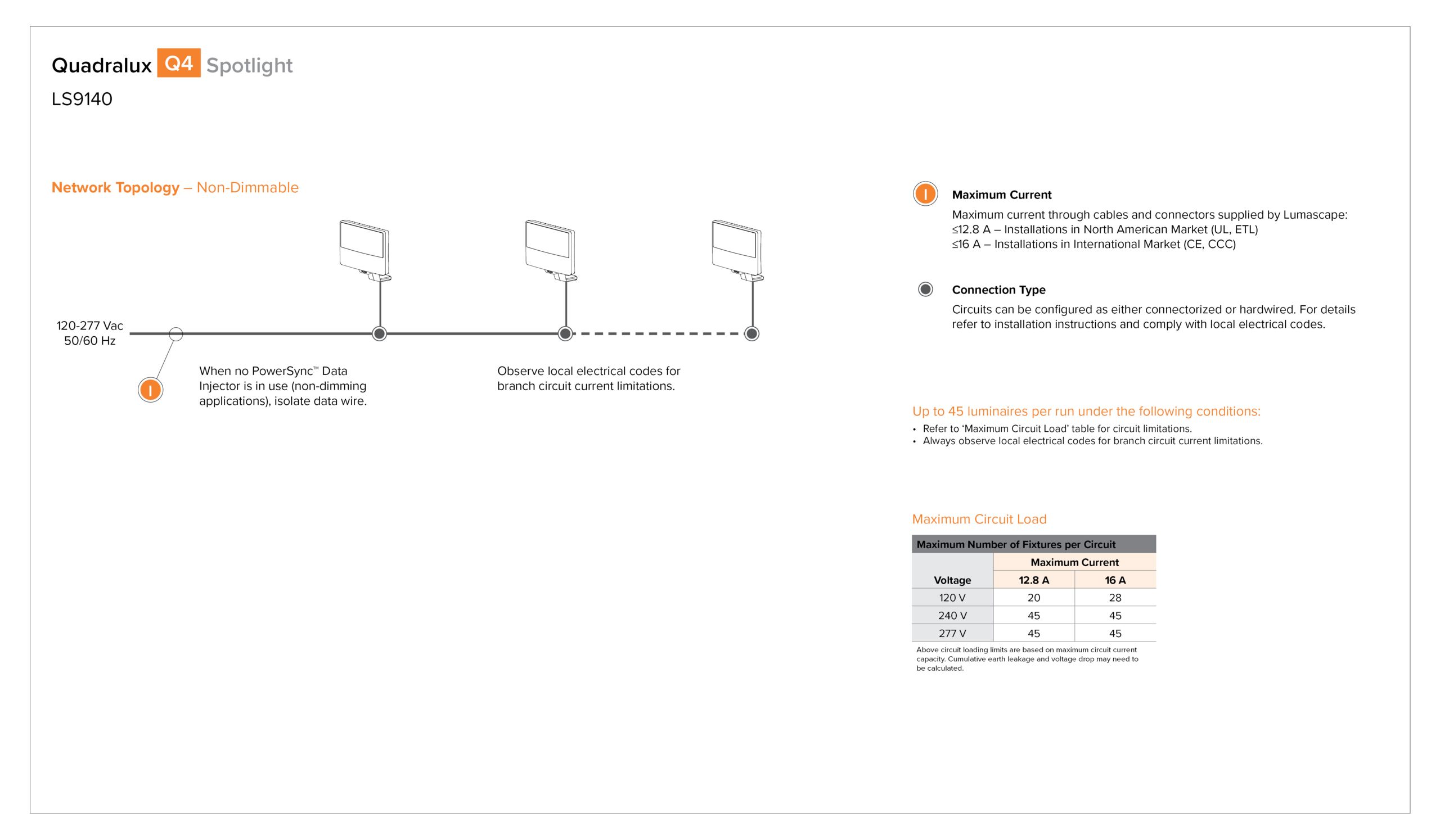

Mains Voltage

Control

Required

Non dimmable

Non dimmable

For single colour, non-dimming applications only.

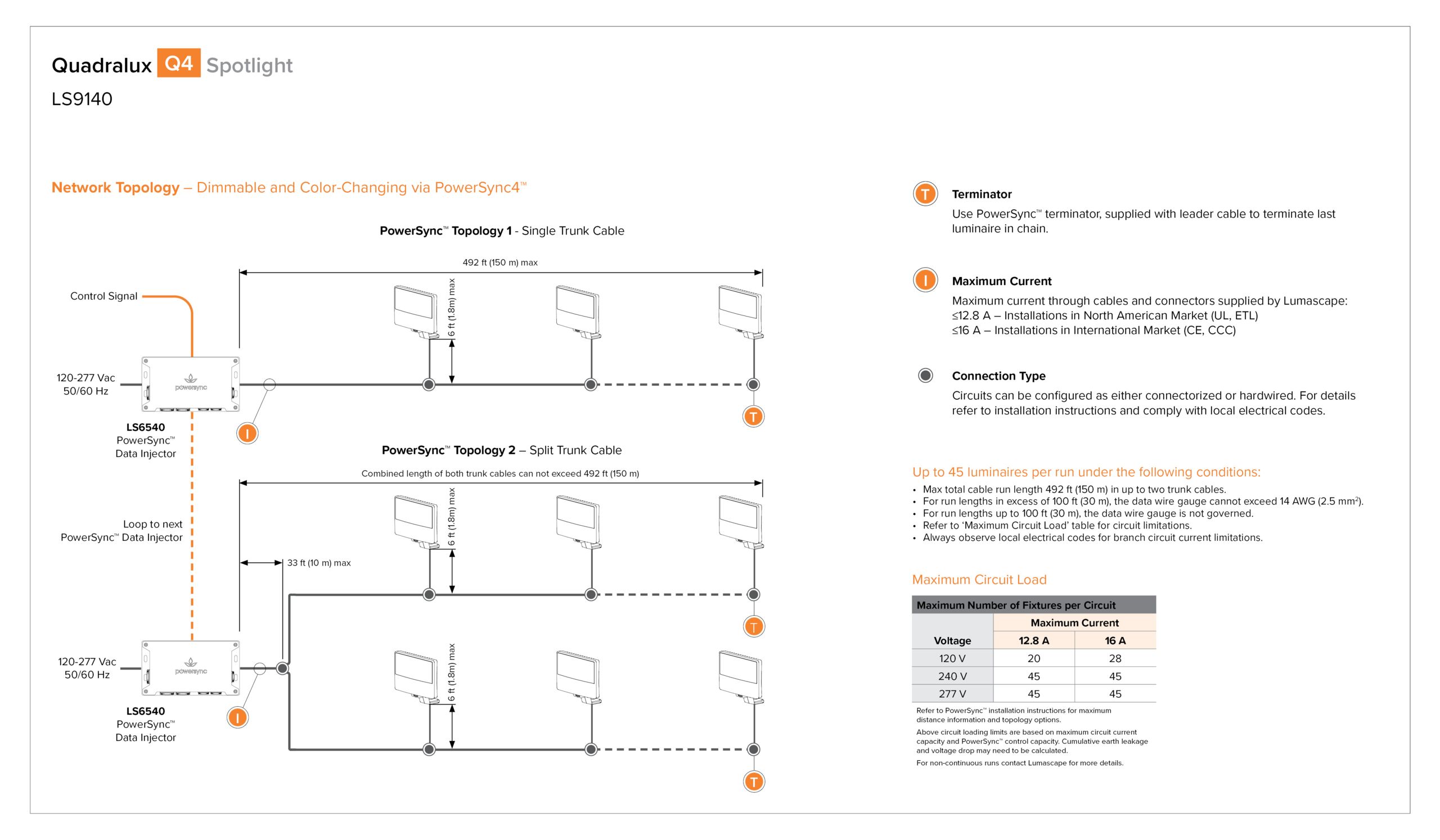

PowerSync

PowerSync

Required for all dimming and colour changing applications. LS6540 Data Injector required - order separately

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black

Black

RAL9004 from RAL Classic collection

Anthracite Grey

Anthracite Grey

RAL7016 from RAL Classic collection

Bassalt Grey

Bassalt Grey

RAL7012 from RAL Classic collection

Anodic Silver

Anodic Silver

RAL9006 from RAL Classic collection

White

White

RAL9016 from RAL Classic collection

Dark Bronze

Dark Bronze

RAL8019 from RAL Classic collection

Latte

Latte

RAL7006 from RAL Classic collection

Dark Aluminium

Dark Aluminium

RAL9007 from RAL Classic collection

Cable Length

For custom cable length contact factory.

Required

6ft

6ft

H07RN-F 4 x 1.5mm2 flexible rubber cable

Accessories

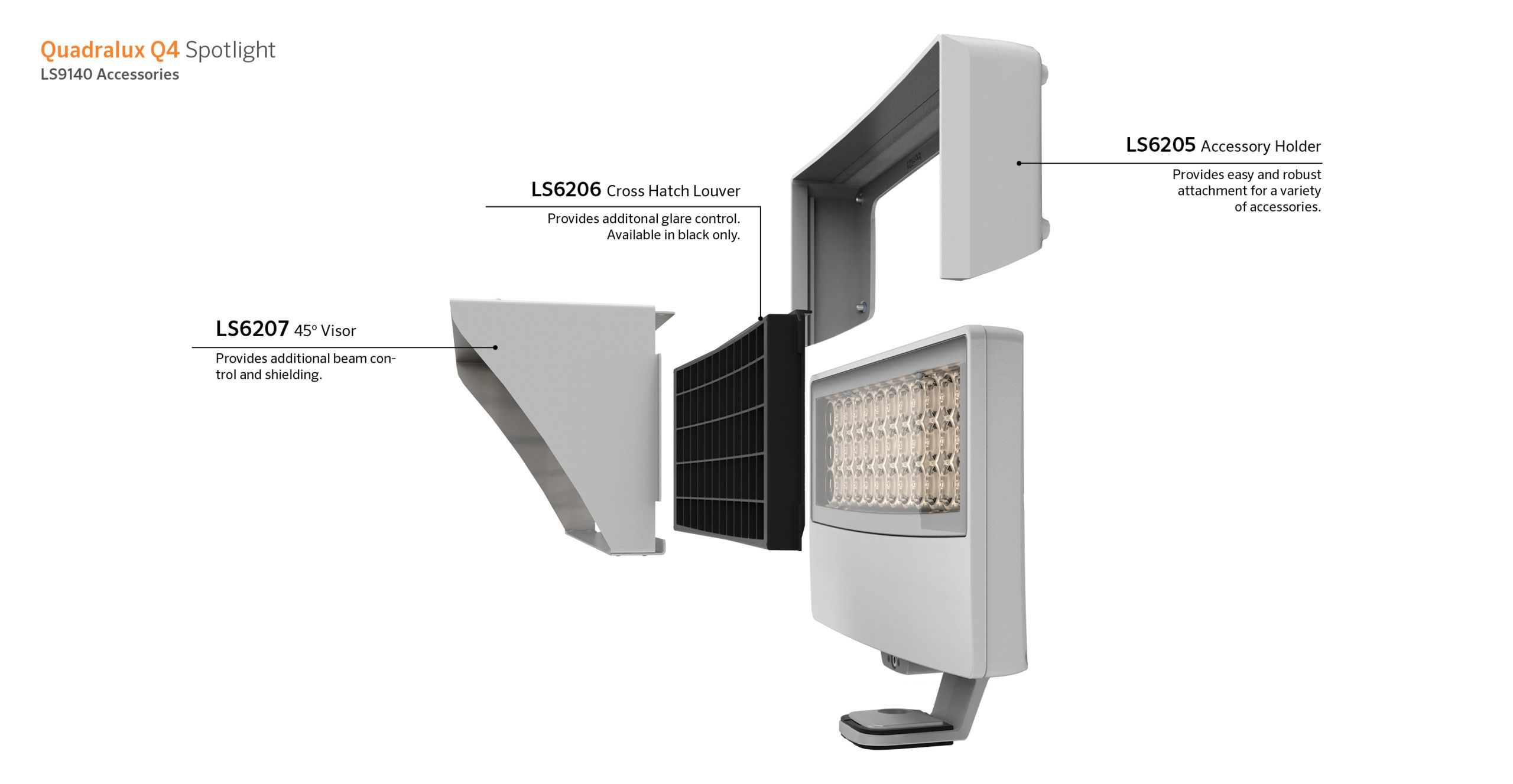

Accessory Holder

Order to match luminaire power coat colour

Accessory Holder

Required for all shielding and glare control accessories

Louvre

Cross Hatch Louvre

Cross Hatch Louvre

Requires Accessory Holder

Shielding

Order to match luminaire power coat colour

45° Visor

Custom visors available on request

Mounting & Installation

Order to match luminaire power coat colour

4.0" Junction Box Adapter

4.0" Junction Box Adapter

Includes Surface Mounting Kit

3.0" Pole Clamp

3.0" Pole Clamp

4.0" Pole Clamp

4.0" Pole Clamp

4.5" Pole Clamp

4.5" Pole Clamp

LS6304

5.0" Pole Clamp

5.0" Pole Clamp

2 3/8" x 4.0" Tenon Adapter

2 3/8" x 4.0" Tenon Adapter

3.5" x 6.0" Tenon Adapter

3.5" x 6.0" Tenon Adapter

Leader Cables

Custom lengths are available on request to a maximum of (100ft / 30m)

Leader Cable - 33ft (10m)

Leader Cable - 33ft (10m)

Supplied with an IP68 connector to pair with the luminaire

Jumper Cables

Custom lengths are available on request to a maximum of (100ft / 30m)

Jumper Cable - 1ft (0.3m)

Jumper Cable - 1ft (0.3m)

Supplied with IP68 connectors for 1ft (0.3m) fixture gap spacing

Jumper Cable - 2ft (0.6m)

Jumper Cable - 2ft (0.6m)

Supplied with IP68 connectors for 2ft (0.6m) fixture gap spacing

Jumper Cable -  4ft (1.2m)

Jumper Cable - 4ft (1.2m)

Supplied with IP68 connectors for 4ft (1.2m) fixture gap spacing

Jumper Cable - 10ft (3m)

Jumper Cable - 10ft (3m)

Supplied with IP68 connectors for 10ft (3m) fixture gap spacing

Terminators

Terminator

Terminator

Used to terminate an IP68 connectorised circuit

Terminator

Used to terminate a hard-wired circuit

Cable Joints

Consult factory for circuit limitations

Y Joint

Y Joint

Used to split an IP68 connectorised circuit
