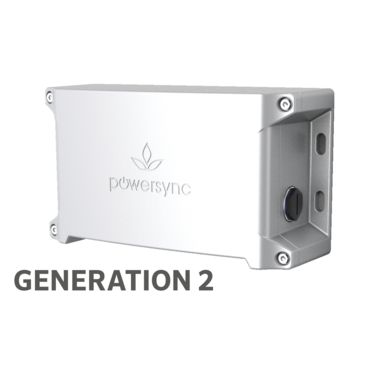

Data Injector PS4

PS
LS6540
Integrated power and data to integrate seamlessly with Lumascape's intelligent light fixtures
Configure this product

Product Overview

Combines the convenience of standard wiring methods to translate control signals into a digital format that can be transmitted over standard copper wire. This allows highly granular addressing and high-speed digital control of every luminaire, using only four wires. The PowerSync™ Data Injector accepts a growing list of standard protocols (0-10V, DMX / RDM), for simple integration with a wide selection of control systems using these industry standard protocols.

Specifications

Features

Power Consumption < 5 W Connected Current 16 A Control Interface Lumascape PowerSync™ IP Rating IP66 Compliance CE RCM Download Datasheet

Downloads

Install Guide Download Datasheet

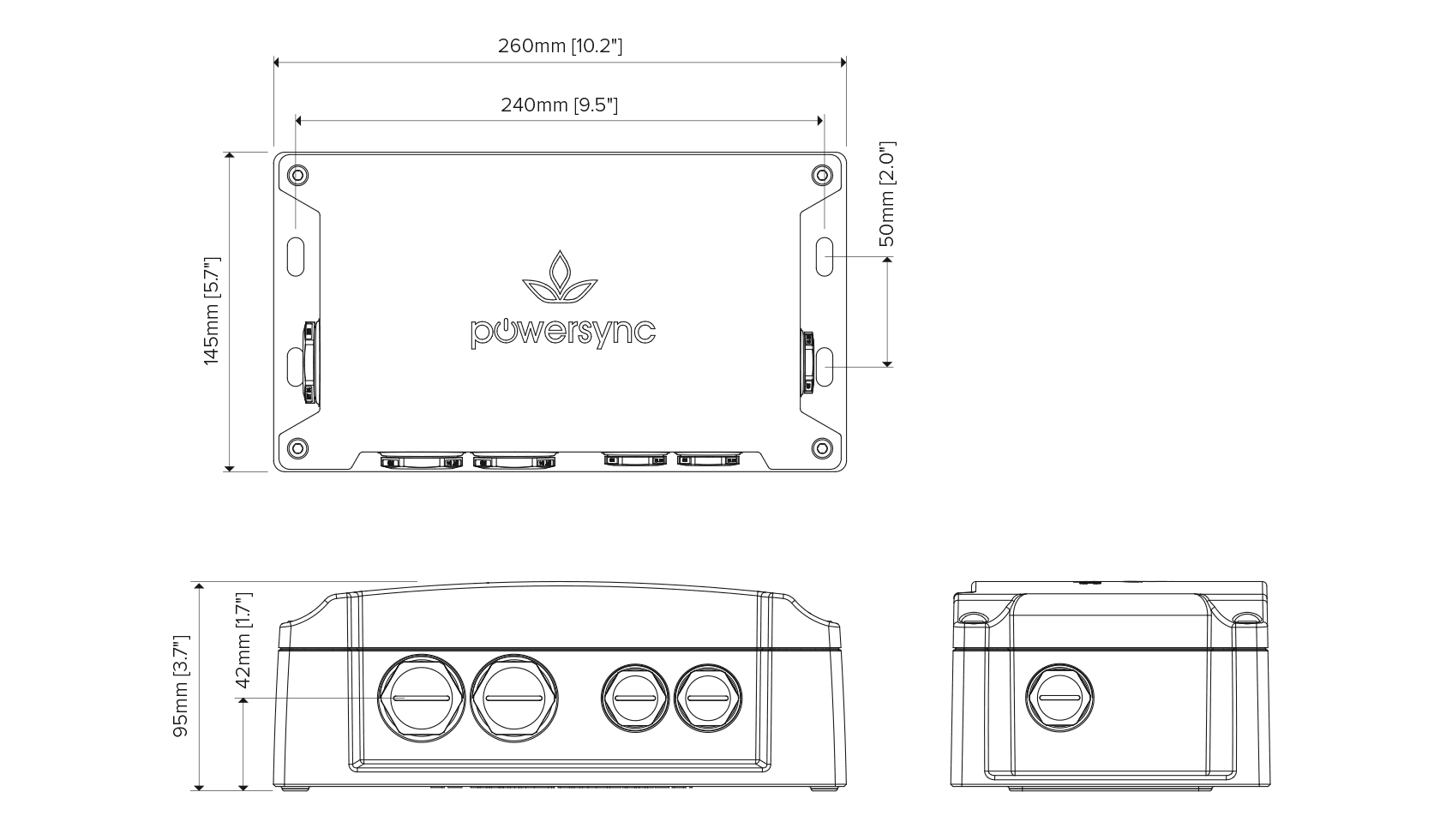

DXF Files LS6540 ZIP (298.85 KB)

Related

Jakarta, Indonesia

Semanggi Interchange
Ambon, Indonesia

Merah Putih Bridge
Singapore

Archifest RGB Pavilion
Oklahoma, United States

Old North Tower, University of Central Oklahoma

Technology

Product Configurator

LS6540 _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Data Injector PS4 below

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

Control

Required

DMX / RDM and 0-10V Input (PD)

DMX / RDM and 0-10V Input (PD)

For controlling PowerSync™ luminaires.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info

Accessories

Leader Cables

4-core cable (1.5 mm² CE) with an IP68 connector to suit PowerSync™ connectorized luminaires.

0.3 m / 1 ft (LS6402C-001)

More info

0.6 m / 2 ft (LS6402C-002)

More info

1 m / 3 ft (LS6402C-003)

More info

2 m / 6 ft (LS6402C-006)

More info

5 m / 16 ft (LS6402C-016)

More info

10 m / 33 ft (LS6402C-033)

More info

20 m / 66 ft (LS6402C-066)

More info

30 m / 98 ft (LS6402C-098)

More info
