Vestalux V2

V2
LS9016

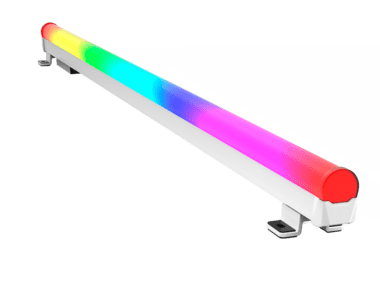

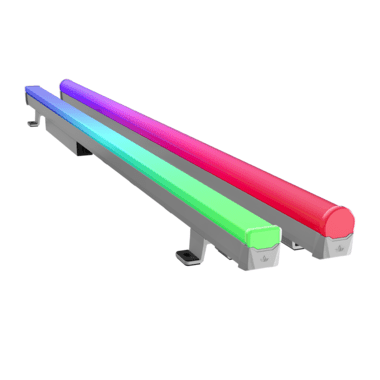

An intelligent, high-performance, direct-view linear outliner with an opal cylinder diffuser
Configure this product

Product Overview

Specifications

Features

Lumen Output 480 lm/ft LED Power 4 W/ft, 6 W/ft Power Consumption 4.5 W/ft, 6.5 W/ft Typical Lifetime > 60,000 hrs Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 IP Rating IP66/IP67 IK Rating IK6 Colour Options Cool White Warm White Red Green Royal Blue RGBA RGBW with Royal Blue Tunable White Download Datasheet

Product Configurator

Customise Vestalux V2 below

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

4 W/ft (04D)

6 W/ft (06D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (RBL)

Single Colour (RBL)

Royal Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Double entry (63)

Double entry (63)

Flexible cable for connectorised installations, includes MicroAntileach

Optics

Required

Direct View - Opal Cylinder (DC)

Mounting

Required

Adjustable Bracket (A)

Adjustable Bracket (A)

Fixed Bracket (B)

Fixed Bracket (B)

Input Voltage

Required

30 - 48 Vdc (07)

30 - 48 Vdc (07)

Low Voltage

Control

Required

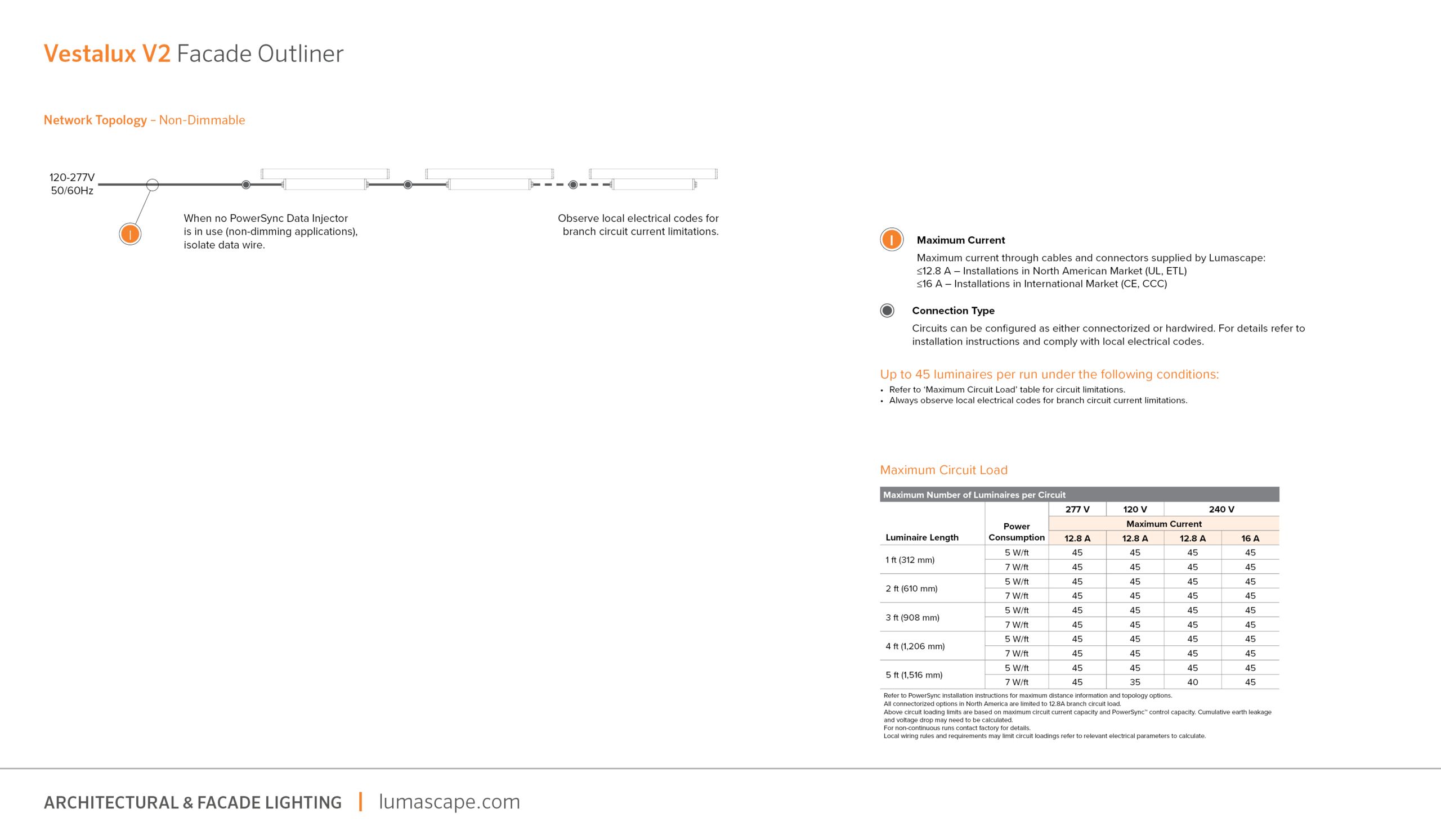

Non dimmable (ND)

For single colour, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

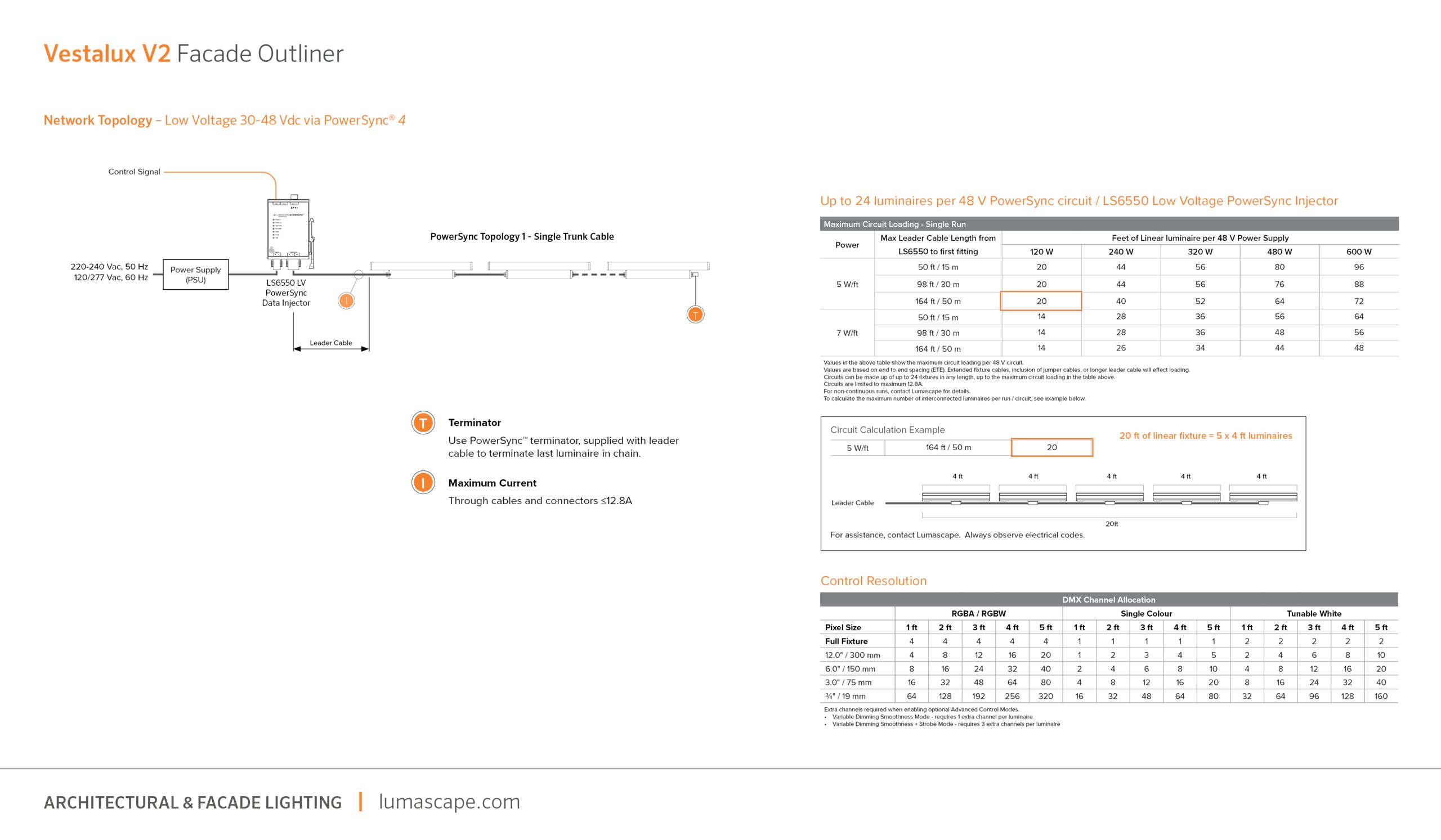

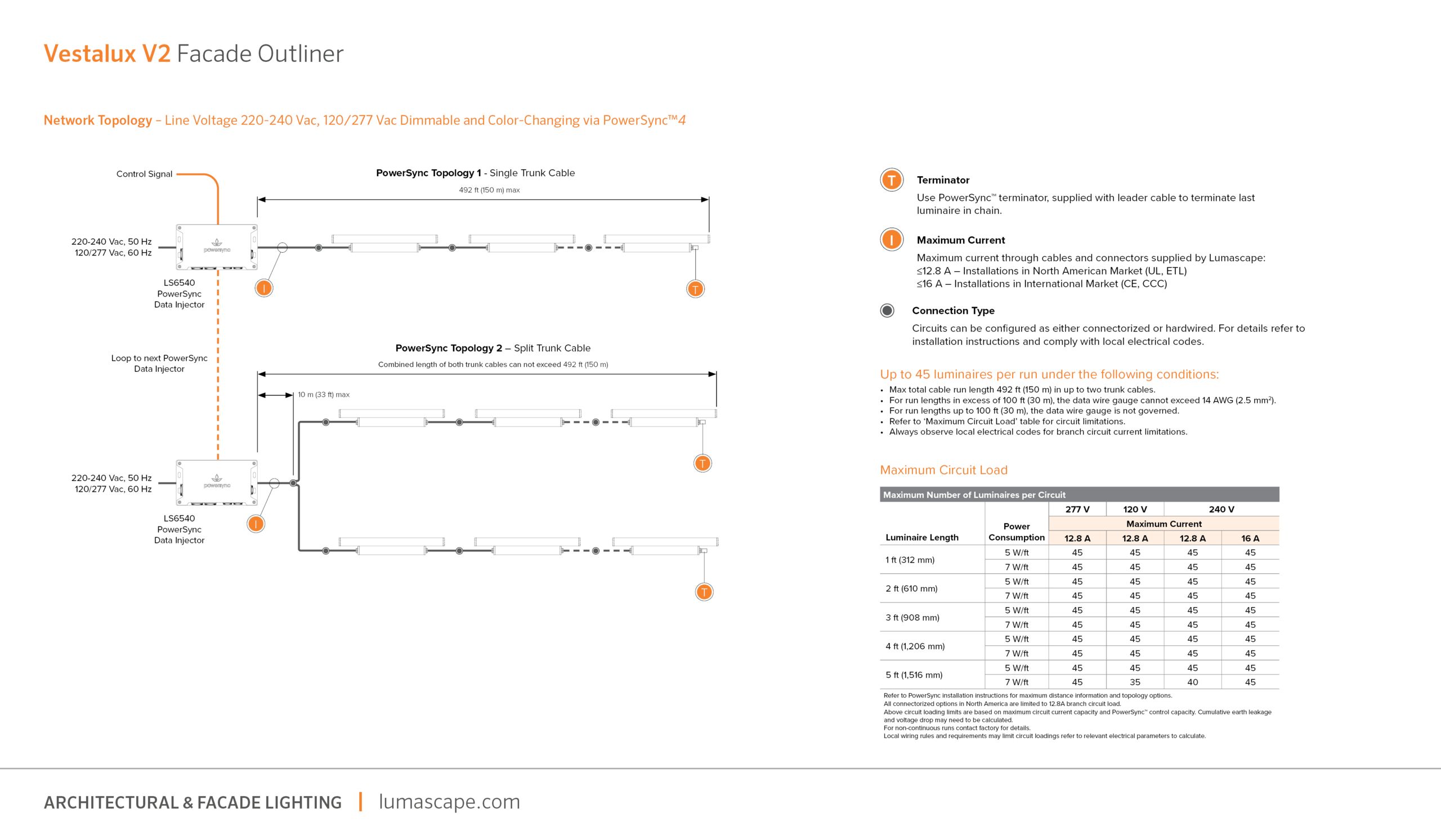

Required for all dimming and colour changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required - order separately.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Anodised Clear (AC)

Anodised Clear (AC)

Anodised clear finish

Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info

Luminaire Gap

Required

End-To-End (000)

Luminaire is configured for end-to-end spacing

0.3 m / 1 ft Gap (001)

Configured for 1 ft (305 mm) spacing

0.6 m / 2 ft Gap (002)

Luminaire gap of 2 ft (610 mm) spacing

0.9 m / 3 ft Gap (003)

Configured for 3 ft (915 mm) spacing

1.8 m / 6 ft Gap (006)

Configured for 6 ft (1,800 mm) spacing
