Leader Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) - LS6426

For Connection Type 63 in CE and UL installations
Configure this product

Product Overview

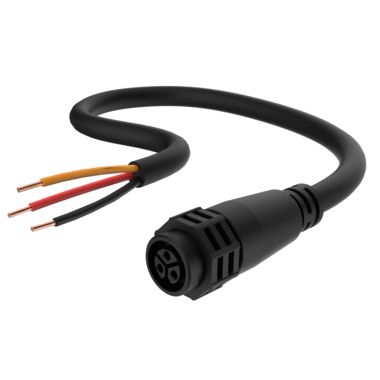

3-core 16 AWG (1.5mm²) cable. Compatible with all luminaires with Type 63 connectorized supply cable option. Supplied fitted with an IP68 connector for pairing with the first connectorized luminaire in a Powersync™, Low Voltage circuit. Comes complete with a matching End of Circuit, Powersync™4, extra low voltage terminator plug.

Note:  Select the corresponding cable type according to the integrated controls of the chosen luminaire. Contact Lumascape for more information.

Suitable for use with
LS9010 Linealux L1 Linear Facade
LS9015 Vestalux V1 Linear Facade
LS9016 Vestalux V2 Linear Facade
LS9260 Faisca F6 Marker Light



Product Configurator

LS6426 _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Leader Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) below

Control Type

Select the corresponding cable type according to the integrated controls of the chosen luminaire.

Required

Non-Dimmable (ND)

4-core cable

PowerSync (PS)

4-core cable

Cable Length

Leader Cable Extra Low Voltage Powersync™ 16AWG (1.5mm²) for use in CE and UL installations.

Required

3 m / 10 ft (010)

5 m / 16 ft (016)

15 m / 50 ft (050)

15m (50 ft) leader cable

20 m / 66 ft (066)

20 m (66 ft) leader cable

30 m / 98 ft (098)

30 m (98 ft) leader cable
