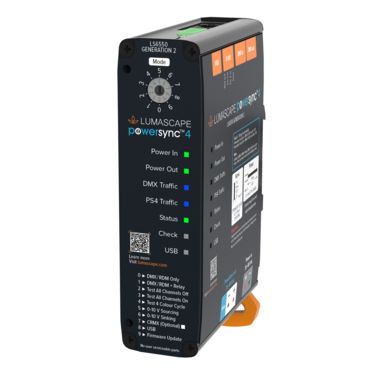

LV Data Injector PS4

PS4
LS6550
Integrated power and data for seamless addressing and control of Lumascape's intelligent luminaires
Add to enquiry

Product Overview

Translates control signals into a digital format, delivering integral power and data to intelligent LED luminaires. This allows highly-granular addressing and high-speed digital control of every luminaire, using only three wires. The data injector is DIN rail mountable designed to be installed in a switchboard, next to the power supply and circuit breaker that is supplying power to the controlled lighting circuit. Accepts a growing list of standard protocols (0-10 V, DMX/RDM) for simple integration with a wide selection of control systems using these industry standard protocols.

Specifications

Features

Unit Power Consumption < 5W Input Voltage Low Voltage 30-48 Vdc Connected Current 16 A Control Protocol DMX/RDM, PWM, 0-10 V IP Rating IP30 Compliance CE Download Datasheet
