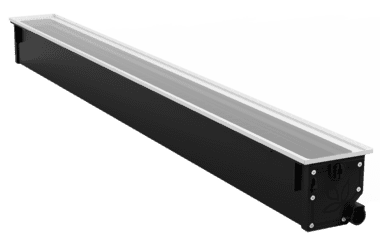

Terraluz TE5

TE5
LS3150
A high-output, linear inground luminaires for architectural and infrastructure applications.
Configure this product

Product Overview

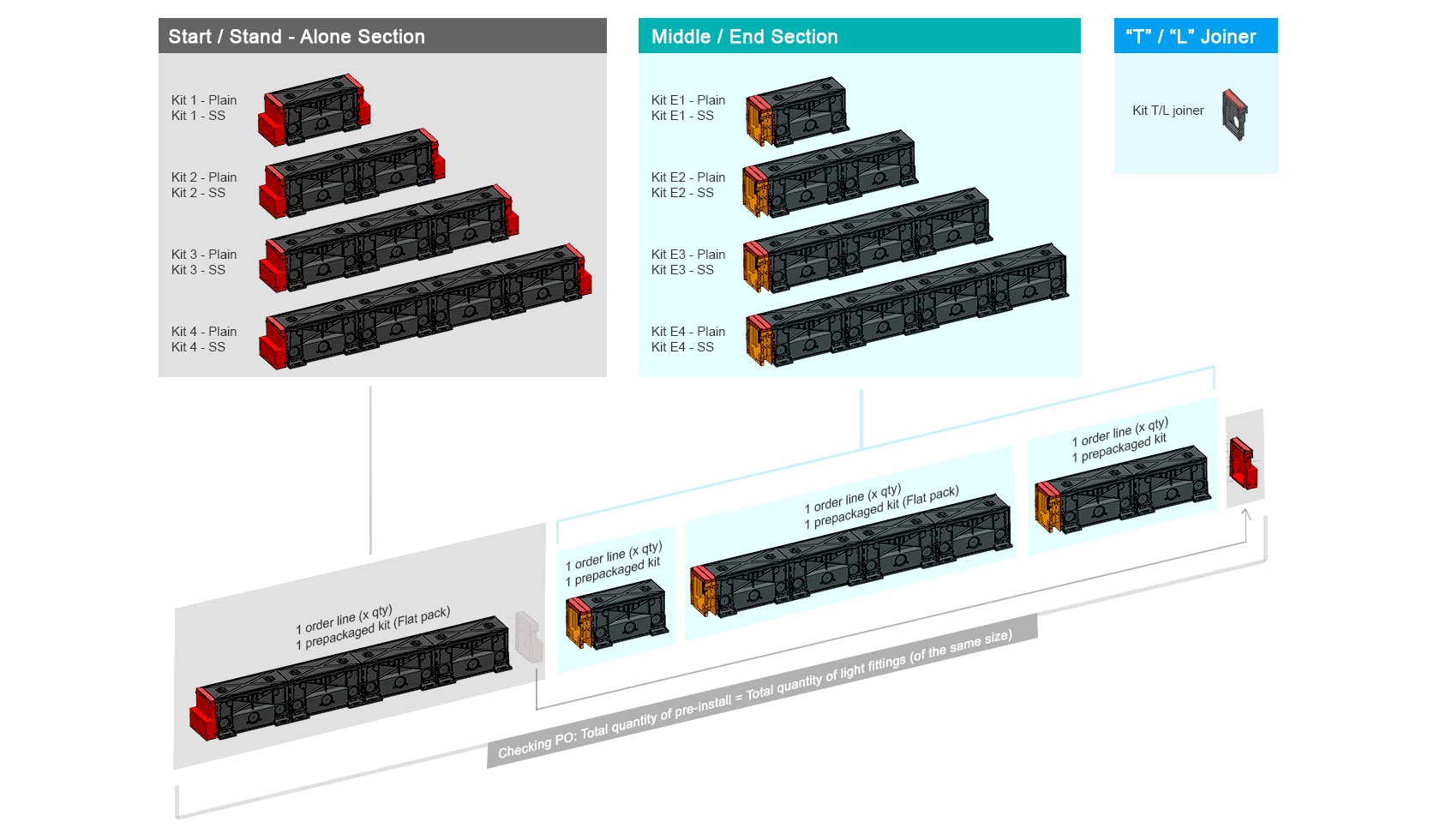

A high output linear inground that combines technology and performance in a stylish linear form factor featuring a bezel-less edge to edge glass slab cover with a sealed ± 15° tilt adjustment. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Available in a range of lengths and combined with unique and flexible T and L junctions enables the luminaire to be installed in multiple orientations including continuous linear. Available in white, colour changing and tunable white light engines.

Specifications

Features

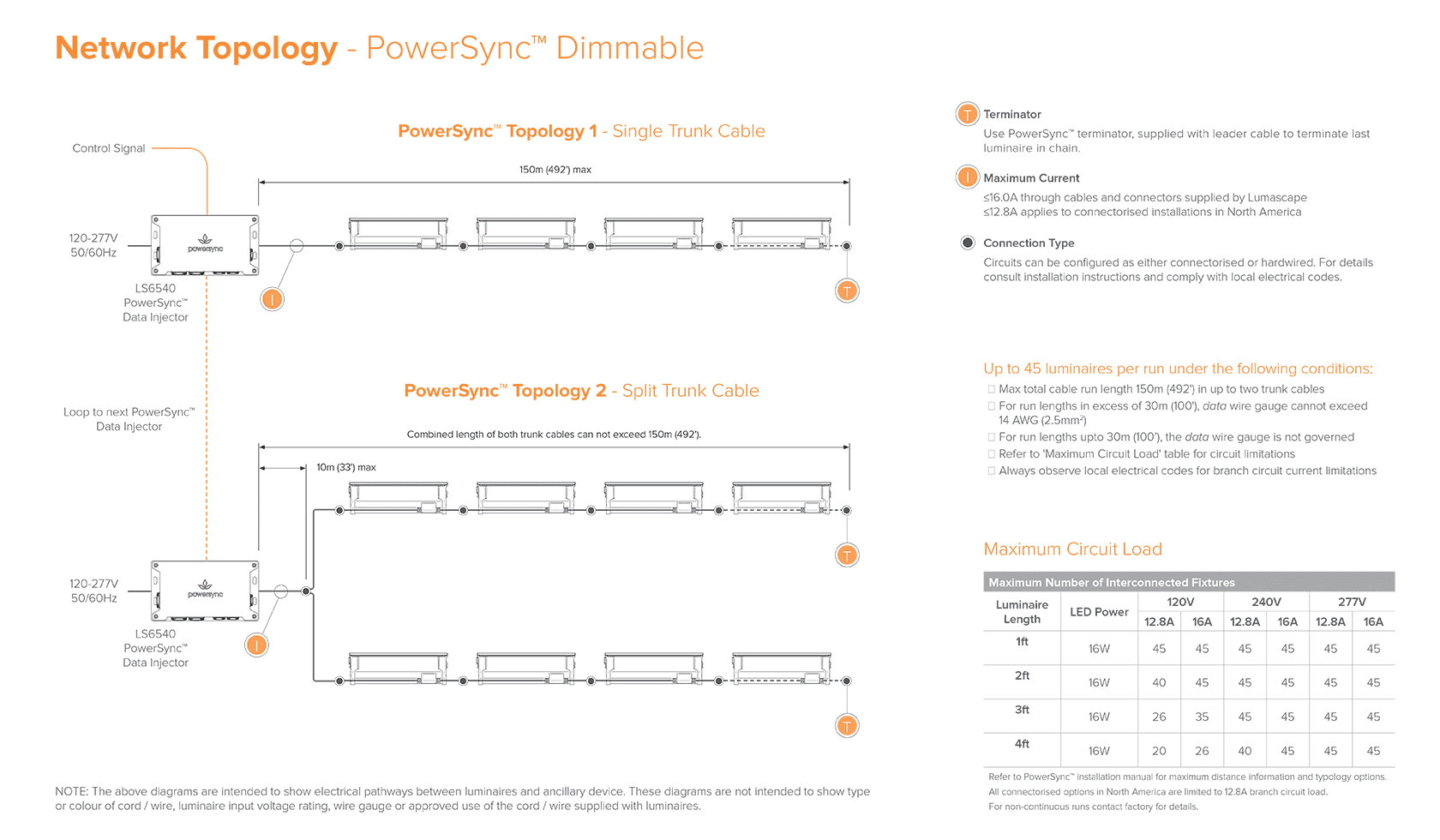

Lumen Output 7,785 lm LED Power 12 W/ft | 16 W/ft Power Consumption 19 W/ft | 24 W/ft Typical Lifetime > 60,000 hours Input Voltage 120-277 Vac, 50/60 Hz Earth Leakage 0.6 mA @ 220 V Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V IP Rating IP66 / IP67 (IP68 Tested) IK Rating IK9 Compliance CE RCM Colour Options Cool White Warm White Red Blue Green RGBW RGBA RGBW with Royal Blue Tunable White Download Datasheet
