Erden E4

Erden E4 - LS3040

An architectural-grade, medium-powered in-ground

Configure this product Features Specifications Accessories

Product Overview

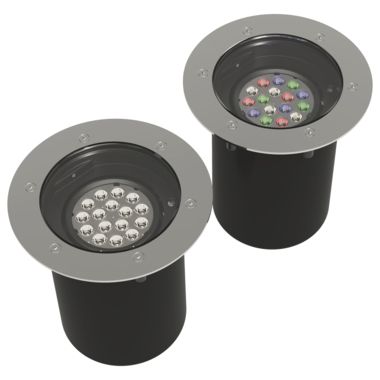

A medium-powered in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols using mains voltage. CoolDrive™ active thermal management engages as internal temperatures increase to keep light output consistent. Only under extreme conditions will the luminaire take control and dim the output gradually and smoothly. Available in white, colour changing and tunable white light engines.

Features

Lumen Output 1,910 lm Power Consumption 20 W Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) Static Load Rating 3,968 lbs (1,800 kg) IP Rating IP68 IK Rating IK9 Compliance

Colour Options

Download Datasheet

Specifications

Accessories


LS644-K	Pre-Installation Kit
LS6247	Snoot Array Louver
LS6248	Honeycomb Louver

Downloads

Download Datasheet

Install Instructions Pre-Install PDF (1.16 M) Install Instructions Direct Burial PDF (945.39 KB) DXF Files LS3040 ZIP (81.49 KB) IES Files LS3040 ZIP (998.86 KB) Product Flyer E4 & E6 PDF (110.85 KB)

Technology

Product Configurator

LS3040 _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden E4 below

Installation Type

Select the installation type you require.

Required

Direct Burial

Pre-Installation

Mounting Collar

Colour System

Single Colour

Colour Changing

Tunable White

Light Engine

Required

16W (16W)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector with Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Armoured Cable (81)

Armoured cable for hard wired installations, includes MicroAntileach and a junction box

Connectorised with Junction Box (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

10°

Narrow (NR)

13°

Narrow Medium (NM)

20°

Medium (ME)

26°

Wide (WD)

47°

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

Housing Depth

Required

Direct Burial (21)

More info

Mounting collar (23)

220mm / 8.7”

More info

Pre-Install Blockout (23)

More info

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Accessories

Pre-Installation Options

Pre-Installation Kit (LS644-K-84)

For use with either mains or low voltage luminaires with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS644-K-87-01)

For use with mains voltage luminaire with Type 87 connection. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info

Mounting Collar (LS644-2)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Mounting Collar luminaire.

More info

Pre-Install Blockout (LS644-K-77-01)

For use with mains voltage. Includes IP68 connector and 1m (3ft) cable. Connection to the branch circuit via junction box (supplied by others) or other approved method.

More info

Shielding & Glare Control

Snoot Array Louver (LS6247)

Provides additional glare control.

Honeycomb Louver (LS6248)

Provides additional glare control.
