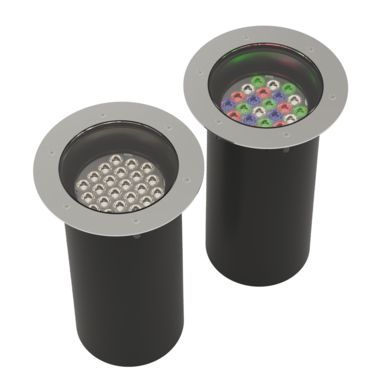

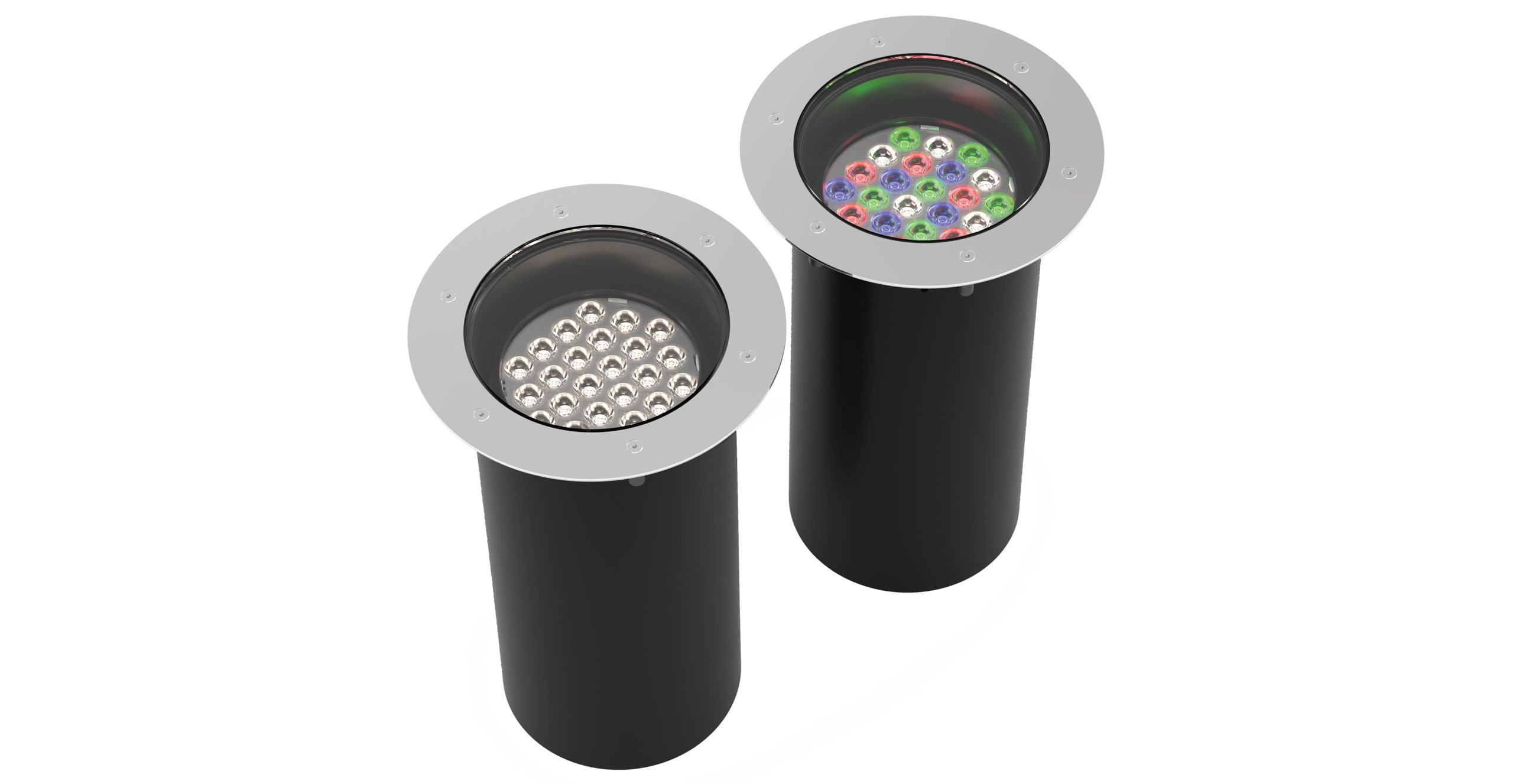

Erden E8

E8
LS3080
An architectural-grade, high-powered inground uplighter
Configure this product

Product Overview

The Erden E8 is a high-powered inground uplighter that combines technology and performance in a modern form factor. Available in white, colour changing and tunable white light engines, the Erden E8 is packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols using mains voltage. CoolDrive™ active thermal management engages as internal temperatures increase to keep light output consistent. Only under extreme conditions will the luminaire take control and dim the output gradually and smoothly. Lighting professionals now have greater creative flexibility with the choice of designer* and standard LED options.

* Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances.

Specifications

Features

Lumen Output 3,340lm Power Consumption 35W Control Protocol PowerSync (DMX/RDM, 0-10V) Diameter 256mm (10.1") IP Rating IP68 IK Rating IK10 Compliance CE RCM Colour Options BIM Cool White Warm White RGBW RGBA Tunable White Download Datasheet

Downloads

Install Guide Download Datasheet
Install Guide (Direct Burial) LS3080 PDF (671.86 KB) Install Guide (Pre-Install Type 85 | 87 | 77) PDF (743.72 KB) BIM Files LS3080LED ZIP (1.78 M) DXF Files LS3080 ZIP (72.46 KB) IES Files LS3080 ZIP (111.34 KB) CAD Details Link

Related

Doha, Qatar

Diwan Al Amir

Technology

Product Configurator

LS3080 _ _ _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Erden E8 below

Installation Type

Select the installation type you require.

Required

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Mounting Collar

Mounting Collar

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

30W (30)

30W (30)

LED Type

Required

Standard (S)

Standard (S)

Ideal for applications where maximum output power and efficacy are most important e.g. Flood and Area lighting

Designer (D)

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important e.g. Grazing and Accent lighting

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Lens

Required

OptiClear™ (A)

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

MicroAntiLeach Cable (84)

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector & Junction Box (87)

IP68 Connector & Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Armoured Cable (81)

Armoured Cable (81)

Armoured cable for hard wired installations, includes MicroAntileach and a junction box

Connectorised (77)

Connectorised (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

6°

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

60°

Linear Horizontal (LH)

Linear Horizontal (LH)

60° x 10°

Linear Vertical (LV)

Linear Vertical (LV)

10° x 60°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

40° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

10° x 40°

Medium Horizontal (MH)

Medium Horizontal (MH)

40° x 20°

Medium Vertical (MV)

Medium Vertical (MV)

20° x 40°

Wide Horizontal (WH)

Wide Horizontal (WH)

60° x 20°

Wide Vertical (WV)

Wide Vertical (WV)

20° x 60°

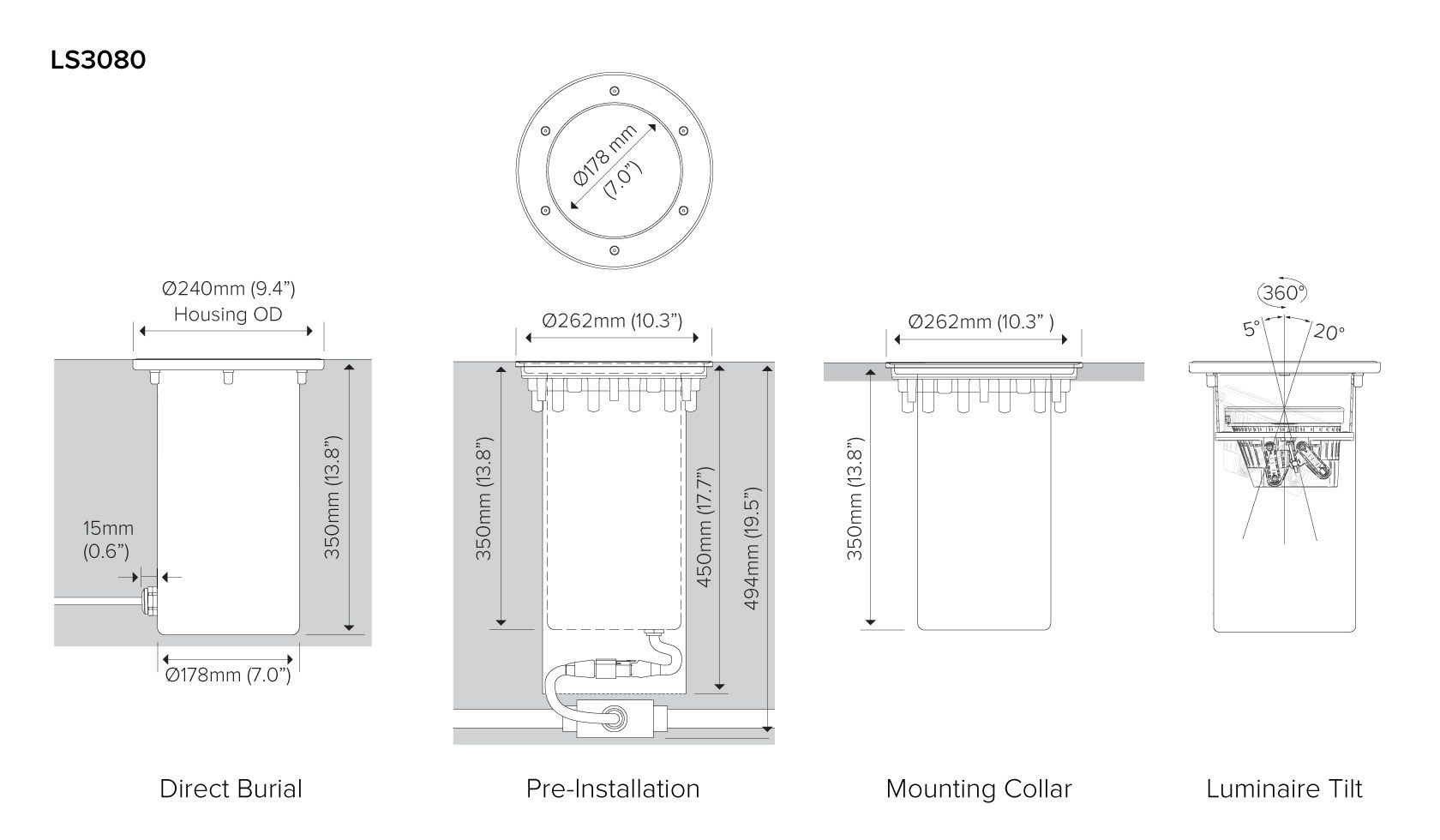

Housing Depth

Required

Mounting collar (24)

350mm / 13.8”

More info

Pre-Install Blockout (24)

450mm / 17.7”

More info

Direct Burial (25)

350mm / 13.8”

More info

Cable Entry

Required

Side (N)

Side (N)

Bottom (Q)

Bottom (Q)

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

Control

Required

Non dimmable (ND)

Non dimmable (ND)

For single colour, non-dimming applications only.

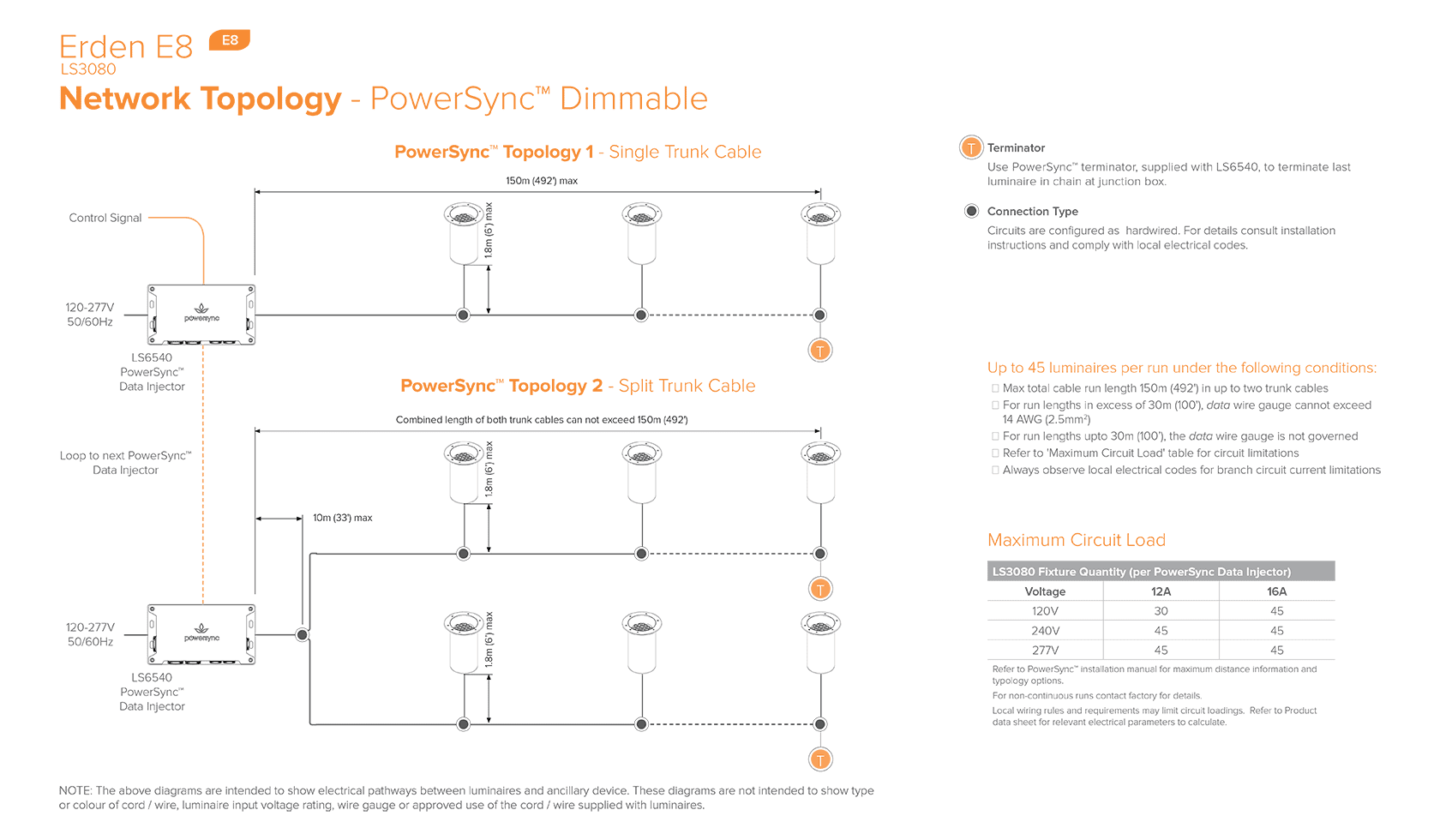

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and colour changing applications. LS6540 Data Injector required - order separately

Accessories

Shielding & Glare Control

Louvre (LS6234)

louvre for LS3080

Lens

Diffusion Media (LS6235-10)

Diffusion Media, 10° Microstructure Film

Diffusion Media (LS6235-20)

Diffusion Media, 20° Microstructure Film

Diffusion Media (LS6235-30)

Diffusion Media, 30° Microstructure Film

Diffusion Media (LS6235-40)

Diffusion Media, 40° Microstructure Film

Pre-Installation Options

Mounting Collar (LS640-2)

Mounting Collar (LS640-2)

For use in decks and tree grates. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Mounting Collar luminaire.

More info
Pre-Installation Kit (LS640-K-84)

Pre-Installation Kit (LS640-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info
Pre-Installation Kit (LS640-K-87)

Pre-Installation Kit (LS640-K-87)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info
Pre-Installation Kit (LS640-K-77-01)

Pre-Installation Kit (LS640-K-77-01)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info
