LS640-K

Pre-Installation Kit for LS3080 and LS343.

Configure this product

Product Overview

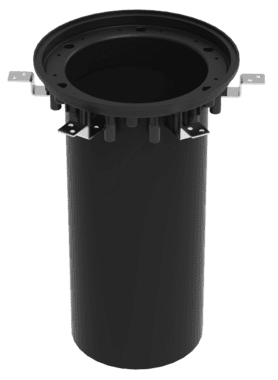

Pre-Installation Kit for LS3080 and LS343.

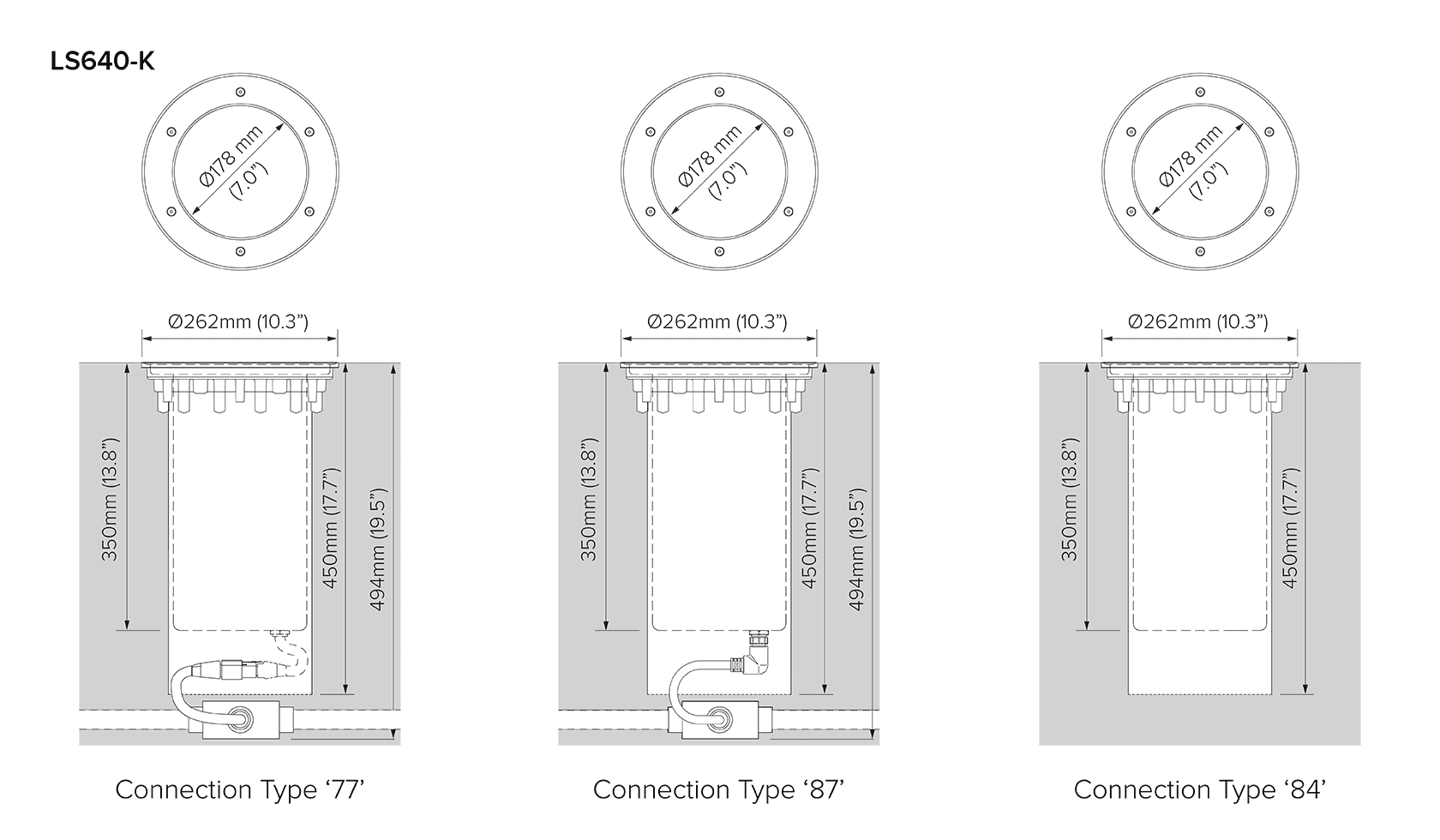

LS640-K-84 Hard wired installations
LS640-K-87 Flexible cable, single entry, for connectorised installations - non dimming
LS640-K-77 Flexible cable, single entry, for connectorised installations - LS3080 only.

Suitable for use with
LS343	Evoca EV1 Inground Luminaire
LS3080	Erden E8 PowerSync Inground Luminaire

Specifications

Product Configurator

LS640-K _ _

Reset to Default Clear Selected Add

Customise Pre Installation Kit below

Inground Type

Select the luminaire to suit the Pre-Installation kit.

LS3080

LS343

Connection Type

Must match connection type of luminaire.

Required

MicroAntiLeach Cable (84)

For connections to the branch circuit via junction box (by others) or other approved method.

IP68 Connector & Junction Box (87)

Flexible cable, single entry, for connectorised installations. Includes 1m MicroAntileach™ cable with IP68 conncector and junction box. Not suitable for colour changing or dimming applications.

Connectorised (77)

Flexible cable for connectorised installations, includes MicroAntileach™ cable. This method allows for a tool free final connection to the luminaire. Suitable for dimmable luminaires.

Input Voltage

Required

110-240V, 50/60Hz (01)

Mains Voltage
