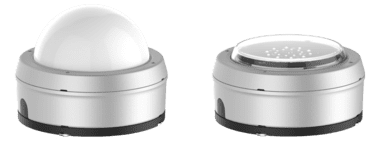

Faisca F6 - LS9260

An intelligent high-powered architectural marker light for architectural and infrastructure applications

Product Overview

The Faisca F6 is an intelligent, ultra high-output marker light with a simple yet elegant design. that allows for easy and rapid installation. The plug and play electrical connections enhance the quick and easy installation process by preventing incorrect connections.

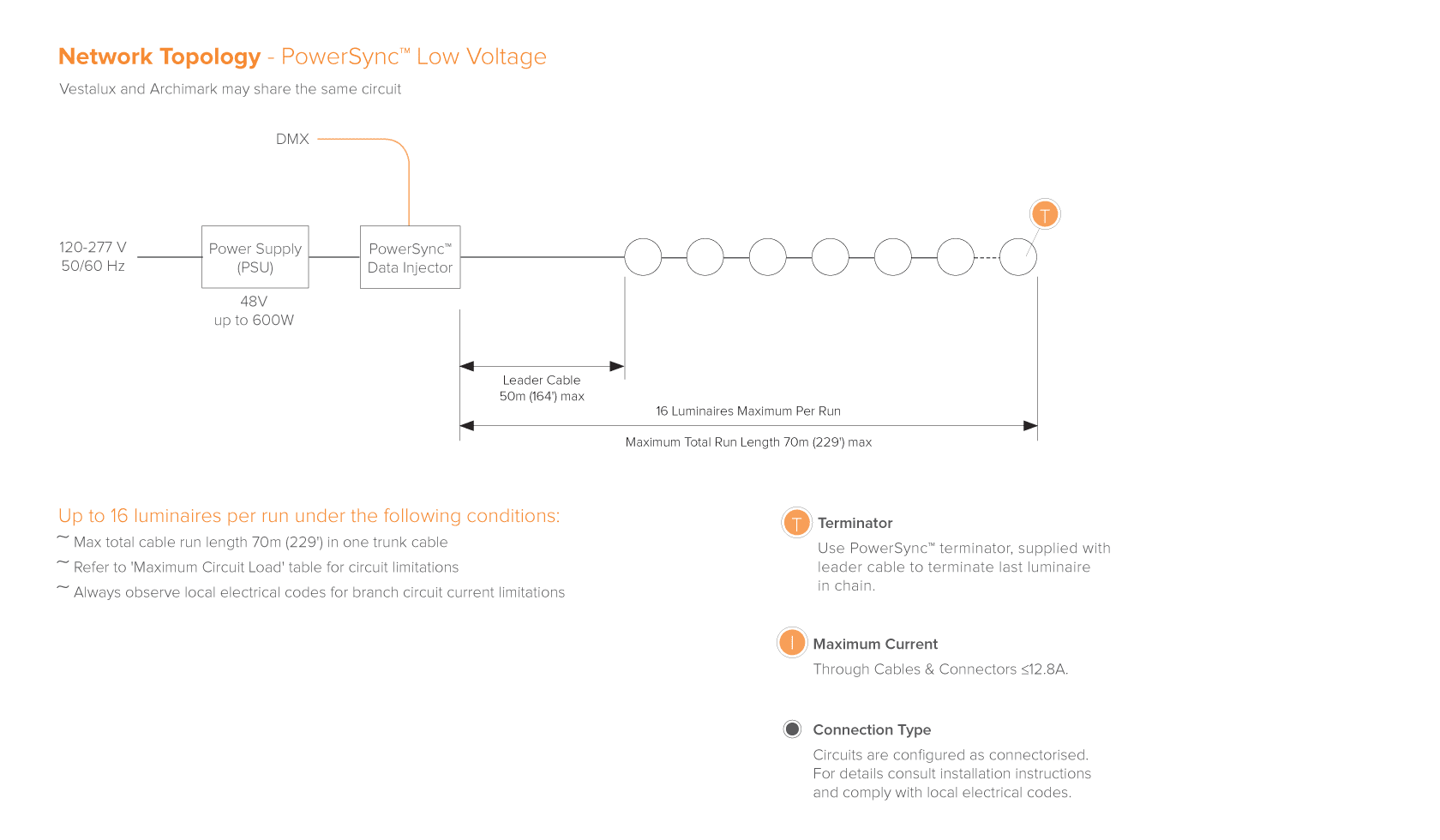

Leader cables of up to 164 ft (50 m) give greater flexibility during installation as power supplies and control equipment can be housed well away from the luminaires.

High-quality LEDs achieve high-intensity beautiful, rich and vibrant colors. From highlighting architectural elements to super-smooth crossfades and color flows.

Features

Lumen Output 2,840 lm LED Power 16 W Power Consumption ≤ 20 W Typical Lifetime (TM21 Reported) > 72,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 72,318 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK10 Compliance ETL - USA & Canada CE UKCA RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

Specifications

Videos

Product Highlights | Faisca F6
Meet the Faisca F6, with a surface brightness of 100,000 cd/m² in RGBW, imagination is the only limit!

Accessories


Control
LS6550 PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only)
LSLED40W-48V DC Power Supply, 48 V, 40 W
LSLED80W-48V DC Power Supply, 48 V, 80W
LSLED120W-48V      DC Power Supply, 48 V, 120 W
LSLED240W-48V DC Power Supply, 48 V, 240 W
LSLED320W-48V DC Power Supply, 48 V, 320 W
LSLED480W-48V DC Power Supply, 48 V, 480 W
LSLED600W-48V DC Power Supply, 48 V, 600 W

Wiring (Connection Type 63 or 67 Only)
LS6426-PS Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-ND Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync

Product Configurator

Customise Faisca F6 below

Light Engine

Required

16 W (16D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Loop in/out (83)

Loop in/out (83)

For connection to the branch circuit via flexible cable, up to 1.8m (6ft) in length. This configuration features loop in/out capability. Requires HARDWIRED connection point at each end of the luminaire.

Single entry (67)

Single entry (67)

Flexible cable for connectorised installations, includes MicroAntileach

Double entry (63)

Double entry (63)

Flexible cable for connectorised installations, includes MicroAntileach

Optics

Required

Flat Lens - Clear (DF)

Flat Lens - Clear (DF)

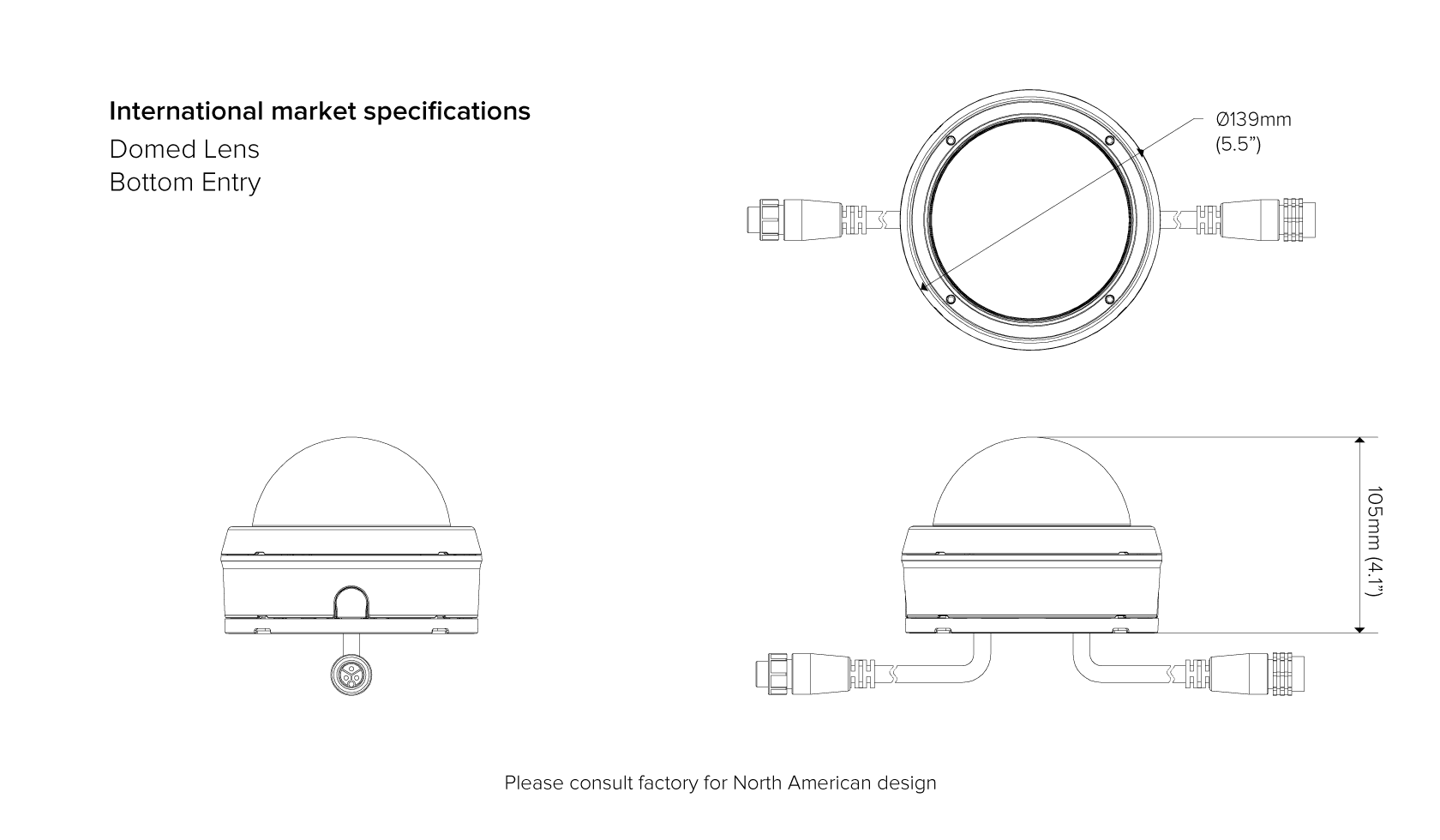

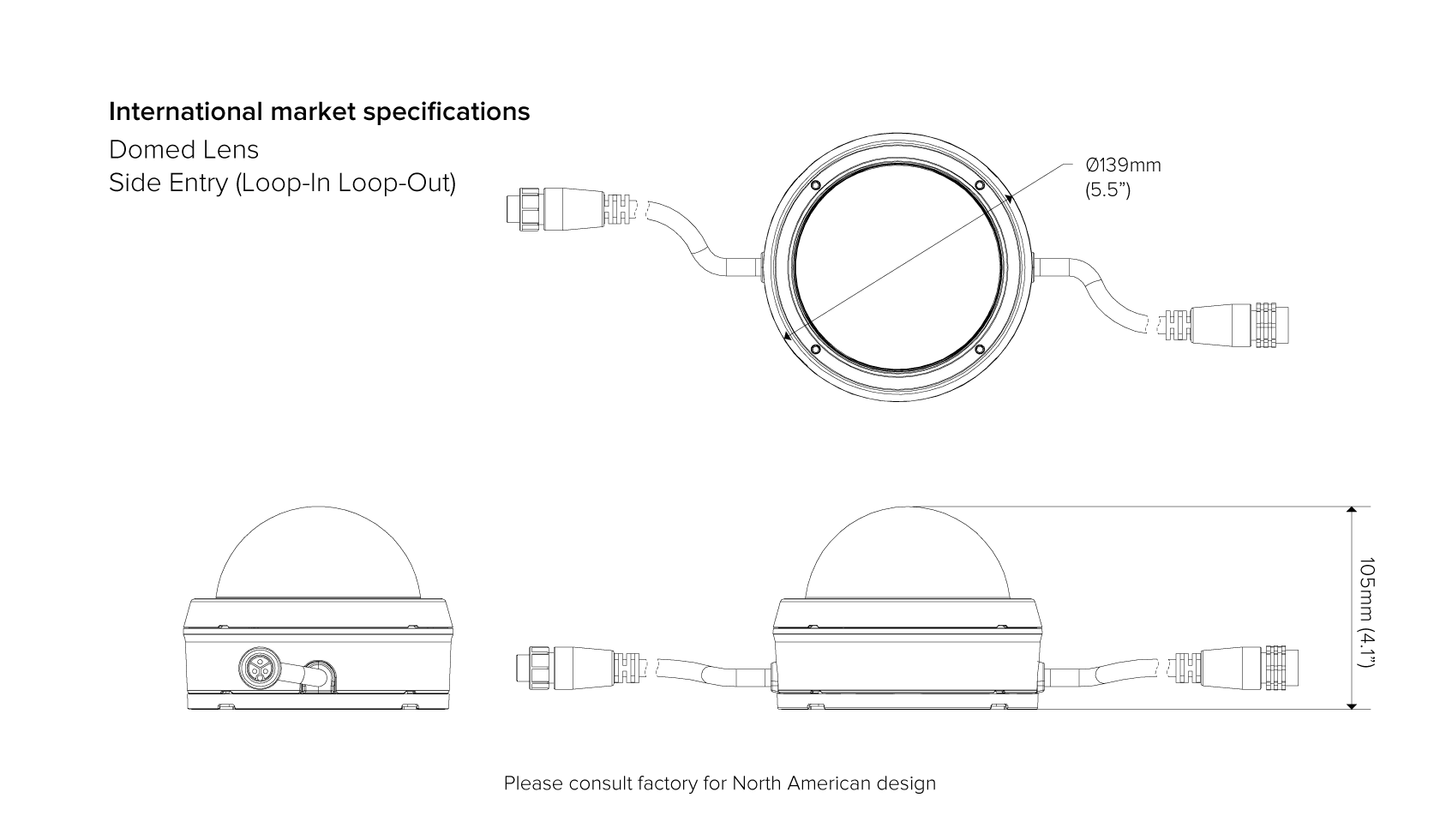

Domed Lens - Diffused (DC)

Domed Lens - Diffused (DC)

Cable Entry

Required

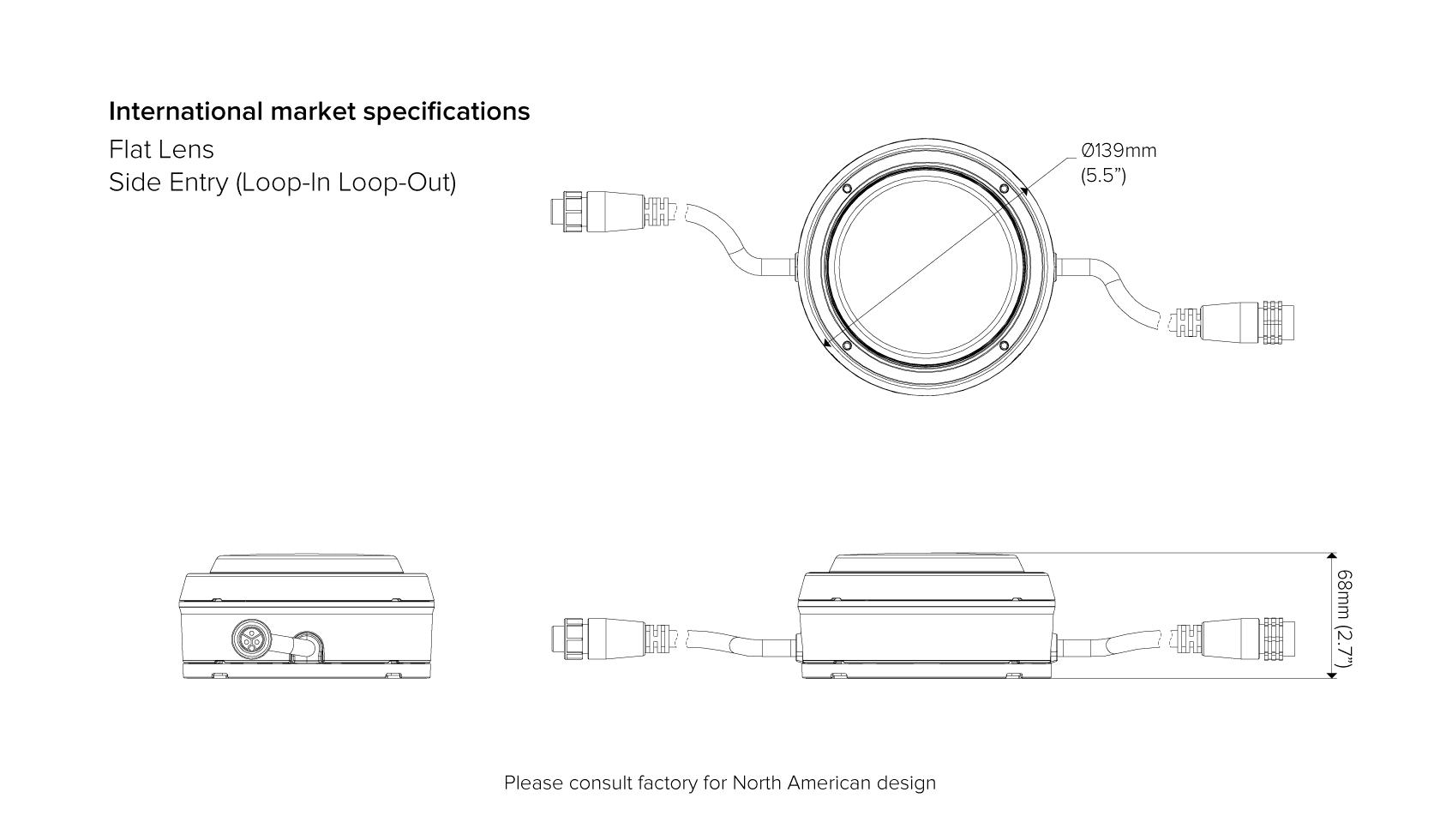

Side (N)

Side (N)

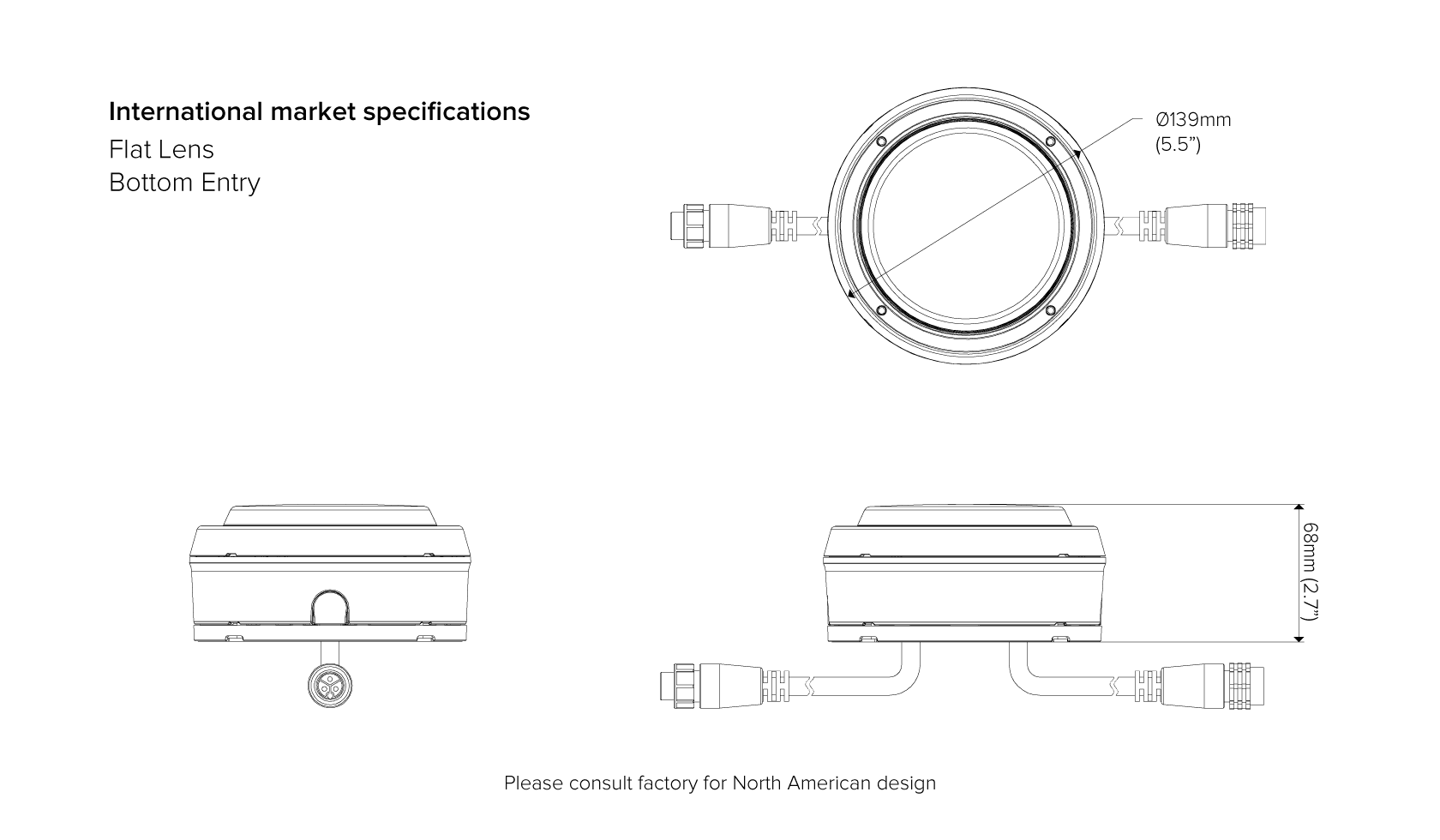

Bottom (Q)

Bottom (Q)

Input Voltage

Required

30 to 48 Vdc (07)

30 to 48 Vdc (07)

Low Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories
