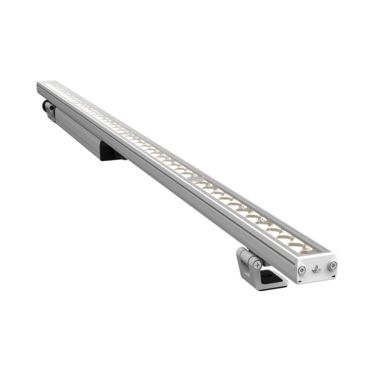

Linealux L3 - LS9030

A medium-output linear graze luminaire for architectural and infrastructure applications.

Product Overview

A compact, high-performance linear grazer luminaire combining technology and performance in a stylish design. Packed with features including EasyGlow™ visual comfort, CoolDrive™ thermal management technologies and MicroAntileach™. The Linealux L3 is controllable in 1 foot segments through the use of
PowerSync™ and allows for highly granular digital control via common protocols. High performance optics provide perfect colour-mixing and colour over angle even in the most challenging of grazing applications.



Lumen Output 1,159 lm/ft Power Consumption 5 | 8 | 12W/ft Typical Lifetime > 60,000 hrs Input Voltage 120-277 V AC, 50/60 Hz Control Interface PowerSync™ Control Protocol DMX / RDM, Artnet (Ethernet Based), PWM, 0-10 V IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK6 Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE RCM Colour Options Very Warm White Warm White Cool White RGB RGBA RGBW Tunable White Download Datasheet




LS6237 External / Slatted Louvre (Black)
LS6238 External Shield / Visor 1-sided
LS6239 External Shield / Visor 3-sided
LS6221-06     6" (152 mm) Stand Off Bracket
LS6221-12 12" (305 mm) Stand Off Bracket

Product Configurator
