Vedi LED VD1

VD1
LS563LED
A compact and versatile inground marker light
Configure this product

Product Overview

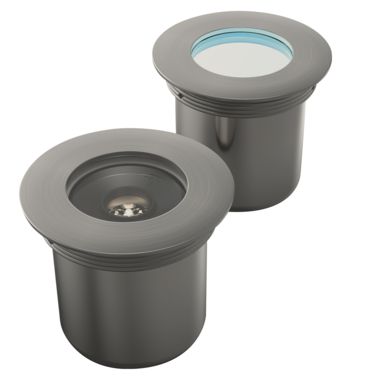

The LS563LED Vedi is a marker light featuring a luminous surface with uniform brightness. A 3W version is also available, suitable for directional applications requiring a beam of light. Constructed from 316 marine grade stainless steel, the luminaire features an ElectroPolishPlus™ finish for enhanced appearance and corrosion protection.

Specifications

Features

Lumen Output 259lm Power Consumption 3.5W Control Protocol PWM (0-10V, DMX) Diameter 9cm (3.5") Static Load Rating 1,100kg (2,425lb) IP Rating IP68 IK Rating IK7 Compliance CE Colour Options BIM Blue Cool White Warm White RGB

Product Configurator

Customise Vedi LED VD1 below

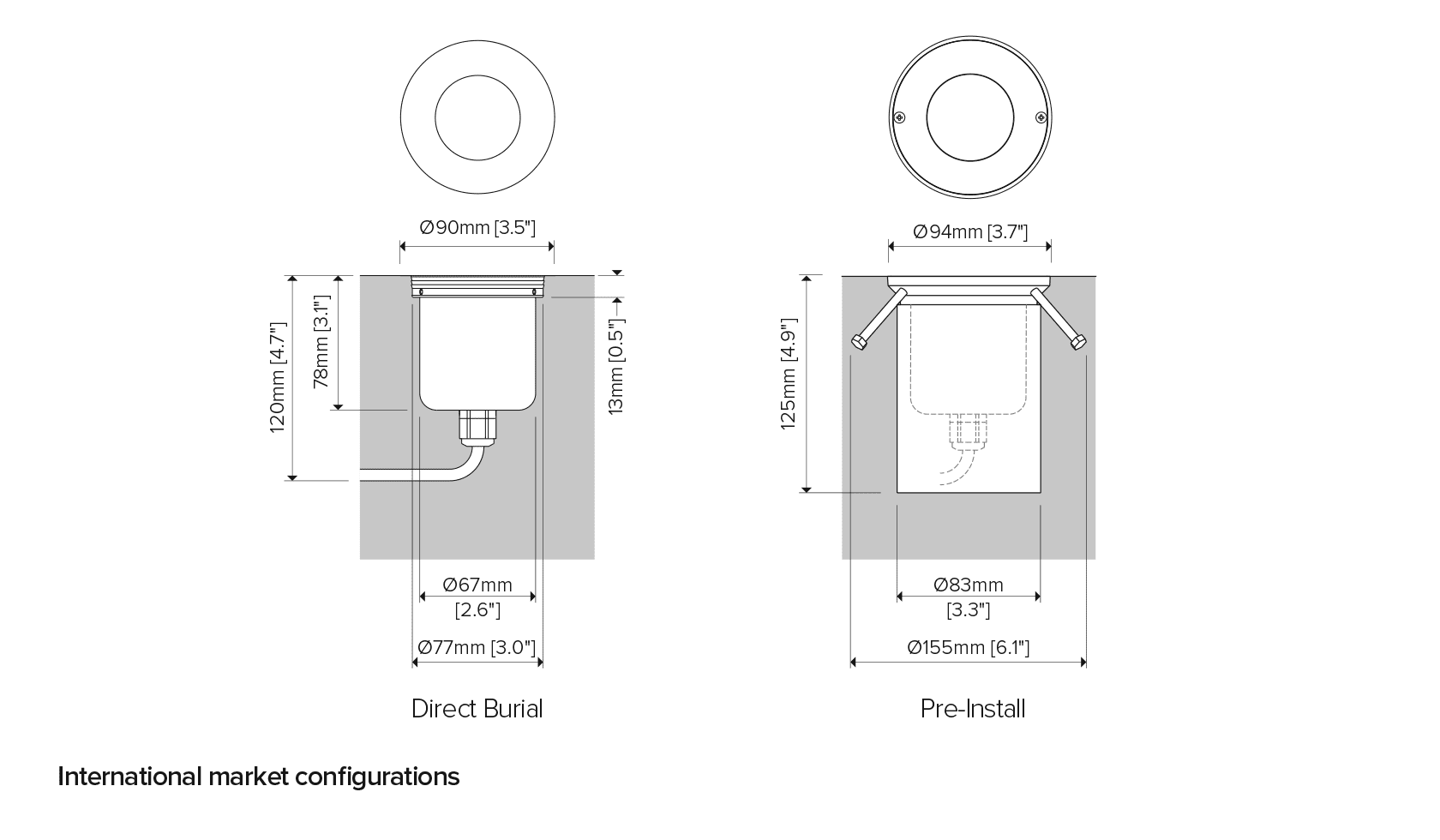

Installation Type

Select the installation type you require.

Required

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Light Engine

Required

1W (1)

1W (1)

3W (3)

3W (3)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Wide (WD)

Wide (WD)

40º

Marker (FL)

Diffused lens

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Accessories

Pre-Installation Options

Pre-Installation Kit (LS698-K)

Pre-Installation Kit (LS698-K)

For use with mains and low voltage. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.
