Via LED VI1

VI1
LS553LED
A compact and versatile side-emitting marker light
Configure this product

Product Overview

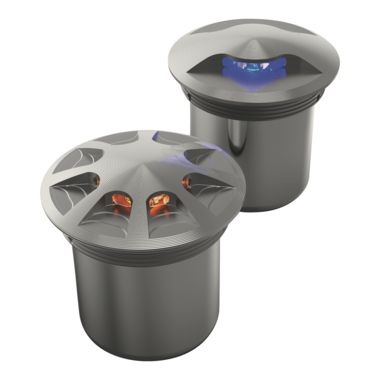

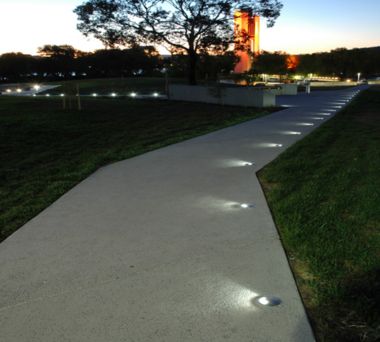

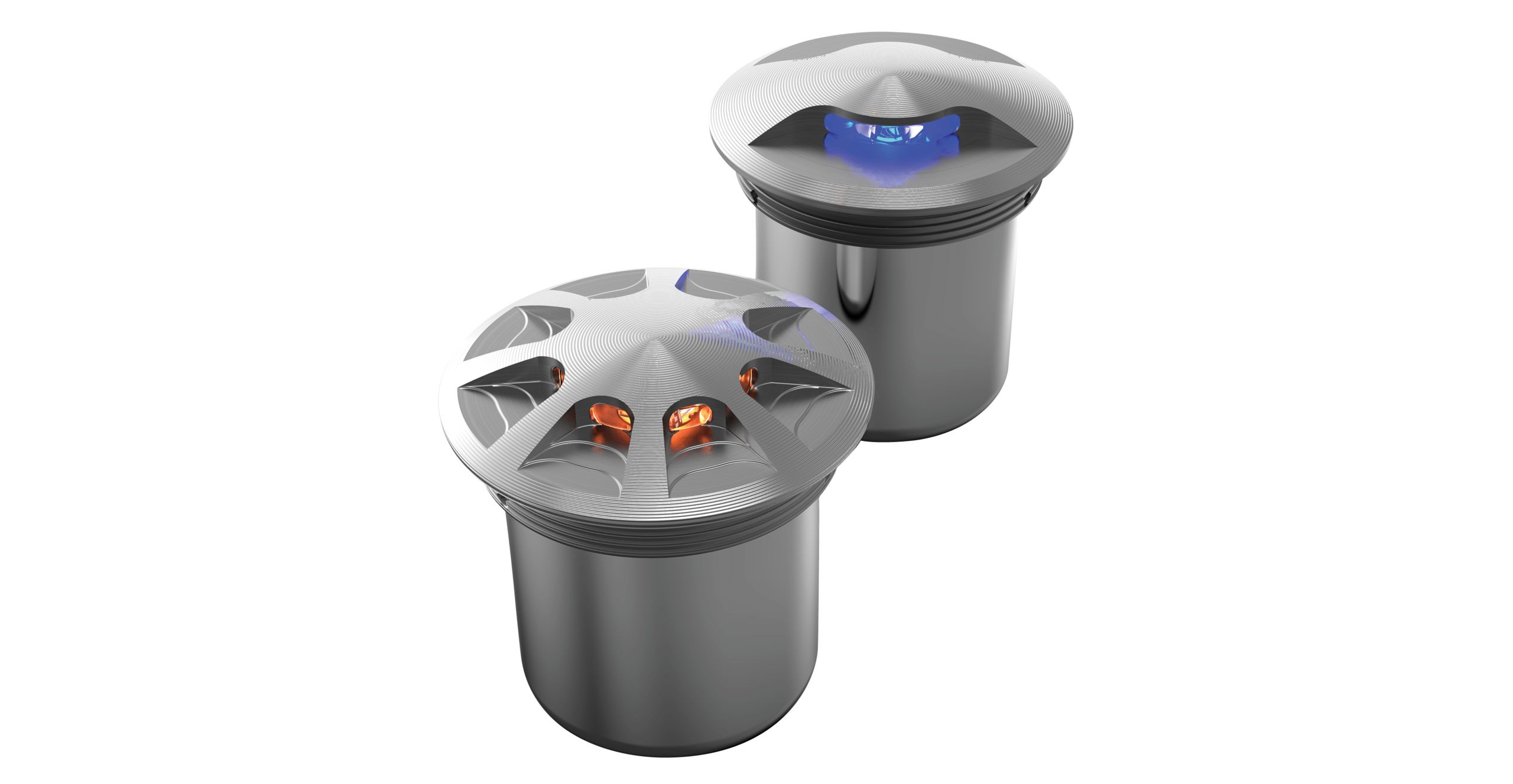

The LS553LED Via is a rugged, side-emitting marker light constructed of 316 marine grade stainless steel. This luminaire is ideal for pathways, pedestrian malls and other public spaces. Some models are also suitable for use in low-speed traffic areas. The construction and technology used in this luminaire ensures a long service life.

Specifications

Features

Power Consumption 2W Control Protocol PWM (0-10V, DMX) Static Load Rating 1,000kg (2,200lb) Diameter 90mm (3.7") IP Rating IP68 IK Rating IK10 for 8 aperture model Compliance CE Colour Options BIM Blue Red Orange Cool White Warm White

Product Configurator

Customise Via LED VI1 below

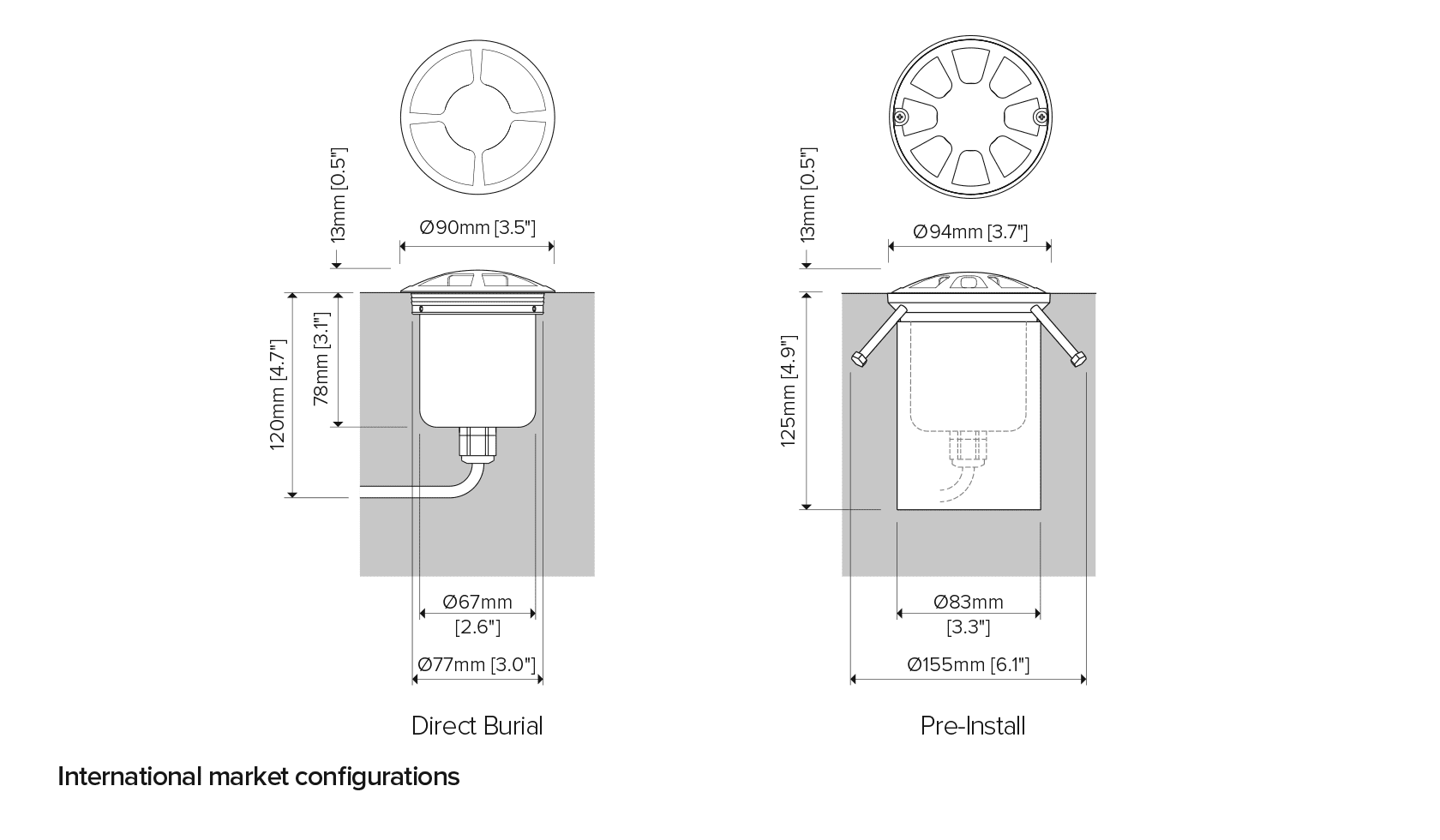

Installation Type

Select the installation type you require.

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Power

Required

1W (1)

1W (1)

2W (2)

2W (2)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

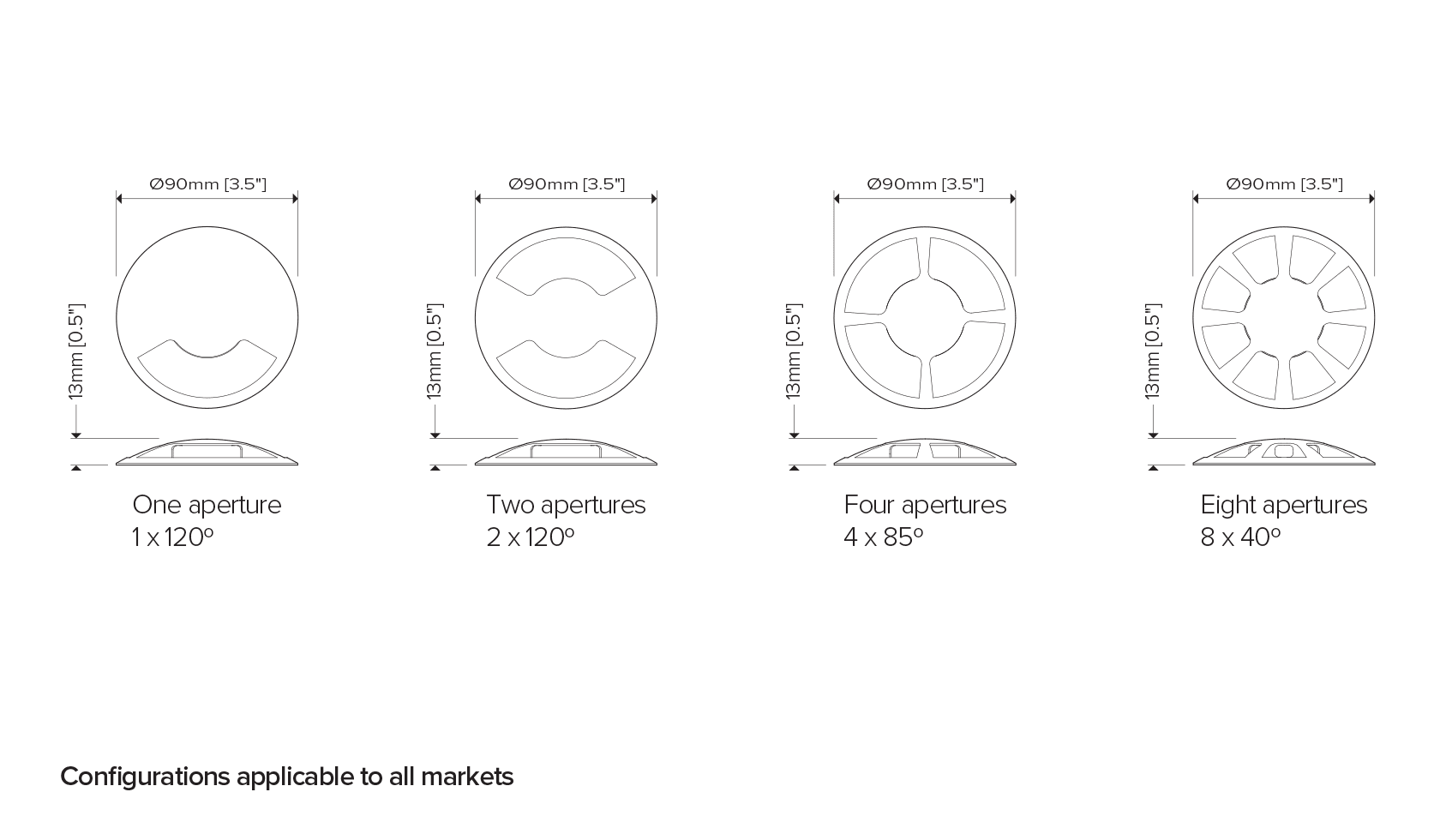

Apertures

Required

One (01)

One (01)

One aperture (1 x 120°)

Two (02)

Two (02)

Two aperture (2 x 120°)

Four (04)

Four (04)

Four aperture (4 x 85°)

Eight (08)

Eight (08)

Eight aperture (8 x 40°)

Installation Type

Required

Pre-installation (23)

Direct Burial (21)

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Accessories

Pre-Installation Options

Pre-Installation Kit (LS698-K)

Pre-Installation Kit (LS698-K)

For use with mains and low voltage. Connection to the branch circuit via junction box (supplied by others) or other approved method.
