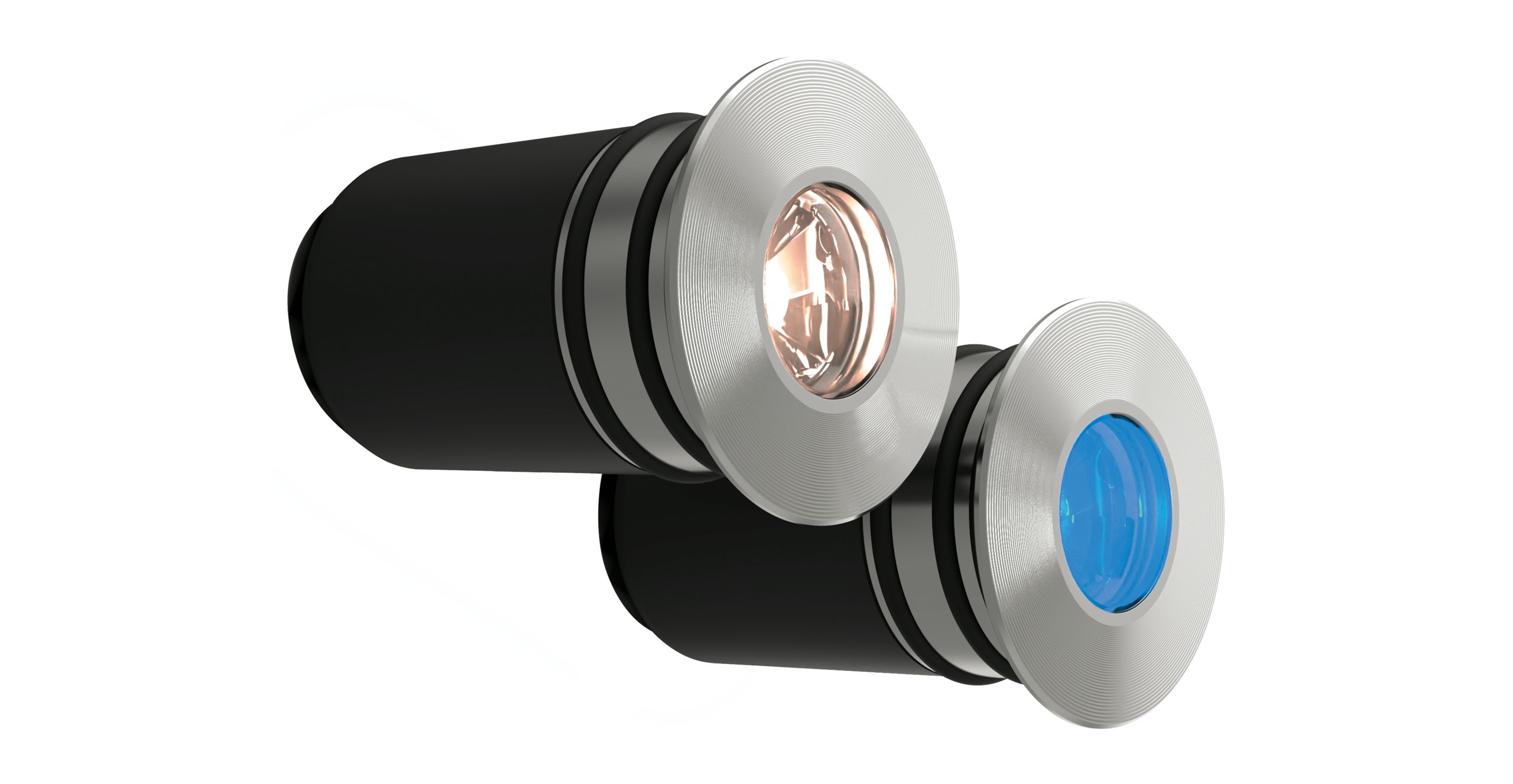

Vedita LED VE1

VE1
LS9401LED

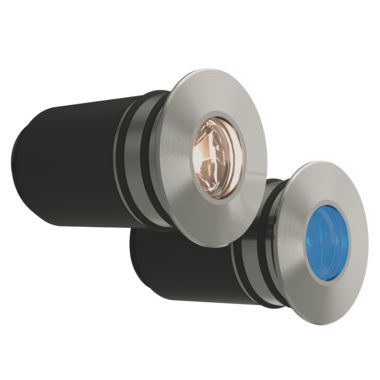

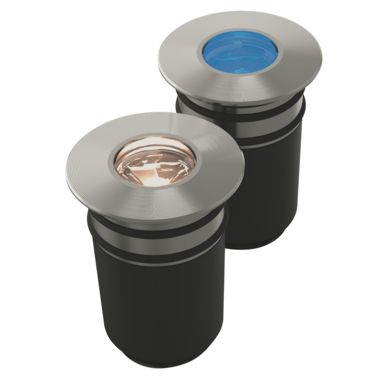

A compact and versatile low-voltage, inground luminaire with pre-installation sleeve
Configure this product

Product Overview

The Inground LS9401LED is very versatile: when high output is required, it can be deployed in its full output 2W configuration; or if a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. This luminaire is supplied with an installation sleeve, which is ideal for landscape installations. Constructed in part from 316 marine grade stainless steel, this luminaire also comes standard with Lumascape proprietary ElectroPolishPlus™ surface treatment.

Specifications

Features

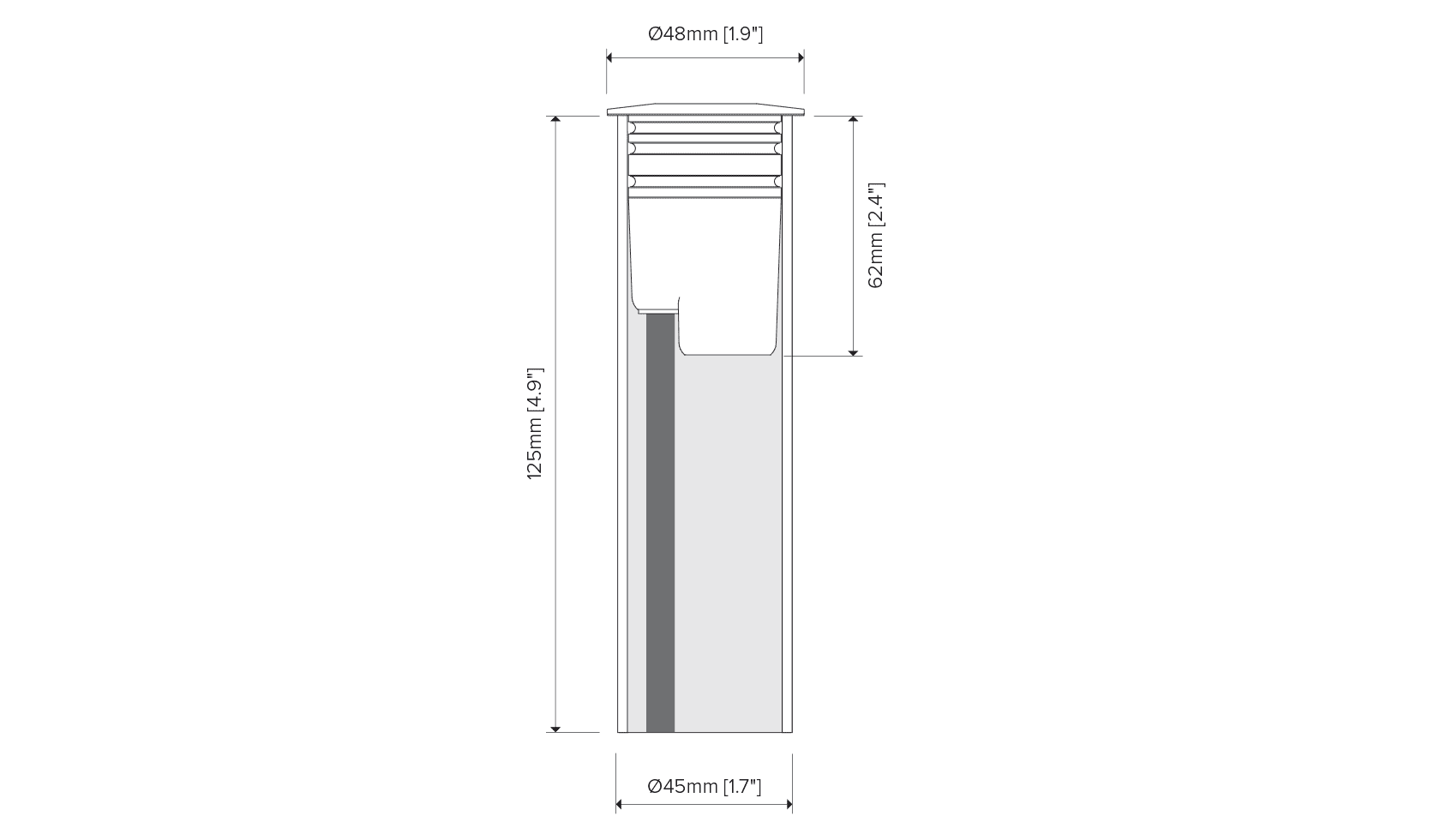

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) Diameter 5cm (2") Static Load Rating 450kg (992lb) IP Rating IP68 IK Rating IK10 Compliance CE Colour Options Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Vedita LED VE1 below

Light Engine

Required

1W (1)

1W (1)

2W (2)

2W (2)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

20°

Wide (WD)

Wide (WD)

30°

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Input Voltage

Required

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Standard (U)

Vertical, 0° tilt

Wall Wash (W)

Not applicable with Flood (FL) beam

Cable Length

Required

2m (02)

2m (02)

4 x 0.5mm2 H05RN-F flexible rubber cable

8m (08)

8m (08)

4 x 0.5mm2 H05RN-F flexible rubber cable

15m (15)

15m (15)

4 x 0.5mm2 H05RN-F flexible rubber cable

20m (20)

20m (20)

4 x 0.5mm2 H05RN-F flexible rubber cable

25m (25)

25m (25)

4 x 0.5mm2 H05RN-F flexible rubber cable
