Evoca LED EV7

EV7
LS793LED

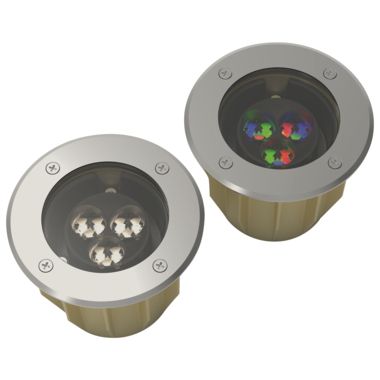

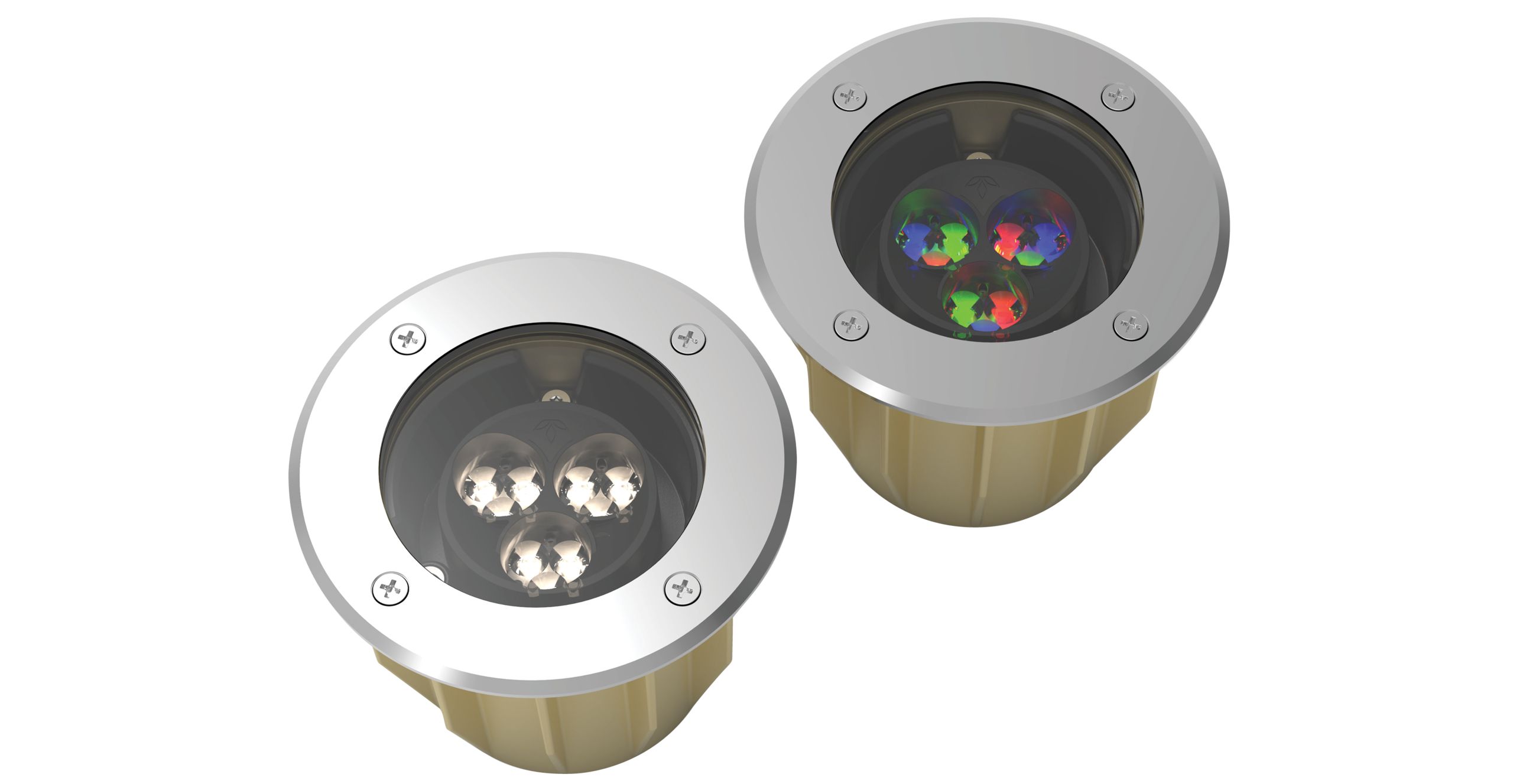

A compact, shallow-depth inground luminaire ideal for applications which require a low-profile appearance
Configure this product

Product Overview

The LS793LED is a compact, shallow-depth inground luminaire for applications which require a low-profile appearance, and features a 6W LED module with output similar to a 50W MR16. The compact size allows the luminaire to be used without appearing to dominate the architecture or landscape. For better control of light, a factory set tilt option is available, as well as dimming for single colour via Lumascape d5 driver technology, and RGB control via Lumascape 3-channel internal low voltage driver. Includes 3m (9ft) of MicroAnti-Leach cable.

Specifications

Features

Lumen Output 550lm Power Consumption 7.2W Control Protocol PWM (0-10V, DMX, DALI) Diameter 112mm (4.4") Static Load Rating 750kg (1,650lb) IP Rating IK68 IK Rating IK7 Compliance CE Colour Options BIM Blue Red Orange Cool White Warm White RGB

Product Configurator

Customise Evoca LED EV7 below

Light Engine

Required

3W (3)

3W (3)

6W (6)

6W (6)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Wide (WD)

Wide (WD)

40º

Linear Horizontal (LH)

Linear Horizontal (LH)

40° x 20°

Linear Vertical (LV)

Linear Vertical (LV)

20° x 40°

Cable Entry

Required

Side (N)

Side (N)

Bottom (Q)

Bottom (Q)

Input Voltage

Required

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Tilt 0 ̊   (U)

Tilt 0 ̊ (U)

Tilt 15° (W)

Tilt 15° (W)

Accessories

Pre-Installation Options

Pre-installation Kit (LS6137)

Pre-installation Kit (LS6137)

Pre-installation blockout for LS793 series luminaire
