Vedita LED VE2

VE2
LS9402LED
A versatile low-voltage stake mount luminaire with spike
Configure this product

Product Overview

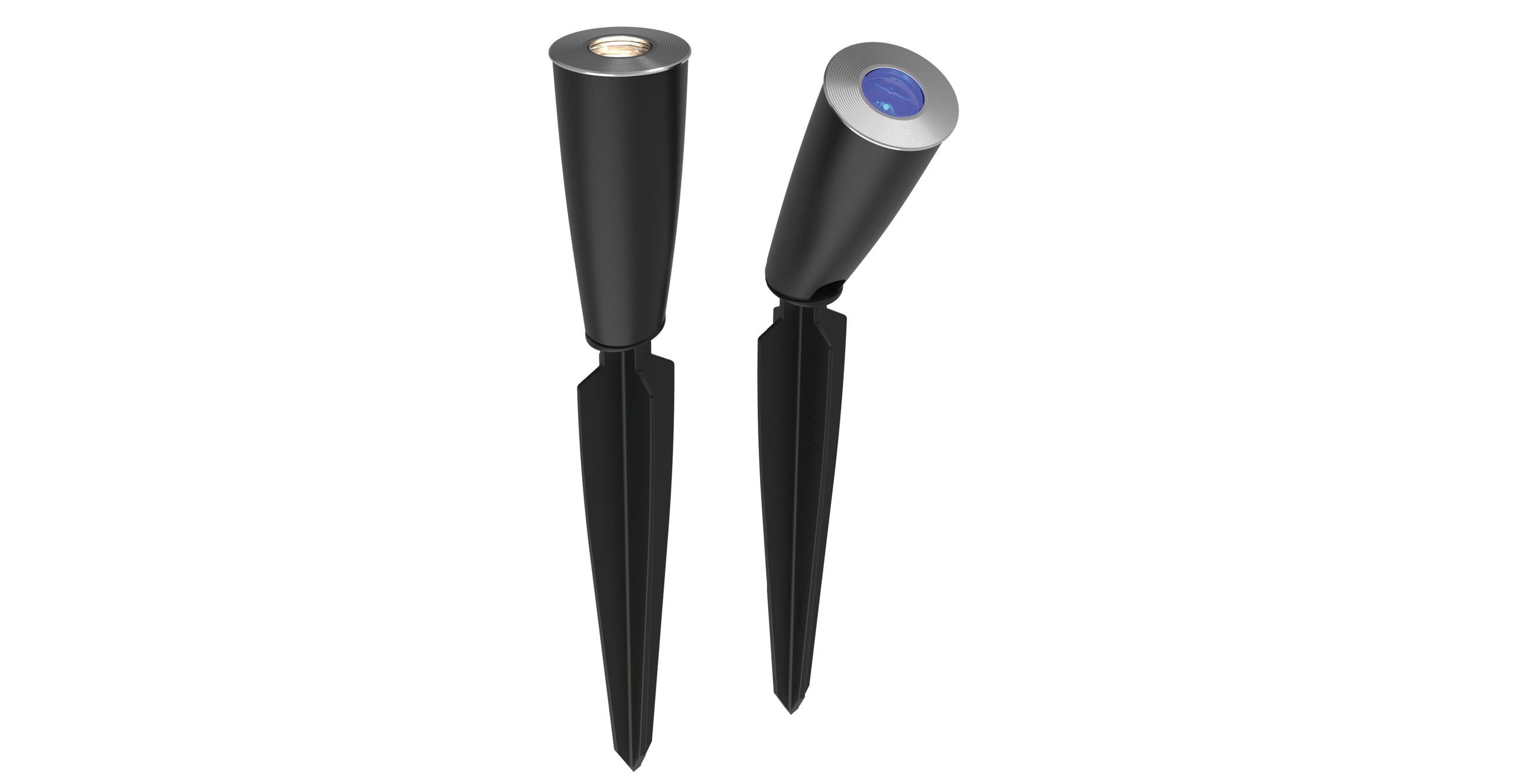

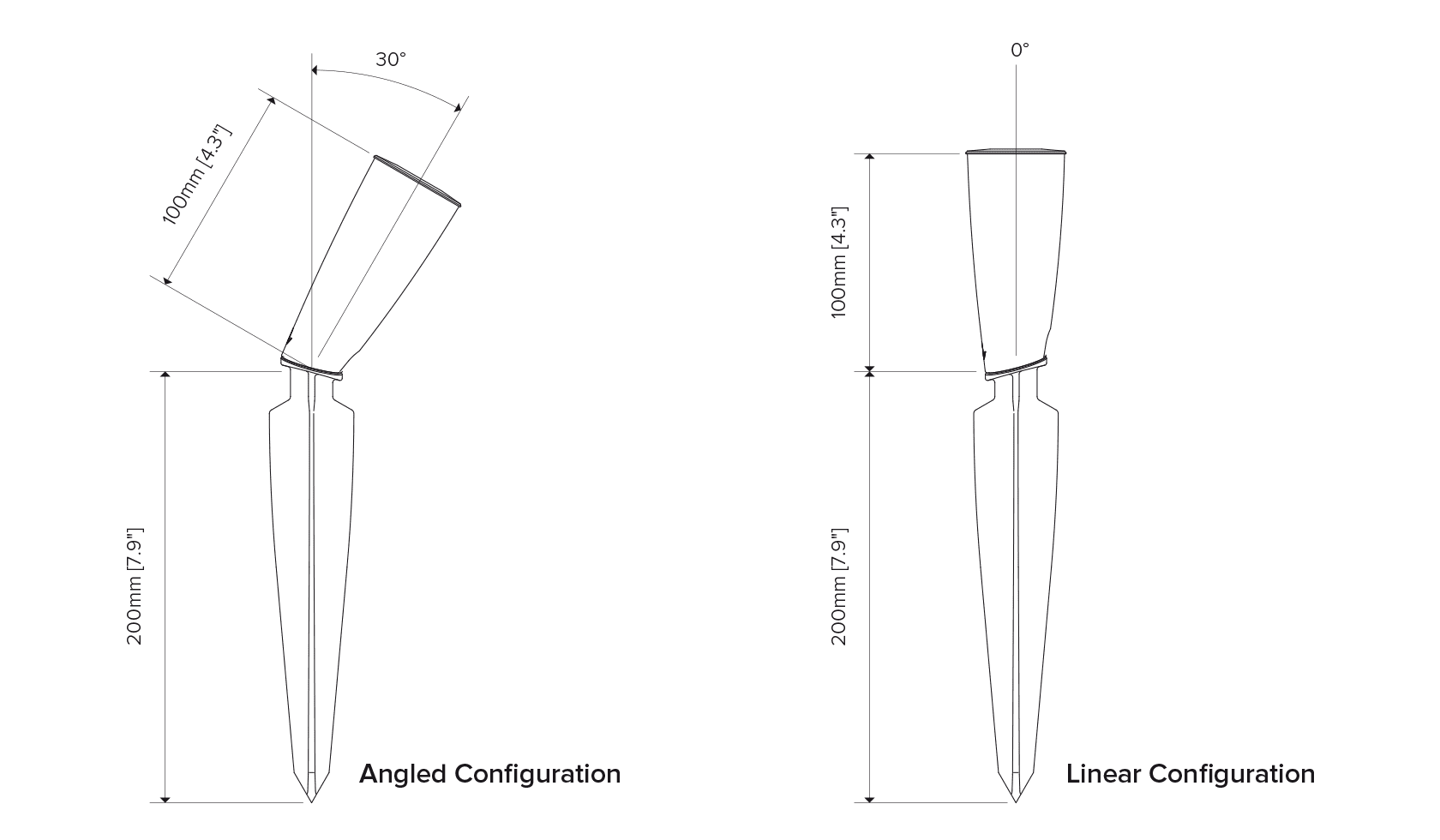

The LS9402LED Vedita is a brilliant LED stake-mounted accent, and features options for dimming control. When high output is required, you can deploy the Vedita in its full output 2W configuration. If a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, you can dynamically dim the Vedita through Lumascape’s D5 driver technology. This luminaire also comes with a stake that can be set at 0° or 30° to suit any landscape or planter application. Constructed in part from 316 marine-grade stainless steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlus™ surface treatment as standard.

Specifications

Features

Lumen Output 180lm Power Consumption 2.8 W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP68 Compliance CE Colour Options BIM Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Vedita LED VE2 below

Light Engine

Required

1W (1)

1W (1)

2W (2)

2W (2)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

20°

Wide (WD)

Wide (WD)

30°

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Input Voltage

Required

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Standard (U)

Vertical, 0° tilt

Cable Length

Required

2m (02)

2m (02)

4 x 0.5mm2 H05RN-F flexible rubber cable

8m (08)

8m (08)

4 x 0.5mm2 H05RN-F flexible rubber cable

15m (15)

15m (15)

4 x 0.5mm2 H05RN-F flexible rubber cable

20m (20)

20m (20)

4 x 0.5mm2 H05RN-F flexible rubber cable

25m (25)

25m (25)

4 x 0.5mm2 H05RN-F flexible rubber cable
