Omnio LED OM1

OM1
LS411LED

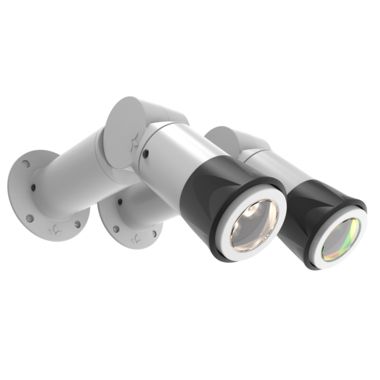

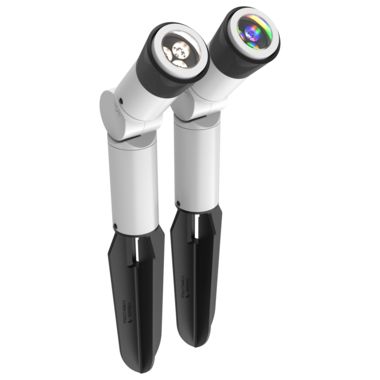

A compact and versatile surface mount luminare suitable for wall mount and ground mount
Configure this product

Product Overview

The LS411LED is a compact, adjustable luminaire with an aesthetically pleasing form, featuring integral line voltage driver and a wide range of adjustability, which makes it ideal for general landscape lighting applications. The epoxy-coated, marine grade aluminium construction ensures a long service life, even in harsh environments.

Specifications

Features

Lumen Output 970lm Power Consumption 14.2W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP67 Compliance CE Colour Options BIM DALI Blue Cool White Warm White RGB

Product Configurator

Customise Omnio LED OM1 below

Application

Surface Mount

Pole Clamp

Concrete Anchor

Light Engine

Required

9W (09)

9W (09)

12W (12)

12W (12)

15W (15)

15W (15)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Linear (LN)

Linear (LN)

20° x 40°

Mounting

Required

Surface Mount (A)

Pole clamp (B)

Concrete Anchor (C)

Snoot & Surface Mount (D)

Snoot & Pole Clamp (E)

Snoot & Concrete Anchor (F)

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Finish

Required

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

White (WT)

White (WT)

White powder coat

Accessories

Mounting & Installation

Pole Clamp - Black (LS6023-1-BL)

Pole Clamp - Black (LS6023-1-BL)

Black powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - Silver (LS6023-1-SL)

Pole Clamp - Silver (LS6023-1-SL)

Silver powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - White (LS6023-1-WT)

Pole Clamp - White (LS6023-1-WT)

White powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - Black (LS6023-2-BL)

Double Pole Clamp - Black (LS6023-2-BL)

Black powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - Silver (LS6023-2-SL)

Double Pole Clamp - Silver (LS6023-2-SL)

Silver powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - White (LS6023-2-WT)

Double Pole Clamp - White (LS6023-2-WT)

White powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter
