Omnio COB OM2 - LS411COB

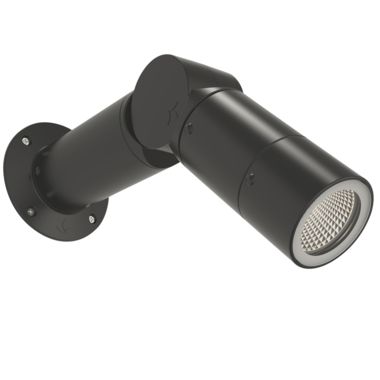

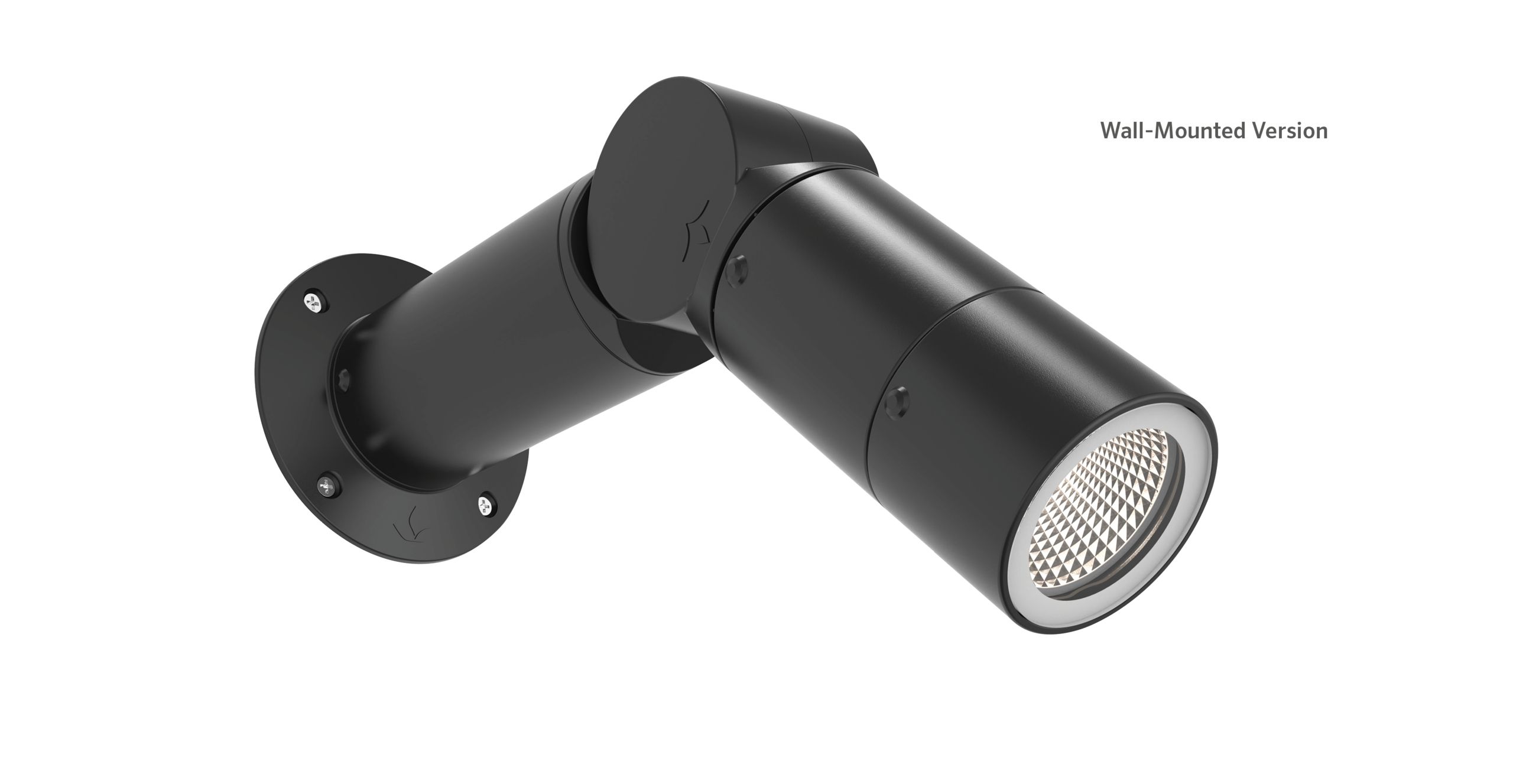

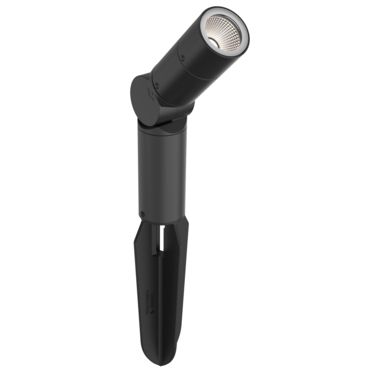

A compact and versatile surface mount luminaire suitable for wall mount and ground mount applications

Product Overview

The Omnio OM2 uses next generation ‘Chip on Board’ technology to deliver powerful illumination and efficiency from a compact package. The high lumen density, combined with the traditional ‘lamp and reflector’ optics makes this luminaire ideal for applications requiring wider distribution, such as landscape lighting or other applications where sharp cutoff is not desired. Featuring a wide range of colour temperatures and optical/shielding combinations, the Omnio OM2 retains the versatility of its discrete LED predecessor whilst dramatically boosting delivered lumens.

Features

Lumen Output 1,490lm Power Consumption 25.6W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) IP Rating IP67 Compliance ETL - USA & Canada CE Color Options Warm White Cool White Data Sheet

Specifications

Accessories


LS6023 Pole Clamp

Product Configurator

Customise Omnio COB OM2 below

Light Engine

Required

20W (20W)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (927)

Static White (927)

2,700 K (90 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20°

Wide (WD)

Wide (WD)

40º

Wide Flood (WF)

Wide Flood (WF)

60°

Shielding

Required

Flush (1)

Snoot (2)

Mounting

Required

Surface Mount (A)

Pole clamp (B)

Concrete Anchor (C)

Input Voltage

Required

110-240 Vac, 50/60 Hz (01)

110-240 Vac, 50/60 Hz (01)

Mains Voltage

Finish

Required

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

White (WT)

White (WT)

White powder coat

Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.
