Tristar LED TR1 - LS265LED

A high performance fountain light

Product Overview

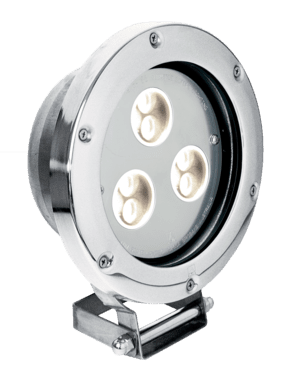

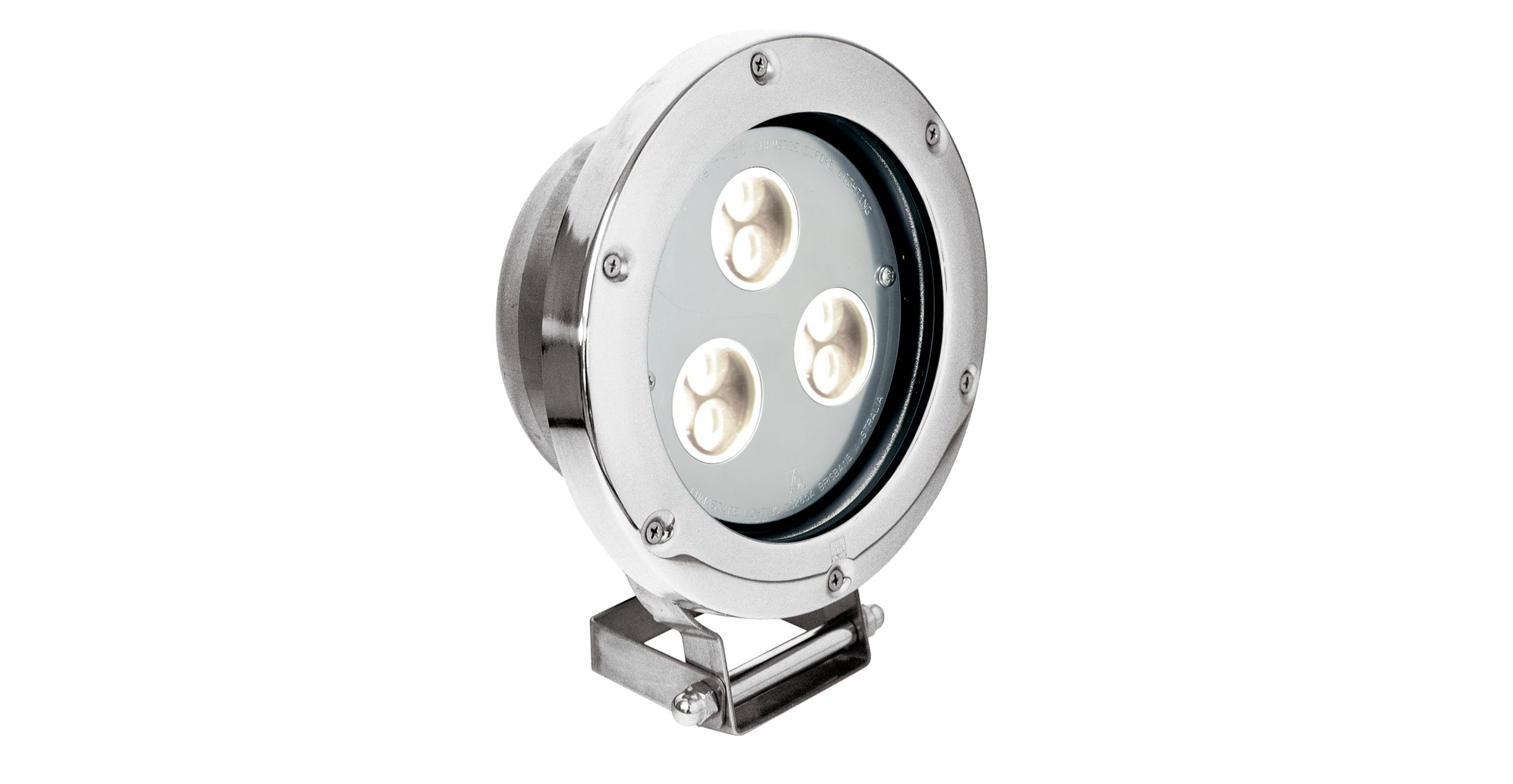

The Underwater LS265LED Tristar is a high-performance fountain light utilising LED technology. The durable Lumascape 316 marine grade stainless steel housing and long life LED are an ideal combination. A simple and robust design allows for easy luminaire installation and there is virtually no need for maintenance. The LS265LED has the added advantage of being supplied factory sealed, with no requirement to open the luminaire during installation. This luminaire can also operate in very shallow water.

Accessories

LS6074 Mounting Plate



Features

Lumen Output 2,160lm Power Consumption 32W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 2m (6ft) Compliance ETL - USA & Canada CE Color Options Warm White Cool White RGB Blue (470 nm) Data Sheet

Specifications

Accessories


LS6074 Mounting Plate

Product Configurator

Customise Tristar LED TR1 below

Light Engine

Required

28W (28)

Light Source

Required

Static White (D7)

Static White (D7)

2,700 K (80 CRI, 3 SDCM)

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Dynamic Color (M4)

Dynamic Color (M4)

RGB

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Linear Horizontal (LH)

Linear Horizontal (LH)

40° x 20°

Linear Vertical (LV)

Linear Vertical (LV)

20° x 40°

Input Voltage

Required

24 Vdc (07)

24 Vdc (07)

Non-Dimmable

24 Vdc Dimmable (27)

24 Vdc Dimmable (27)

PWM Dimmable Driver

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

5m / 16ft (05)

Flexible rubber cable

8m / 26ft (08)

Flexible rubber cable

15m / 50ft (15)

Flexible rubber cable

Accessories
