Vedita LED VE5

VE5
LS9405LED
A versatile, low-voltage underwater luminaire with installation niche
Configure this product

Product Overview

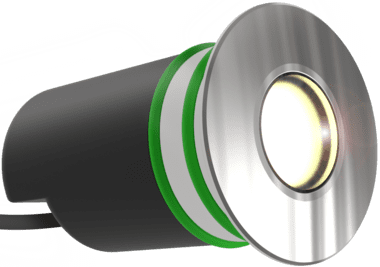

The Underwater LS9405LED Vedita is specifically engineered for underwater use in fountains and other water features. When high output is required, it can be deployed in its full output, 2W configuration; if a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 marine grade stainless steel, this luminaire also comes standard with Lumascape proprietary ElectroPolishPlus™ surface treatment.

Features

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 2m (6ft) Compliance CE CCC Colour Options BIM Blue Cool White Warm White

Product Configurator

Customise Vedita LED VE5 below

Power Consumption

Required

1W

1W

2W

2W

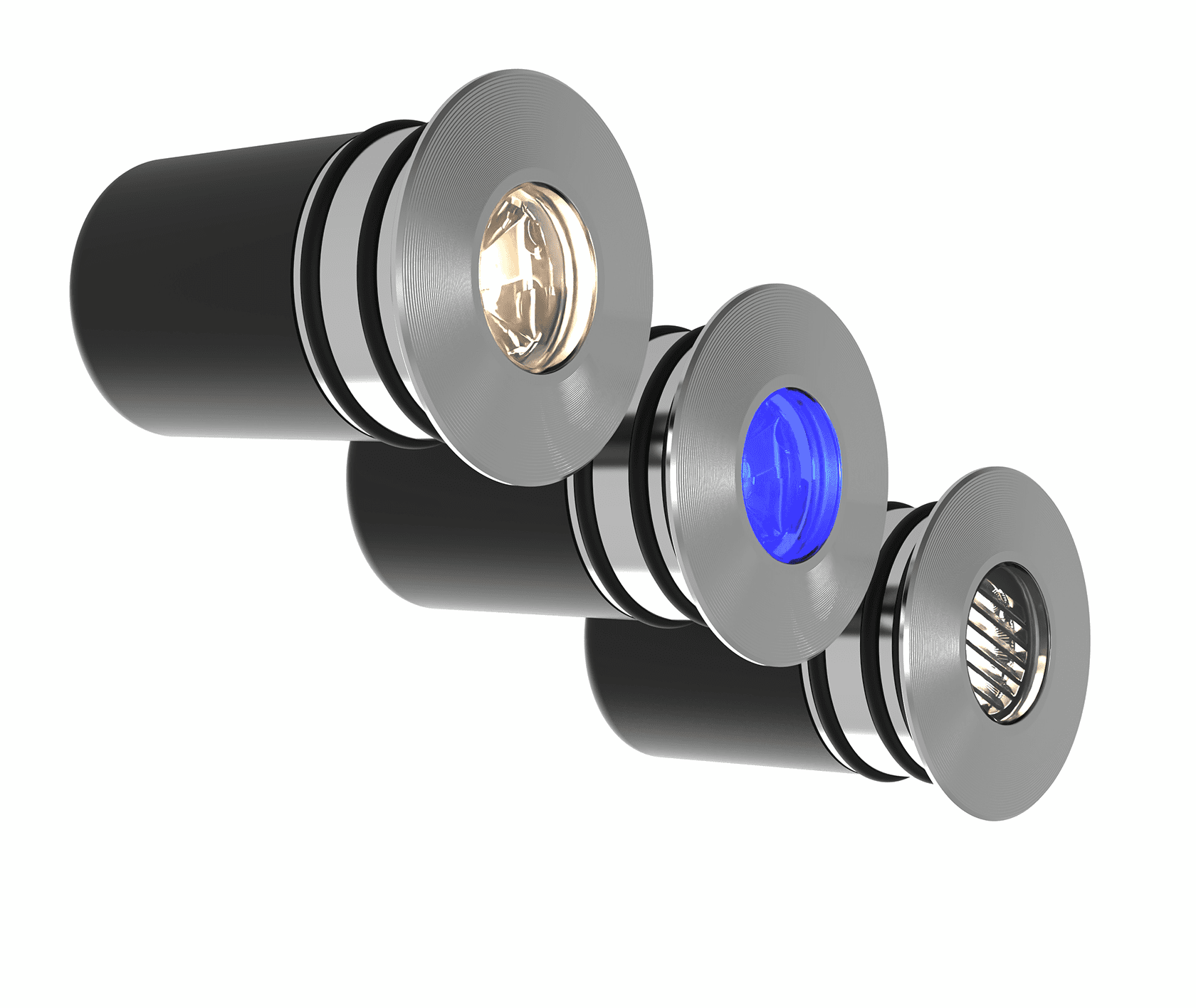

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow

Narrow

14º

Medium

Medium

20º

Wide

Wide

30º

Linear Horizontal

Linear Horizontal

10º x 40º

Flood

Flood

Input Voltage

Required

24V DC - Dimmable

24V DC - Dimmable

PWM Dimmable Driver, 24V DC

Tilt

Required

Standard

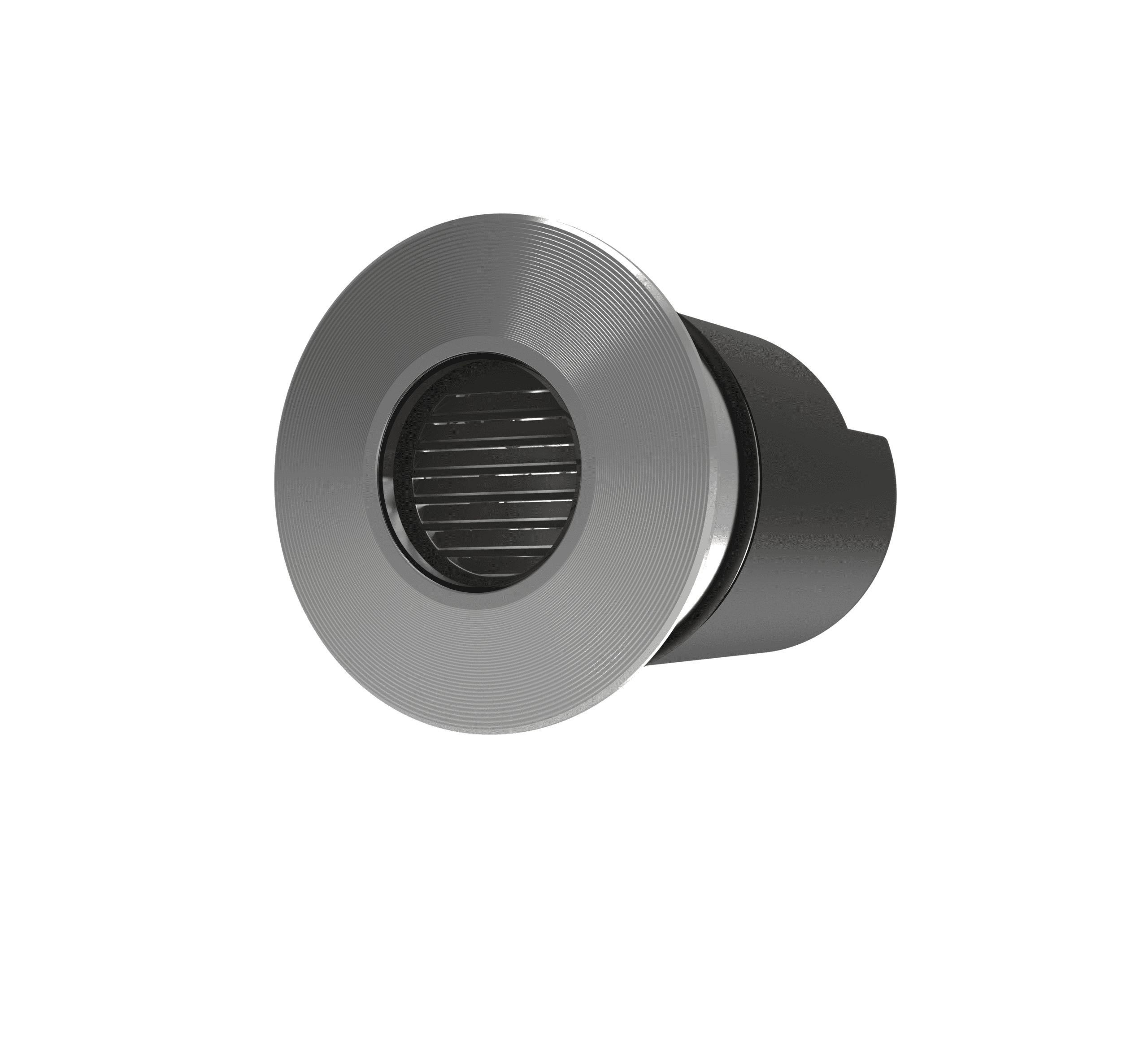

Wall Wash

Not applicable with Flood (FL) beam

Cable Length

Required

8m

8m

4 x 0.5mm2 H05RN-F flexible rubber cable

15m

15m

4 x 0.5mm2 H05RN-F flexible rubber cable

20m

20m

4 x 0.5mm2 H05RN-F flexible rubber cable

25m

25m

4 x 0.5mm2 H05RN-F flexible rubber cable

Accessories

Pre-Installation Options

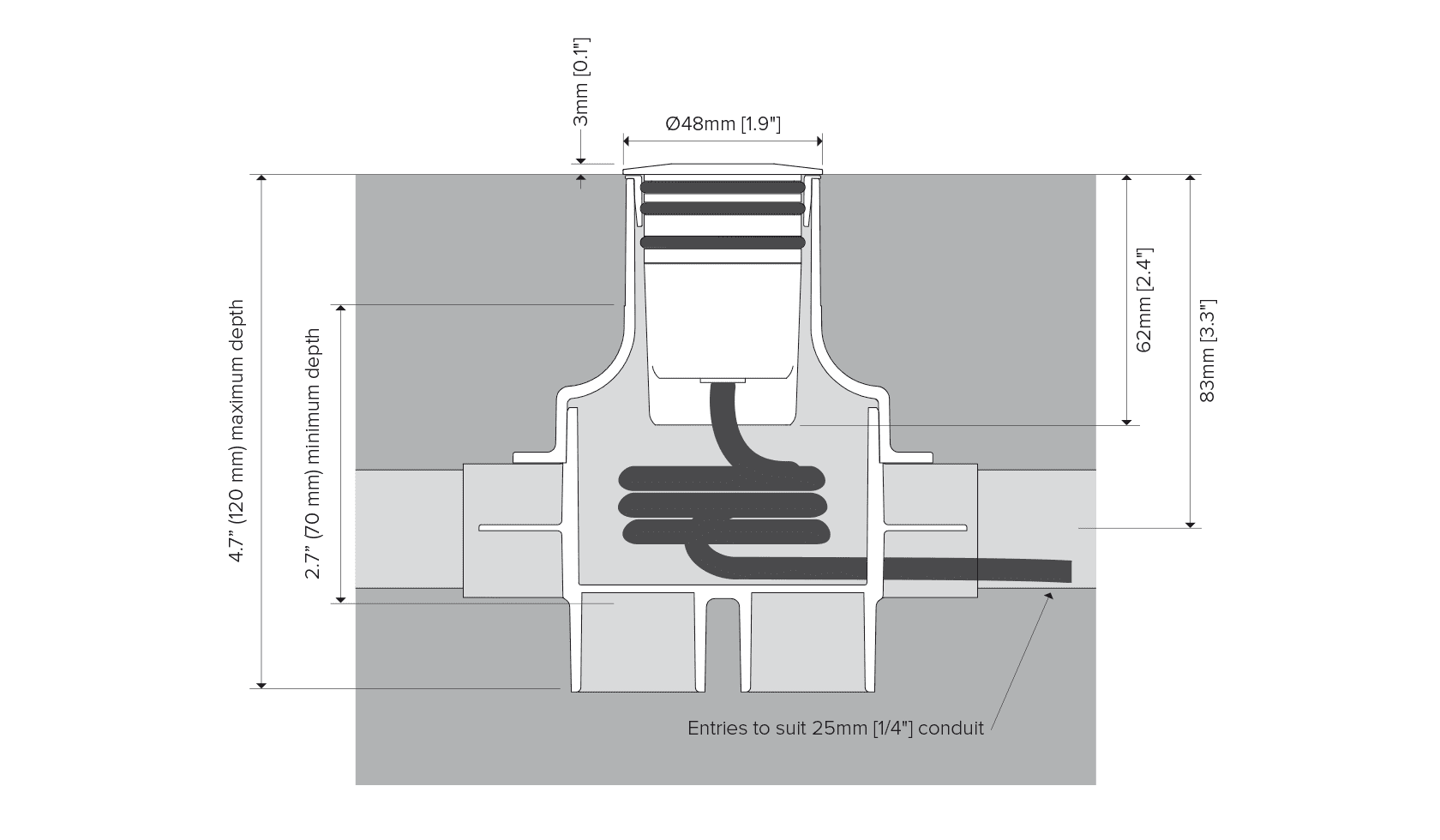

Pre-installation Niche

Pre-installation Niche

Power Supplies / Transformers

40W

40W

110-240 V AC, 50/60 Hz, 24 V DC

100W

100W

110-240 V AC, 50/60 Hz, 24 V DC Ripple free remote power supply

150W

150W

110-240 V AC, 50/60 Hz, 24 V DC Ripple free remote power supply

PWM Translator

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals

DALI to PWM Translator

DALI to PWM Translator

Translate standard DALI to PWM control signals
