Star LED ST1

ST1
LS375LED
A compact surface mount fountain light
Configure this product

Product Overview

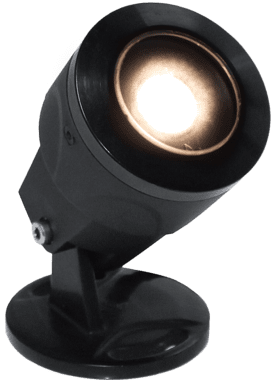

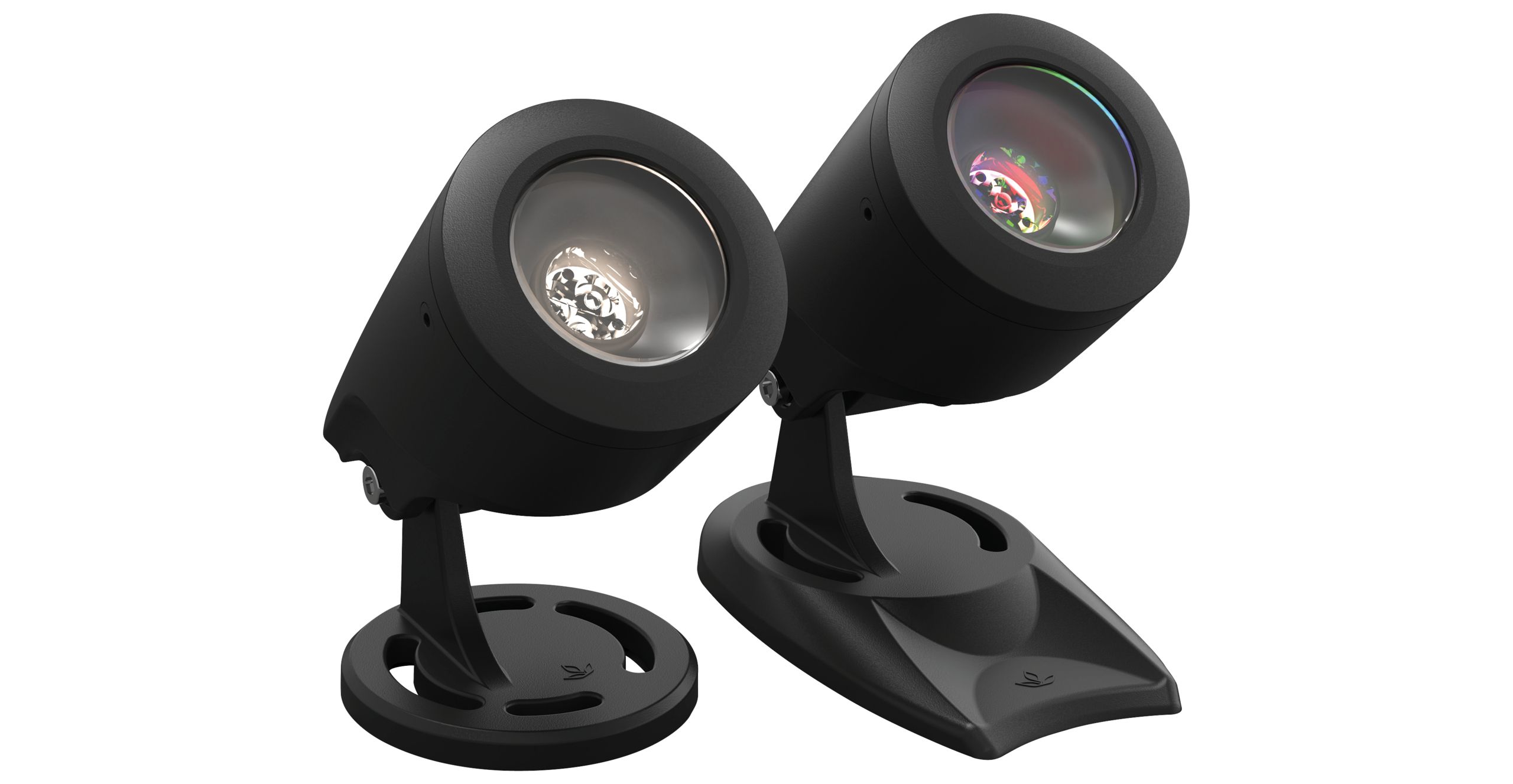

The Underwater LS375LED Star is a compact, surface mounted fountain light designed for high-performance applications. Constructed of both high pressure die-cast copper alloy and high-strength polymer, the LS375LED represents the next generation of compact fountain lighting. Higher power options and more control, including the Lumascape d5 driver technology for advanced dimming, as well as high-resolution colour changing options are featured in this luminaire.

Specifications

Features

Lumen Output 726lm Power Consumption 10.8W Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 2m (6ft) Compliance CE Colour Options Blue Cool White Warm White RGB

Product Configurator

Customise Star LED ST1 below

Power Consumption

Required

6W

6W

9W

9W

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20º

Medium (ME)

Medium (ME)

25º

Wide (WD)

Wide (WD)

40º

Input Voltage

Required

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Cable Length

For custom cable length contact factory.

Required

8m/ 26ft (08)

8m/ 26ft (08)

Flexible rubber cable

15m/ 49ft (15)

15m/ 49ft (15)

Flexible rubber cable

20m/ 65ft (20)

20m/ 65ft (20)

Flexible rubber cable

25m/ 82ft (25)

25m/ 82ft (25)

Flexible rubber cable

Accessories

Mounting & Installation

Mounting Plate (LS632)

Mounting Plate (LS632)

Small round mounting plate
