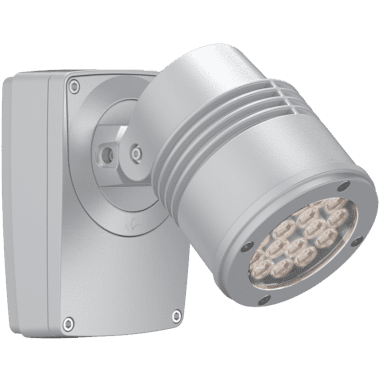

Centria C4 - LS1010

A compact and versatile surface mount luminaire

Product Overview

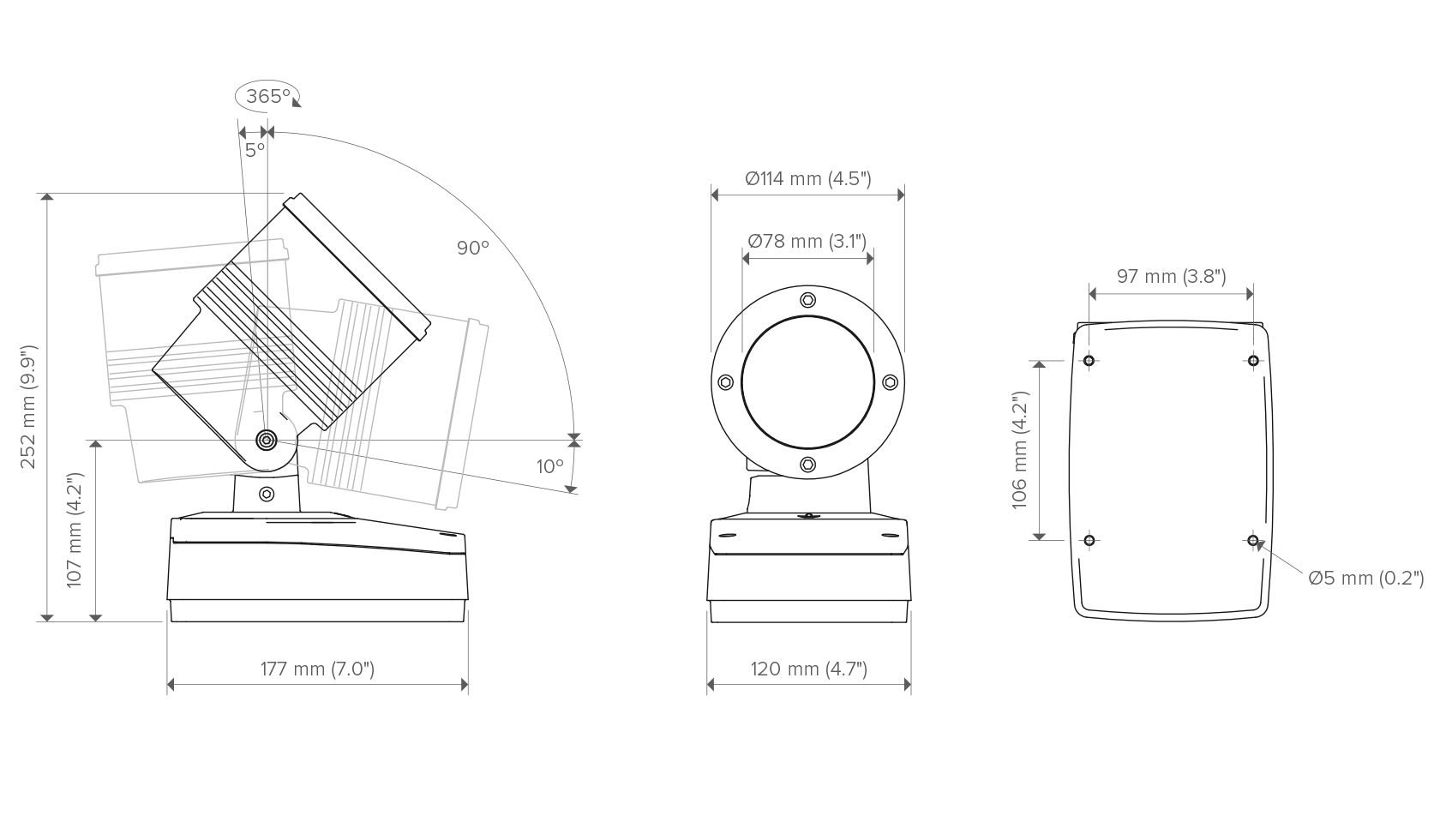

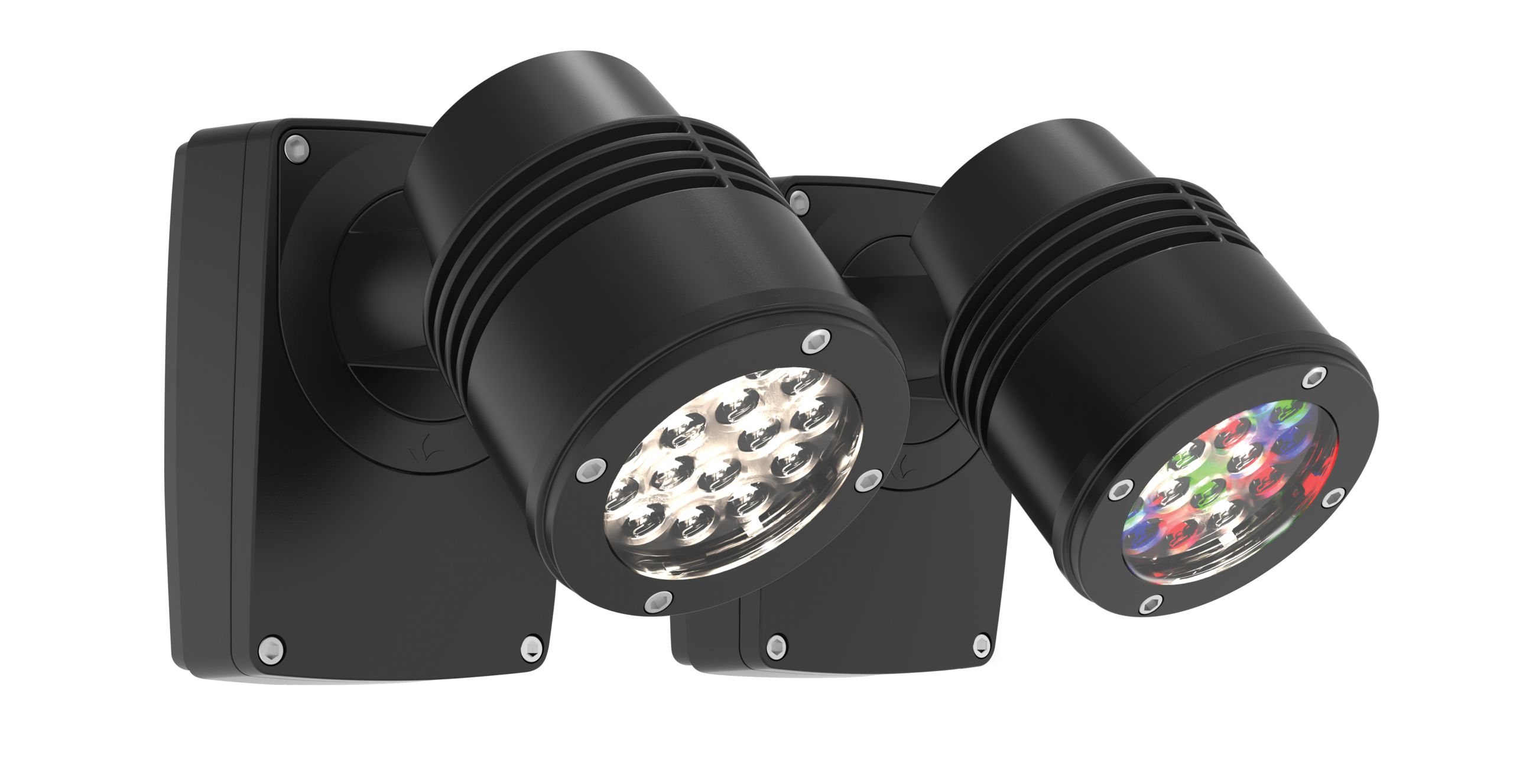

The LS1010 is one of the most compact and versatile surface mount luminaires in its class, featuring light output and energy efficiency surpassing 35W Metal Halide. Available in white, colour changing and tunable white light engines, the LS1010 is packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations including two axes of adjustment, making it ideal for direct or indirect applications.

Features

Lumen Output 1,710 lm Power Consumption 25W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Control Protocol PowerSync (DMX/RDM, 0-10V) IP Rating IP66 / IP67 IK Rating IK7 Compliance ETL - USA & Canada CE RCM CCC Color Options Warm White Cool White RGBA RGBW RGBW with Royal Blue Tunable White Data Sheet

Specifications

Accessories


LS6104 Glare Shield

Product Configurator

Customise Centria C4 below

Light Engine

Required

22W (22W)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

110-240 Vac, 50/60 Hz (01)

110-240 Vac, 50/60 Hz (01)

Mains Voltage

30 to 48 Vdc (07)

30 to 48 Vdc (07)

Low Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
