Evoca LED EV4

EV4
LS393LED

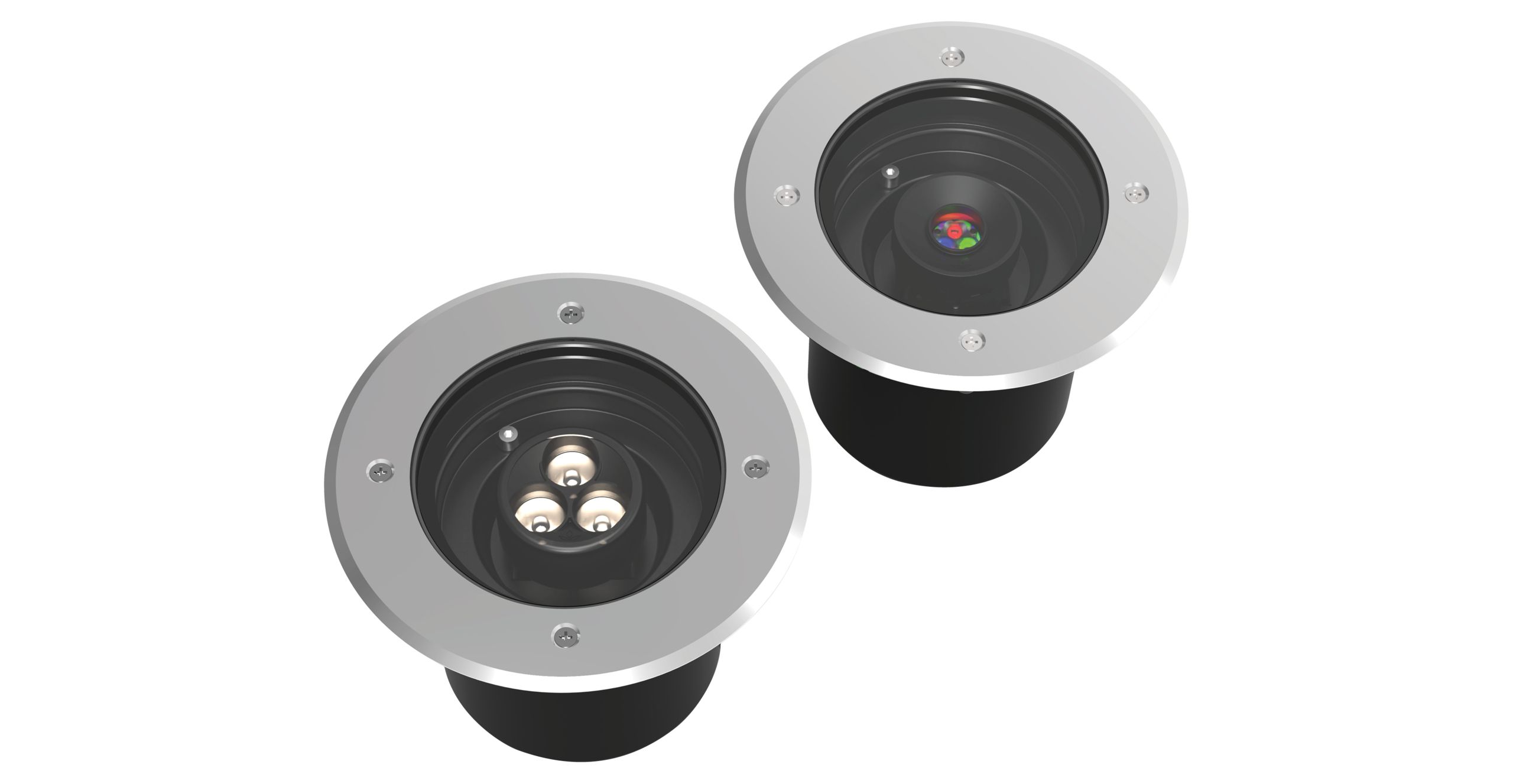

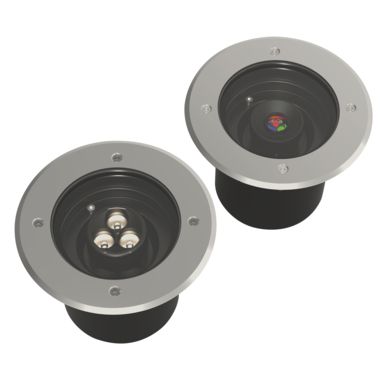

A compact inground uplighter
Configure this product

Product Overview

The LS393LED is a compact inground option featuring a 6W LED module with output similar to a 50W MR16. With options for line voltage input and dimming via Lumascape d5 driver technology, this inherently protected, compact luminaire is suitable for use in many locations where MR16-based luminaires cannot be used due to heat. Internal rotation and tilt adjustability ensures the most efficient light delivery can be set according to the site conditions.

Specifications

Features

Lumen Output 550lm Power Consumption 7.9W Control Protocol PWM (0-10V, DMX, DALI) Diameter 172mm (6.8") Static Load Rating 3,750kg (8,267lb) IP Rating IP68 IK Rating IK9 with OptiClear lens Compliance CE Colour Options BIM Blue Cool White Warm White RGB

Product Configurator

Customise Evoca LED EV4 below

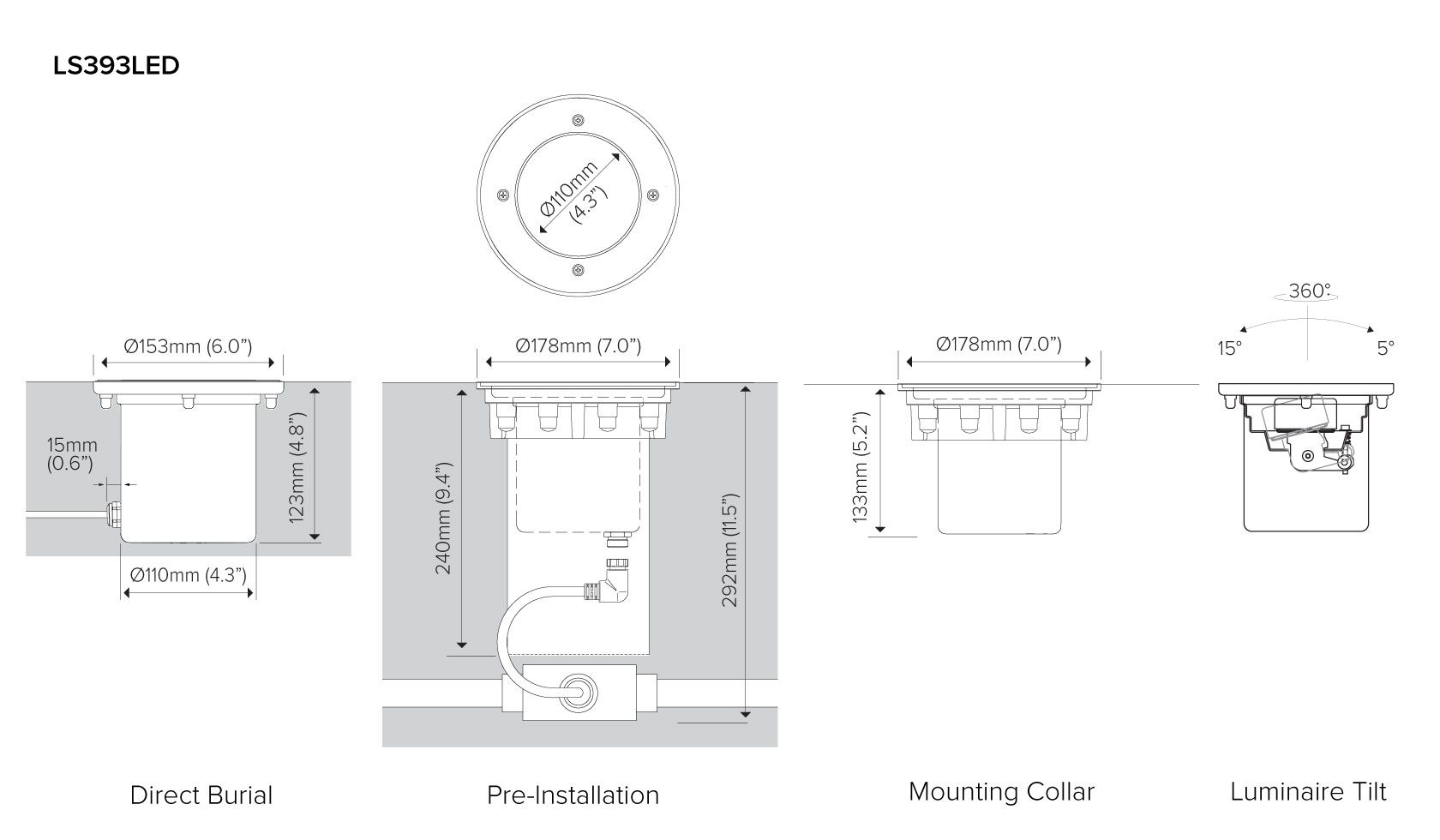

Installation Type

Select the installation type you require.

Required

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Mounting Collar

Mounting Collar

Light Engine

Required

3W (3)

3W (3)

6W (6)

6W (6)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Lens

Required

OptiClear™ (A)

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

MicroAntiLeach Cable (84)

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector & Junction Box (87)

IP68 Connector & Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Armoured Cable (81)

Armoured Cable (81)

Armoured cable for hard wired installations, includes MicroAntileach and a junction box

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Wide (WD)

Wide (WD)

40º

Linear Horizontal (LH)

Linear Horizontal (LH)

40° x 10°

Linear Vertical (LV)

Linear Vertical (LV)

10° x 40°

Housing Depth

Required

Direct Burial (21)

More info

Mounting Collar (23)

More info

Pre-Install Blockout (23)

More info

Cable Entry

Required

Side (N)

Side (N)

Bottom (Q)

Bottom (Q)

Input Voltage

Required

110-240V, 50/60Hz (01)

110-240V, 50/60Hz (01)

Mains Voltage

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Accessories

Pre-Installation Options

Pre-Installation Kit (LS647-K-84)

Pre-Installation Kit (LS647-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info
Mounting Collar (LS647-2)

Mounting Collar (LS647-2)

For use in decks and tree grates. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Mounting Collar luminaire.

More info
Pre-Installation Kit (LS647-K-87-07)

Pre-Installation Kit (LS647-K-87-07)

For use with low voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info
Pre-Installation Kit (LS647-K-87-01)

Pre-Installation Kit (LS647-K-87-01)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.
