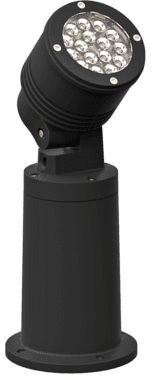

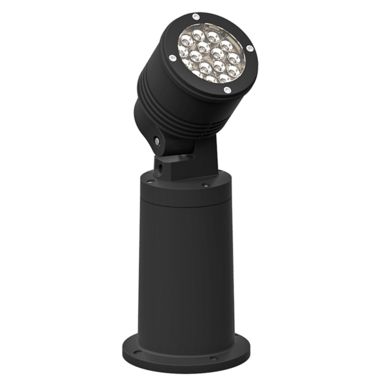

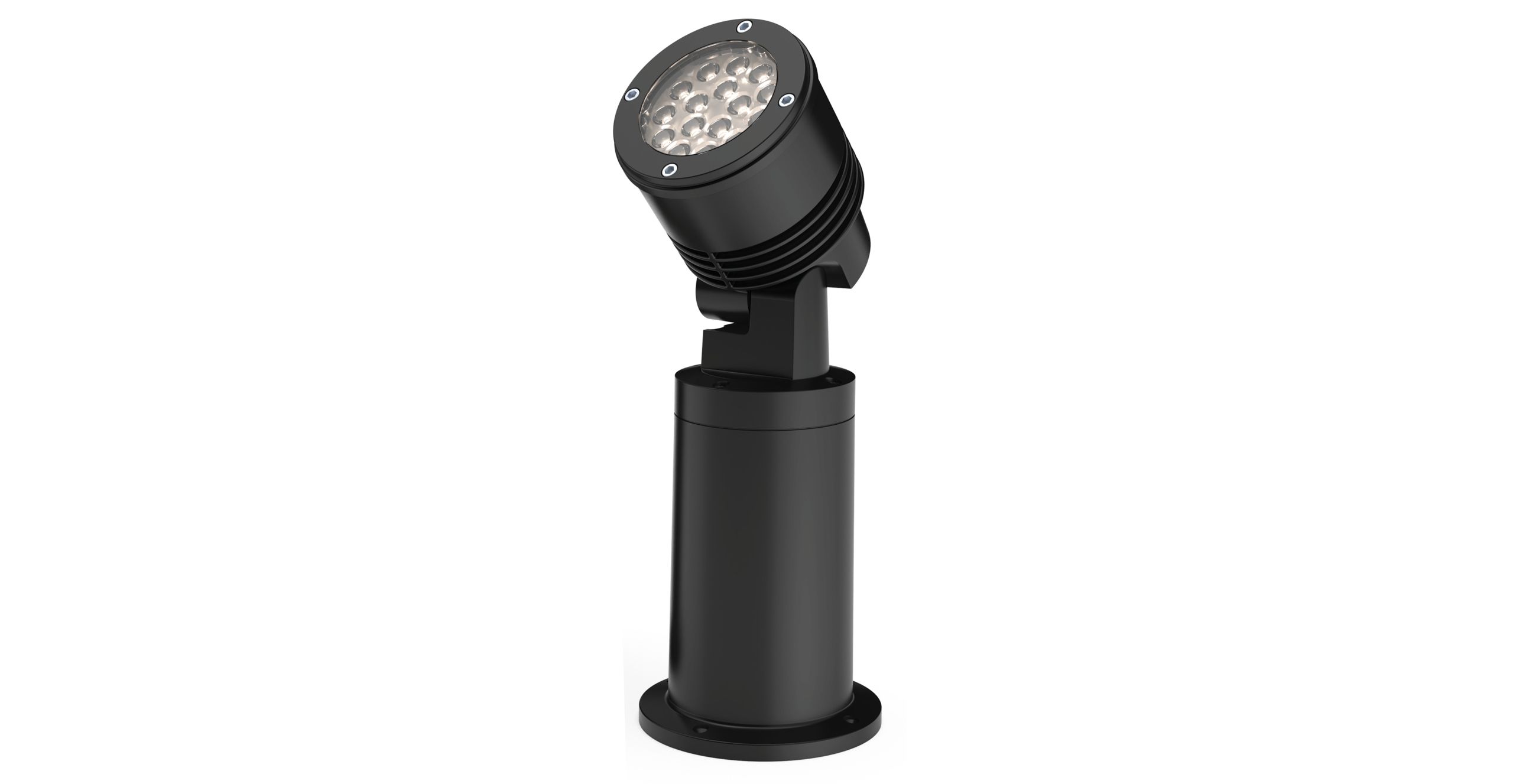

Centria C2 Foundation - LS2022

A compact and versatile surface mount spotlight.
Configure this product Features Specifications Accessories

Product Overview

The most compact and versatile, remote driver surface mounted luminaire in its class, featuring a light output and energy efficiency surpassing 35 W Metal Halide. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. The height of the luminaire allows the light head to stand above vegetation for an unobstructed cast of light. Available with integrated Dali control or as non-dimmable.

Features

Lumen Output 2,450 lm LED Power 22 W Power Consumption 24 W Typical Lifetime > 60,000 hrs Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK7 Compliance ETL - USA & Canada CE RCM Colour Options Warm White Cool White Download Datasheet

Specifications

Accessories


LS6104 Glare Shield

Downloads

Install Guide Download Datasheet
DXF Files LS2022 ZIP (205.37 KB) IES Files LS2022 Dali ZIP (50.63 KB) Product Flyer C1, C2 & C4 PDF (131.13 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS2022 _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Centria C2 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

24 W (24D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

220-240 Vac, 50 Hz (01)

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

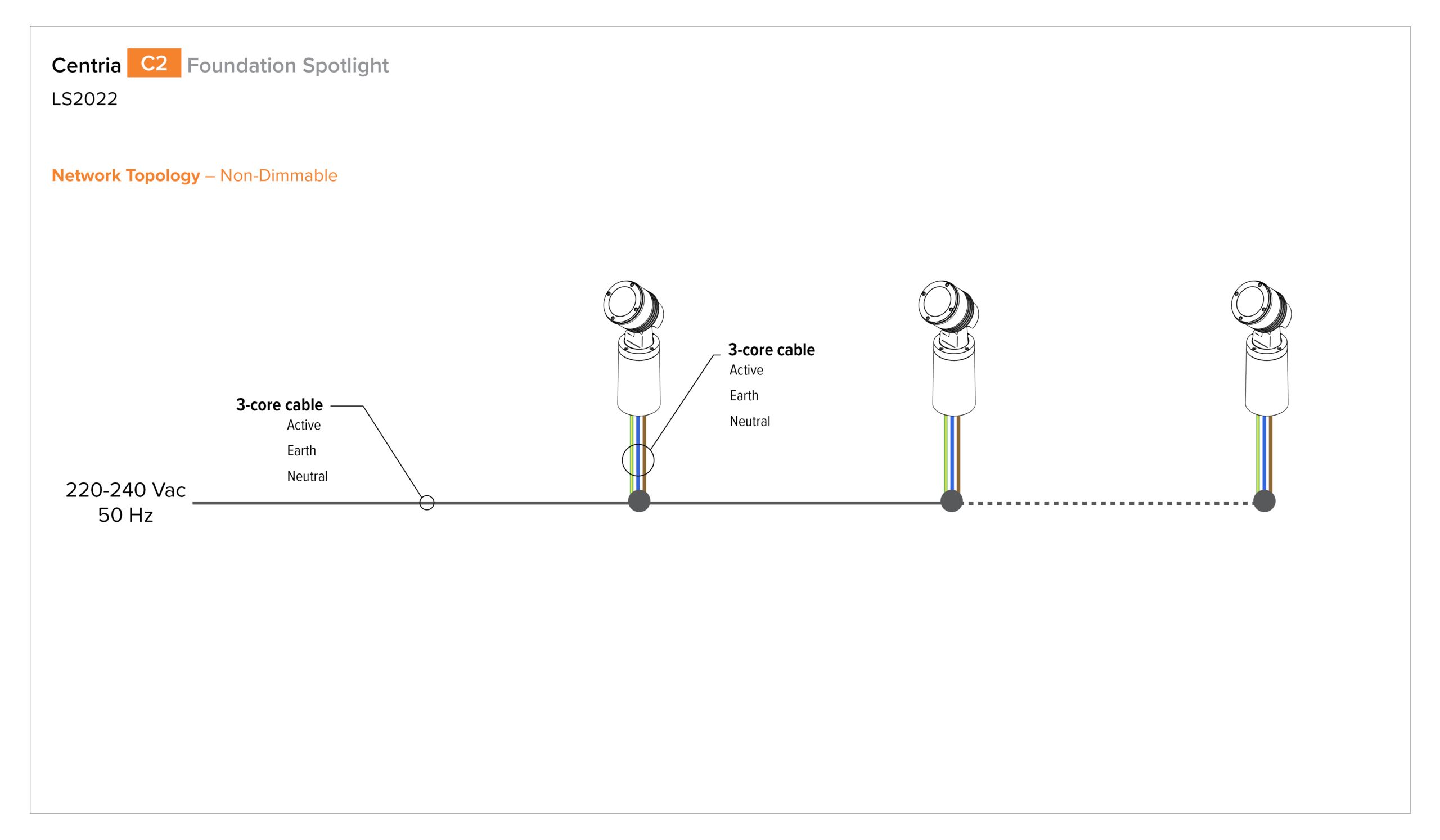

Non-dimming (ND)

For single color, non-dimming applications only.

DALI (DL)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Accessories

External Glare Shield

External Visor (LS6104)

External Visor (LS6104)
