Centra C1 Foundation

C1
LS2012

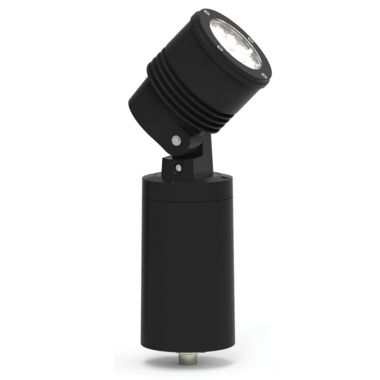

A compact and versatile stake mount spotlight
Configure this product

Product Overview

The most compact and versatile stake mount luminaires in its class, featuring light output and energy efficiency surpassing 35W Metal Halide. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Available with a concrete anchor, the height of the luminaire allows the light head to stand above vegetation for an unobstructed cast of light. Available as a non-dimming or DALI controlled luminaire.

Specifications

Features

Lumen Output 2,450lm LED Power 22 W Power Consumption 24 W Input Voltage 220-240 Vac, 50 Hz Control Protocol Non-Dimming, DALI® IP Rating IP66 / IP67 IK Rating IK7 Compliance CE RCM Colour Options Cool White Warm White Download Datasheet

Product Configurator

Customise Centra C1 Foundation below

Colour System

Single Colour

Single Colour

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

24 W (24D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

220-240 Vac, 50 Hz (01)

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

Non-dimming (ND)

For single color, non-dimming applications only.

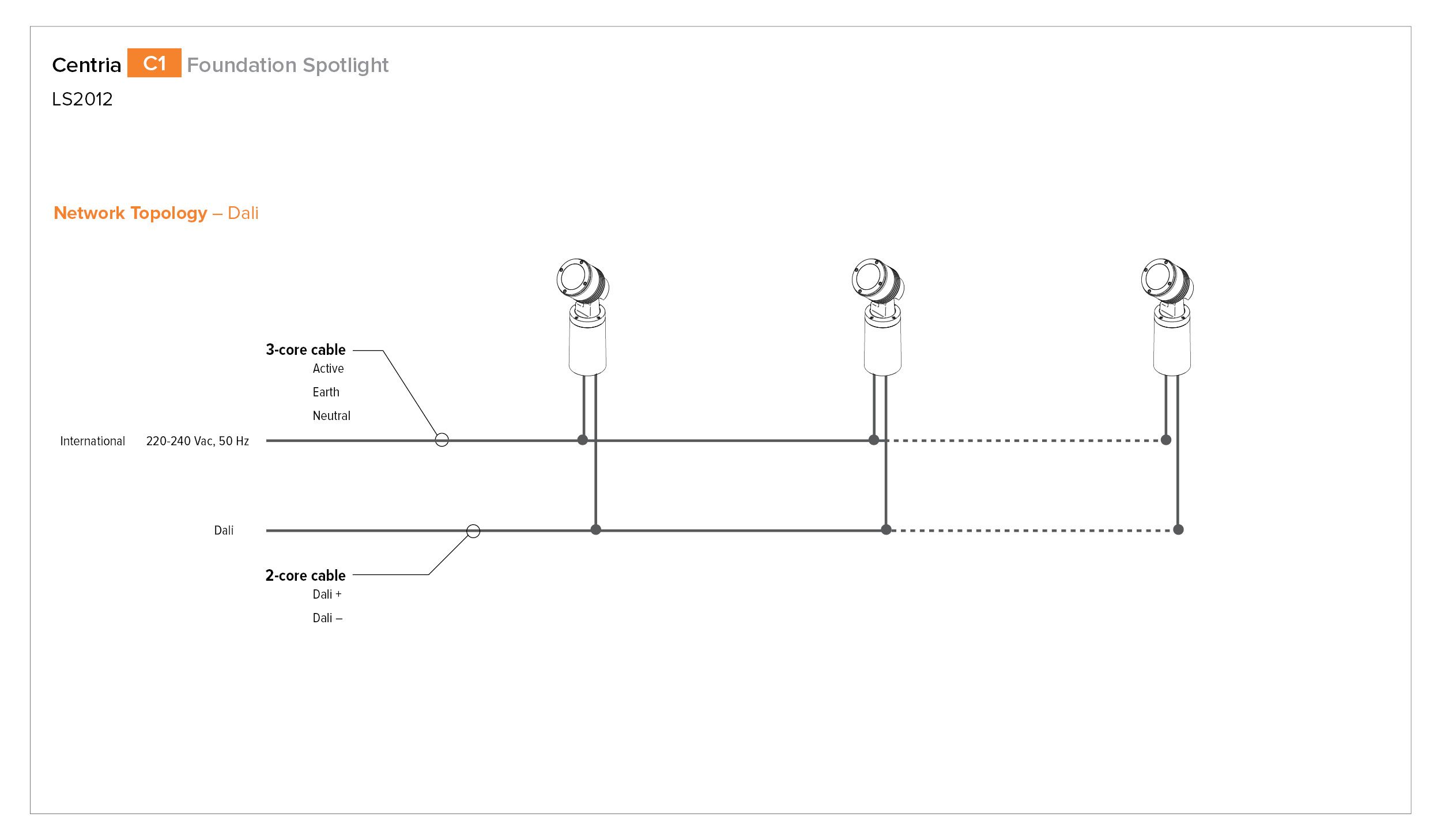

DALI (DL)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Accessories

External Glare Shield

External Visor (LS6104)

External Visor (LS6104)
