Vedita LED VE6

VE6
LS9406LED

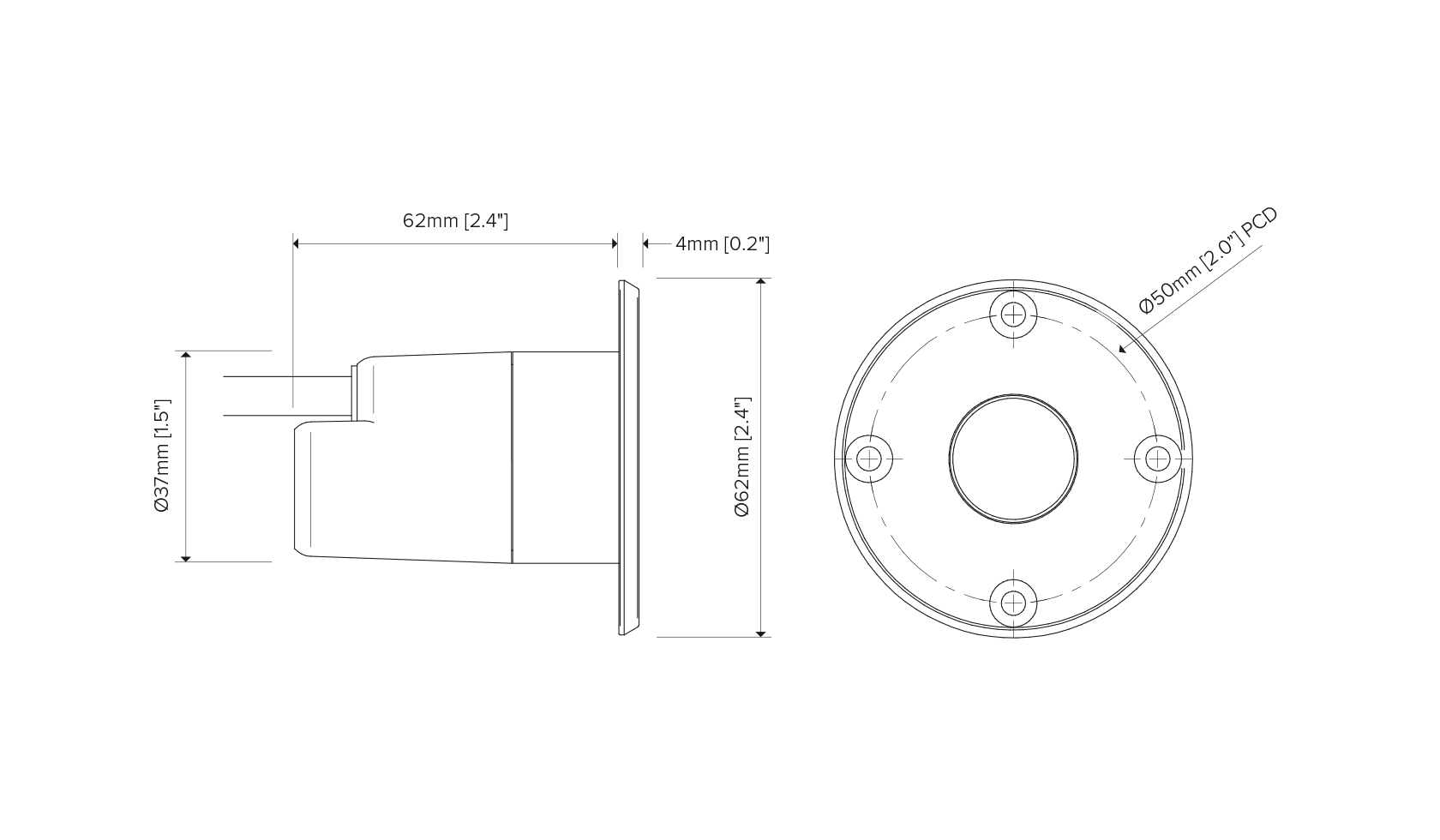

A compact and versatile low-voltage wall mount luminaire with large flange
Configure this product

Product Overview

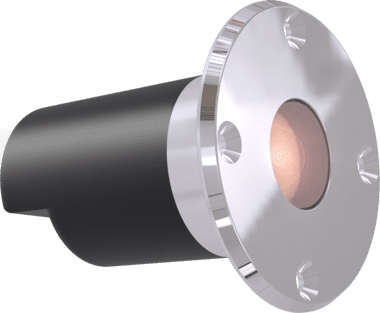

The Wall Mount LS9406LED Vedita is designed with a large flange and countersunk screw holes to secure the luminaire to any hard surface. Several beam angles are available, ranging from narrow to wide. Also, an asymmetric wall wash lens option and flood/marker optics are available. Constructed in part from 316 marine grade stainless steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlus™ surface treatment as standard.

Specifications

Features

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP68 Compliance CE Colour Options BIM Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Vedita LED VE6 below

Light Engine

Required

1W (1)

1W (1)

2W (2)

2W (2)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

20°

Wide (WD)

Wide (WD)

30°

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Input Voltage

Required

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Standard (U)

Vertical, 0° tilt

Wall Wash (W)

Not applicable with Flood (FL) beam

Cable Length

Required

2m (02)

2m (02)

4 x 0.5mm2 H05RN-F flexible rubber cable

8m (08)

8m (08)

4 x 0.5mm2 H05RN-F flexible rubber cable

15m (15)

15m (15)

4 x 0.5mm2 H05RN-F flexible rubber cable

20m (20)

20m (20)

4 x 0.5mm2 H05RN-F flexible rubber cable

25m (25)

25m (25)

4 x 0.5mm2 H05RN-F flexible rubber cable
