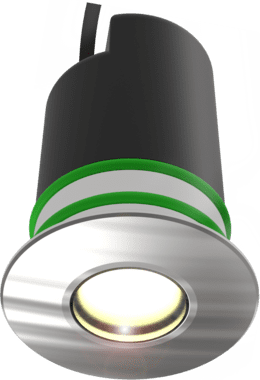

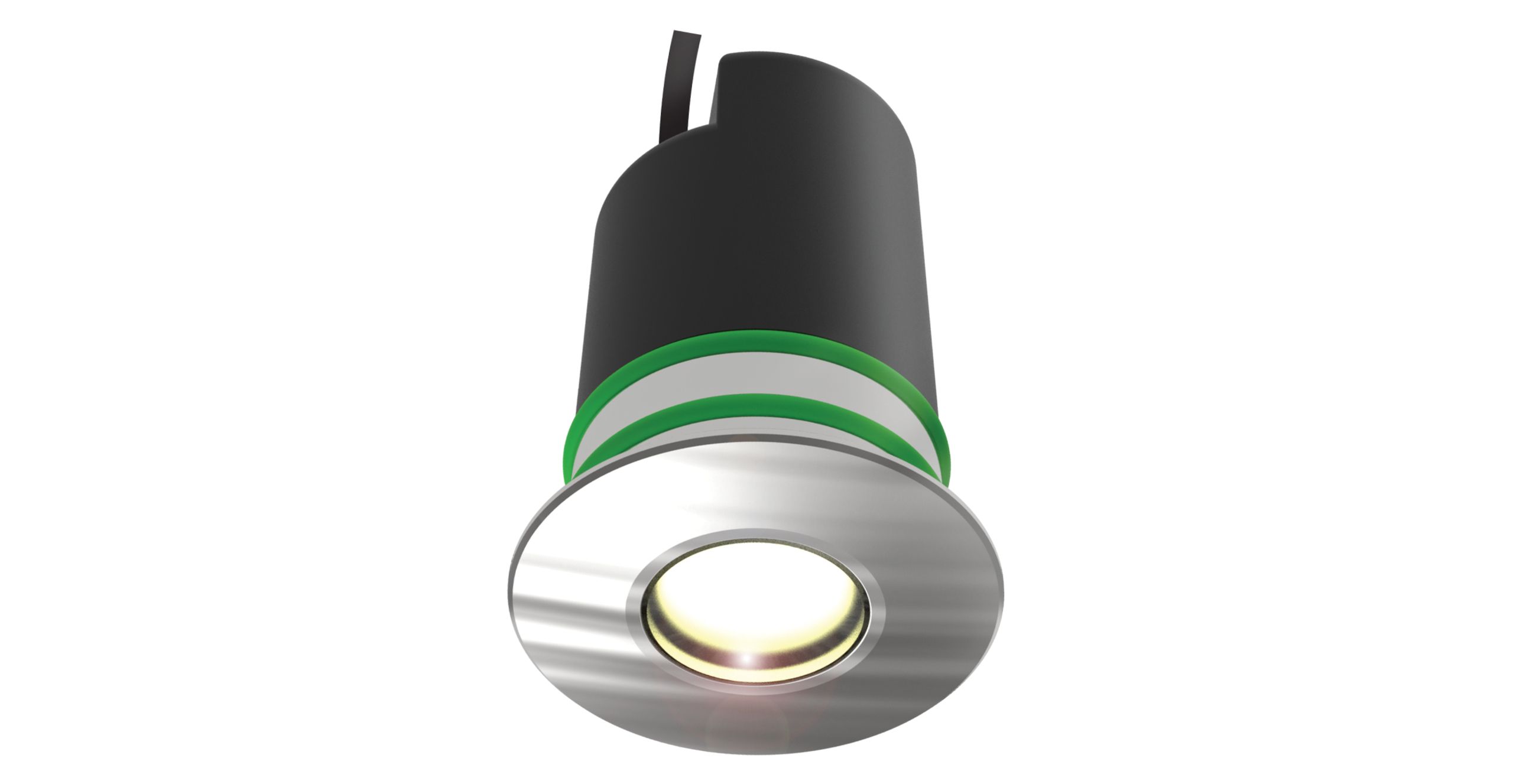

Vedita LED VE4

VE4
LS9404LED
A versatile, low-voltage downlight luminaire
Configure this product

Product Overview

The LS9404LED Vedita provides a quick, simple and low profile method of retaining the luminaire into a ceiling or wall cavity. It features advanced dimming and control via new Lumascape d5 driver technology: when high output is required, it can be deployed in its full output, 2W configuration; if a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed. Constructed in part from 316 marine grade stainless steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlus™ surface treatment as standard, or optional powder coated white.

Specifications

Features

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP65 Compliance CE Colour Options Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Vedita LED VE4 below

Light Engine

Required

1W (1)

1W (1)

2W (2)

2W (2)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

White (WT)

White (WT)

White powder coat

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

20°

Wide (WD)

Wide (WD)

30°

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Input Voltage

Required

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Standard (U)

Vertical, 0° tilt

Wall Wash (W)

Not applicable with Flood (FL) beam

Cable Length

Required

2m (02)

2m (02)

4 x 0.5mm2 H05RN-F flexible rubber cable

8m (08)

8m (08)

4 x 0.5mm2 H05RN-F flexible rubber cable

15m (15)

15m (15)

4 x 0.5mm2 H05RN-F flexible rubber cable

20m (20)

20m (20)

4 x 0.5mm2 H05RN-F flexible rubber cable

25m (25)

25m (25)

4 x 0.5mm2 H05RN-F flexible rubber cable
