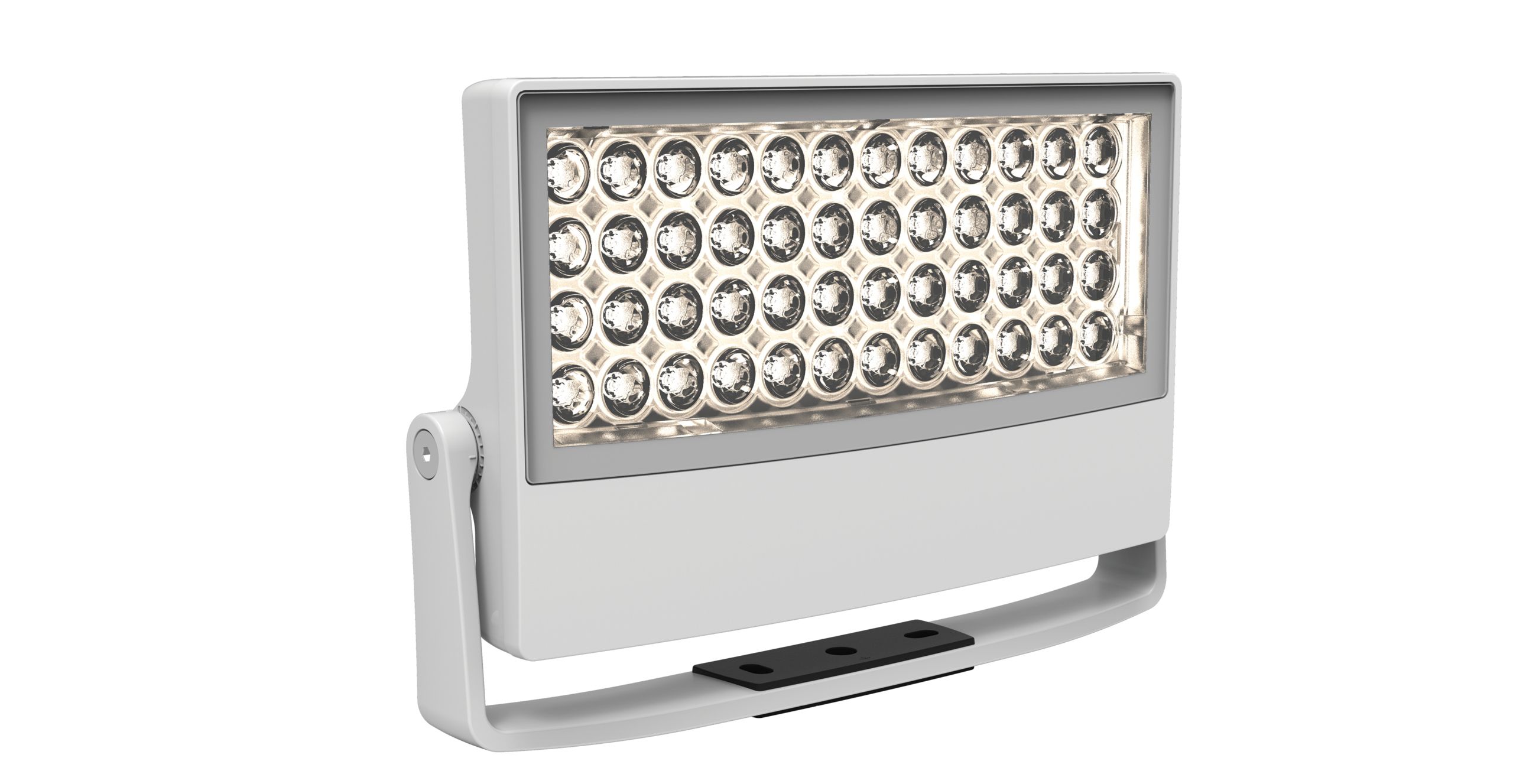

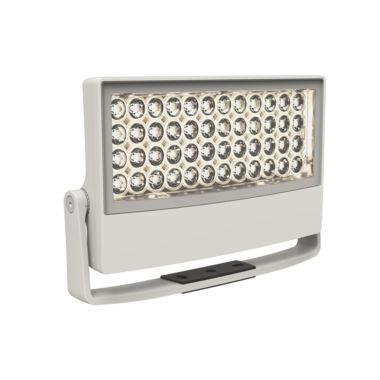

Quadralux Q6 Foundation - LS9162

A large architectural spotlight designed to achieve a peak intensity of up to 620,000 Candela.
Configure this product Features Specifications Accessories

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Supplied standard with designer optics providing superb color-over-angle consistency. Available with integrated Dali control or as non-dimmable.

Features

Lumen Output 7,520 lm LED Power 70 W Power Consumption 69 W, 80 W Typical Lifetime > 60,000 hours Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK9 Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE RCM Colour Options Warm White Cool White Data Sheet

Specifications

Accessories


LS6222 Accessory Holder
LS6223 Cross Hatch Louvre
LS6224 45° Louvre
LS6225 Custom Visor
LS6317 3.0"  (76mm)  Pole Clamp
LS6318 4.0"  (120mm)  Pole Clamp
LS6319 4.5"  (114mm)  Pole Clamp
LS6320 5.0"  (127mm)  Pole Clamp

Downloads

Data Sheet Install Guide
IES Files LS9162 Dali ZIP (113.19 KB) DXF Files LS9162 ZIP (4.99 M) Product Flyer Q6 & Q8 PDF (166.83 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS9162 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Quadralux Q6 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

69 W (69D)

80 W (80D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

4.5°

Sharp Narrow (NX)

Sharp Narrow (NX)

5º

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Mounting

Required

Standard Bracket (S)

3G Rated Bracket (G)

Vibration Resistance (ANSI C136.31)

Input Voltage

Required

220-240 Vac, 50 Hz (01)

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

Non-dimming (ND)

For single color, non-dimming applications only.

DALI (DL)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Cable Length

For custom cable length contact Lumascape.

Required

1.8 m / 6 ft (006)

H07RN-F 5 x 1.0mm² flexible rubber cable

Accessories

Accessory Holder

Order to match luminaire powdercoat colour

Accessory Holder (LS6222)

Required for all shielding and glare control accessories

More info

Louvre

Provides additional glare control. Available in black only.

Cross Hatch Louvre (LS6223)

Cross Hatch Louvre (LS6223)

Requires Accessory Holder

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

45° Visor (LS6224)

45° Visor (LS6224)

More info

Mounting & Installation

Luminaire must be ordered with a 3G rated bracket. Order to match luminaire powder-coat colour.

3.0" Pole Clamp (LS6317)

3.0" Pole Clamp (LS6317)

(76 mm)

More info
4.0" Pole Clamp (LS6318)

4.0" Pole Clamp (LS6318)

(102 mm)

More info
4.5" Pole Clamp (LS6319)

4.5" Pole Clamp (LS6319)

(114 mm)

More info
5.0" Pole Clamp (LS6320)

5.0" Pole Clamp (LS6320)

(127 mm)

More info
