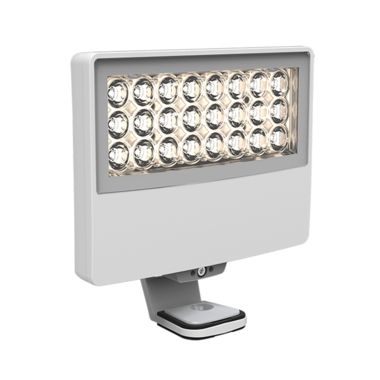

Quadralux Q2 Foundation - LS9122

A small architectural spotlight.
Configure this product Features Specifications Accessories

Product Overview

Combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Supplied standard
with designer optics, providing superb color-over-angle consistency. Available with integrated Dali control or as non-dimmable.

Features

Lumen Output 3,570 lm LED Power 30 W Power Consumption 33 W Typical Lifetime > 60,000 hours Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE RCM Colour Options Warm White Cool White Download Datasheet

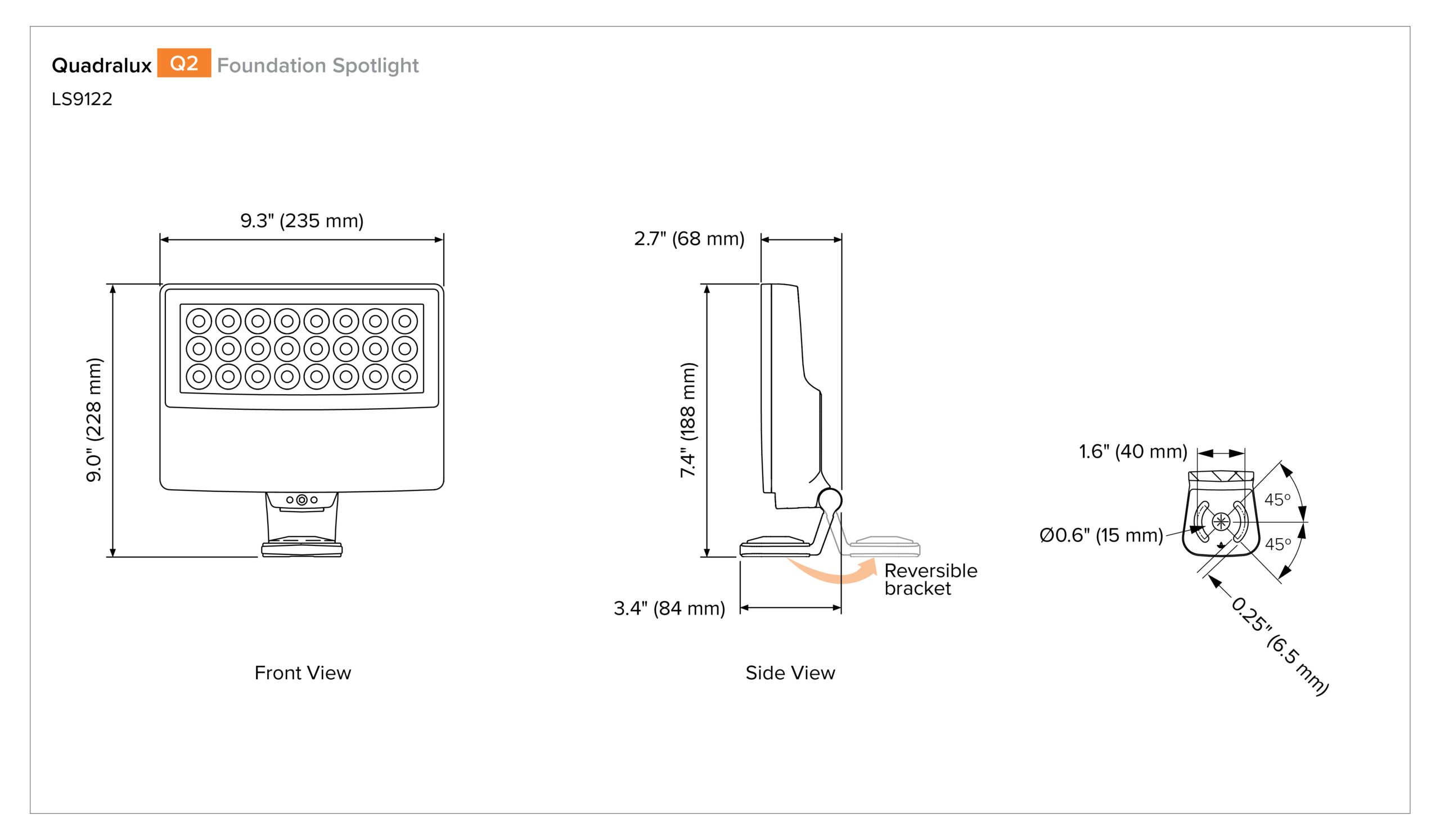

Specifications

Accessories


LS6201 Accessory Holder
LS6202 Cross Hatch Louvre
LS6203 45° Visor
LS6204 Custom Visor
LS6301 4.0"  (106mm)  Junction Box Adaptor / Surface Mounting Kit
LS6302 3.0"  (76mm)  Pole Clamp
LS6303 4.0"  (102mm)  Pole Clamp
LS6304 4.5"  (114mm)  Pole Clamp
LS6305 5.0"  (127mm)  Pole Clamp
LS6306 2 3/8" x 4.0"  (60mm x 104mm)  Tenon Adaptor
LS6307 3.5" x 6.0"  (89mm x 147mm)  Tenon Adaptor

Downloads

Install Guide Download Datasheet
DXF Files LS9122 ZIP (429.22 KB) Product Flyer Q2 & Q4 PDF (148.97 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS9122 _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Quadralux Q2 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

33 W (33D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

6°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

220-240 Vac, 50 Hz (01)

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

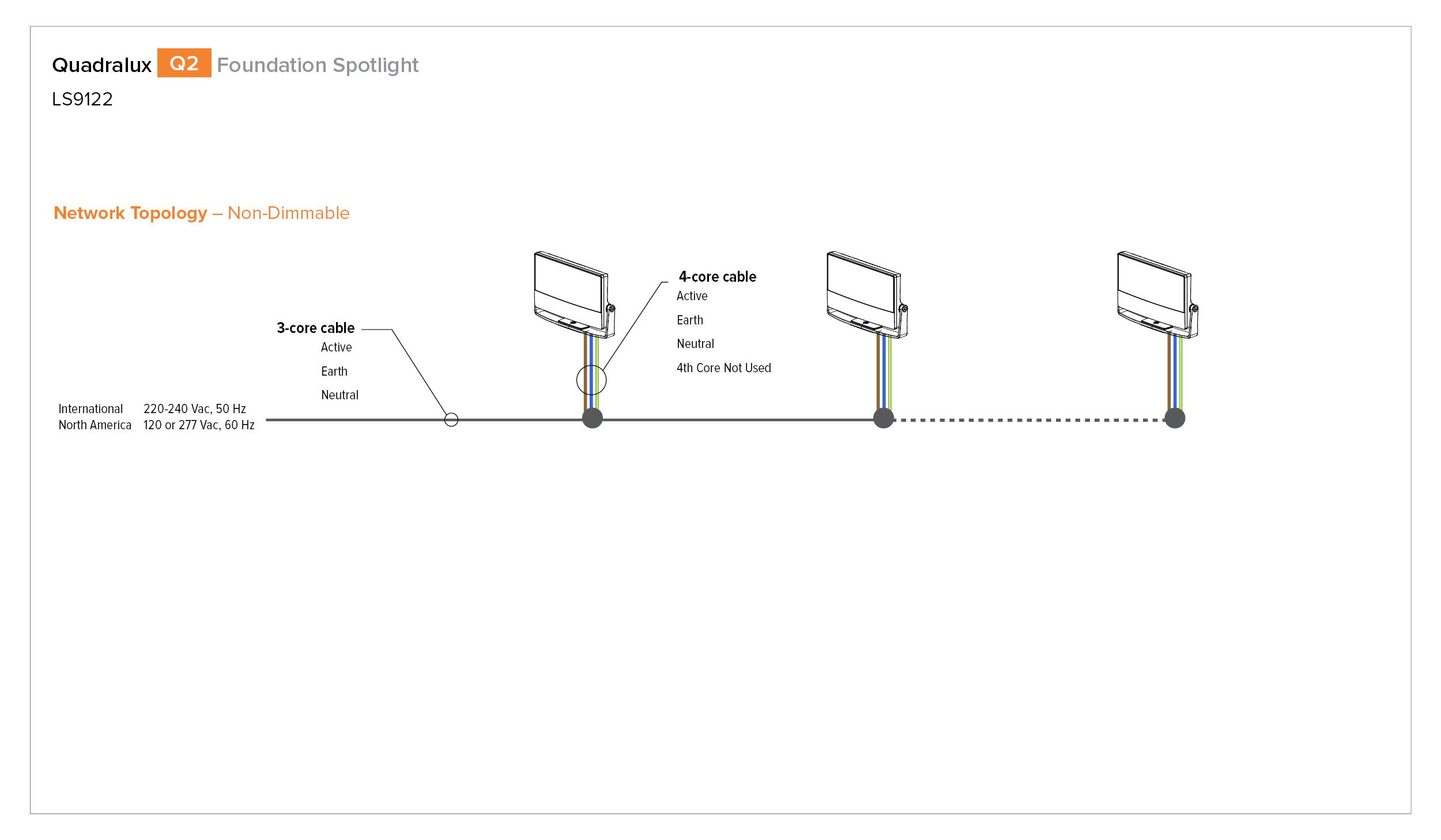

Non-dimming (ND)

For single color, non-dimming applications only.

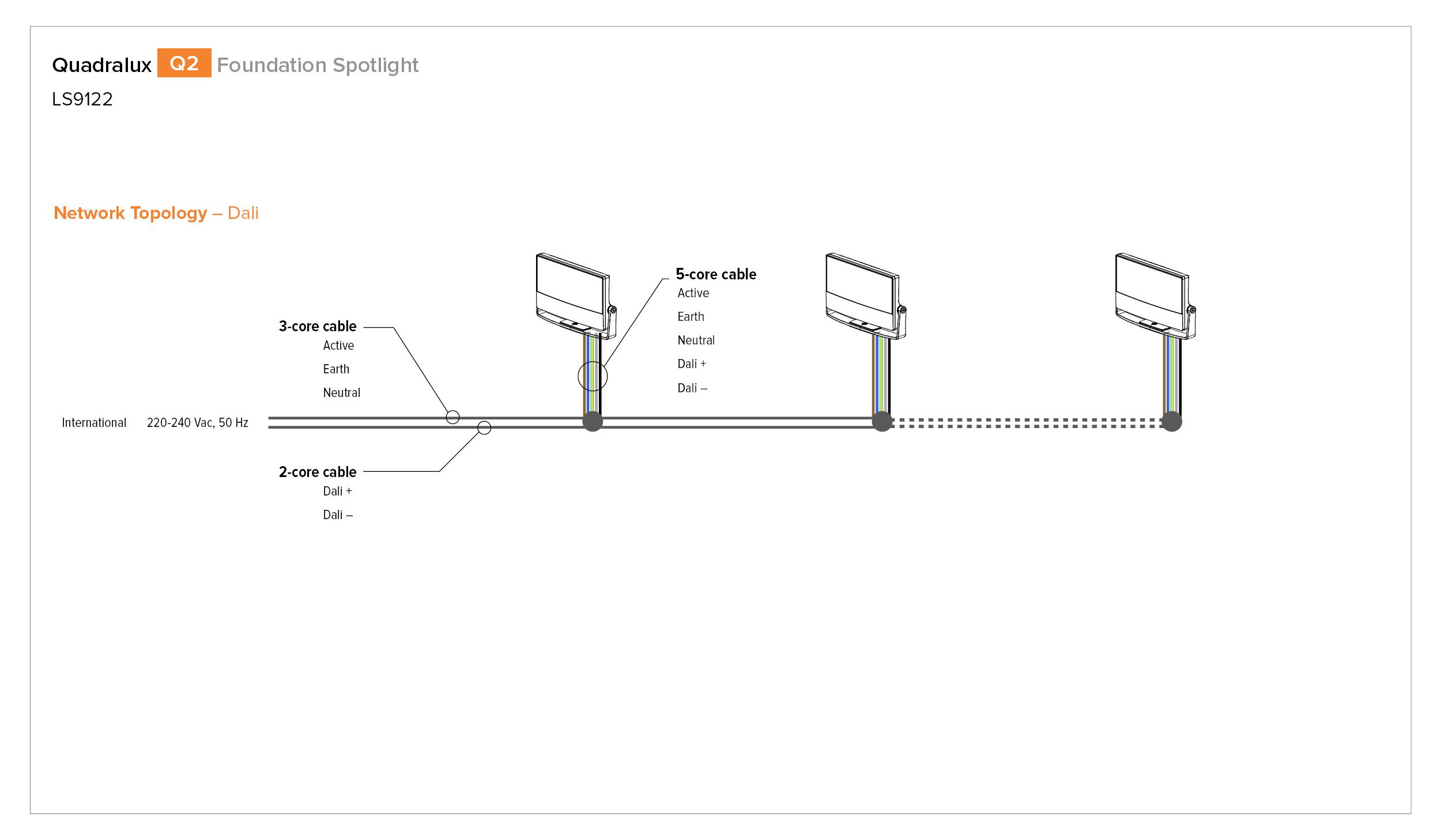

DALI (DL)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Cable Length

For custom cable length contact Lumascape.

Required

1.8 m / 6 ft (006)

H07RN-F 5 x 1.0mm² flexible rubber cable

Accessories

Accessory Holder

Order to match luminaire powdercoat colour

Accessory Holder (LS6201)

Required for all shielding and glare control accessories.

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

45° Visor (LS6203)

Custom visors available on request. Contact Lumascape for more information.

More info

Mounting & Installation

Luminaire must be ordered with a 3G rated bracket. Order to match luminaire powder-coat colour.

4.0" Junction Box Adaptor (LS6301)

4.0" Junction Box Adaptor (LS6301)

Includes Surface Mounting Kit

More info
3.0" Pole Clamp (LS6302)

3.0" Pole Clamp (LS6302)

(76mm)

More info
4.0" Pole Clamp (LS6303)

4.0" Pole Clamp (LS6303)

(102mm)

More info
4.5" Pole Clamp (LS6304)

4.5" Pole Clamp (LS6304)

(114mm)

More info
5.0" Pole Clamp (LS6305)

5.0" Pole Clamp (LS6305)

(127mm)

More info
2 3/8" x 4.0" Tenon Adaptor (LS6306)

2 3/8" x 4.0" Tenon Adaptor (LS6306)

(60mm x 104mm)

More info
3.5" x 6.0" Tenon Adaptor (LS6307)

3.5" x 6.0" Tenon Adaptor (LS6307)

(89mm x 147mm)

More info
