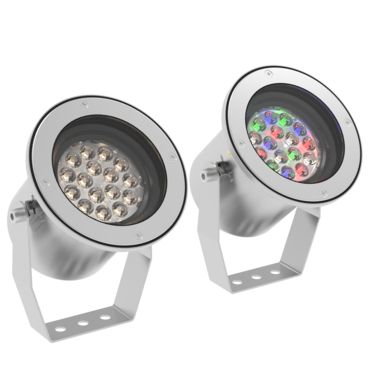

Woda W3

W3
LS5030
A medium-power submersible luminaire suitable for fountain locations
Configure this product

Product Overview

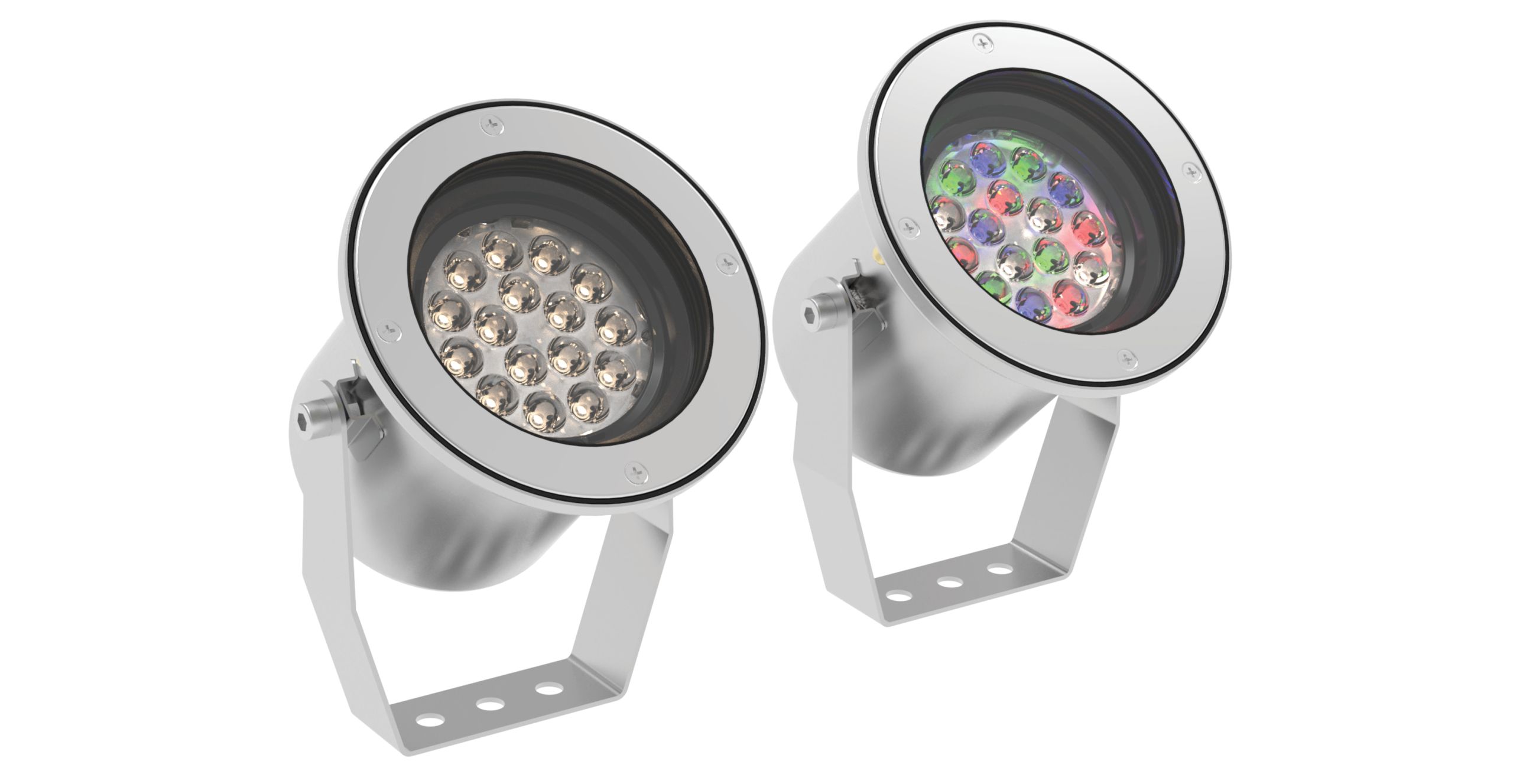

The Woda W3 represents the next generation in Lumascape underwater luminaires. The luminaire takes performance and control technology to a new level, whist leveraging the industry leading reliability of the Lumascape brand. The Woda W3 is a powerful LED fixture with exceptional light output and is available in a wide variety of optical configurations including narrow spot and bi-symmetrical distributions. The luminaire has a wide variety of colour temperatures and is constructed from cast brass ideally suited for the underwater environment.

Accessories
LS6074 Mounting Plate



Specifications

Features

Lumen Output 3,650lm Power Consumption 35W Control Protocol PowerSync (DMX/RDM, 0-10V) IP Rating IP68 to 6ft (1.8m) IK Rating IK9 Colour Options Cool White Warm White RGBW RGBA Tunable White Download Datasheet

Downloads

Download Datasheet
Install Guide LS5030 PDF (845.19 KB) DXF Files LS5030 ZIP (89.93 KB) IES Files LS5030 ZIP (92.26 KB) CAD Details Link

Related

Technology

Product Configurator

LS5030 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Woda W3 below

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

32W (32)

LED Type

Required

Standard (S)

Ideal for applications where maximum output power and efficacy are most important e.g. Flood and Area lighting

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important e.g. Grazing and Accent lighting

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Dynamic Colour (RGB)

Dynamic Colour (RGB)

RGB (On Request)

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

6°

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

60°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

30V DC (07)

30V DC (07)

Low Voltage

Control

Required

Non dimmable (ND)

For single colour, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and colour changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required - order separately.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info
Epoxy Black (EB)

Epoxy Black (EB)

Epoxy black finish

Natural Brass (BR)

Natural Brass (BR)

Natural brass finish

Cable Length

For custom cable length contact Lumascape.

Required

5m / 16ft (016)

Flexible rubber cable

8m / 26ft (026)

Flexible rubber cable

10m / 32ft (032)

Flexible rubber cable

15m / 50ft (050)

Flexible rubber cable

20m / 66ft (066)

Flexible rubber cable

25m / 82ft (082)

Flexible rubber cable

30m / 98ft (098)

Flexible rubber cable

Accessories

Mounting & Installation

Mounting Plate (LS6074)

Mounting Plate (LS6074)

Square mounting plate
