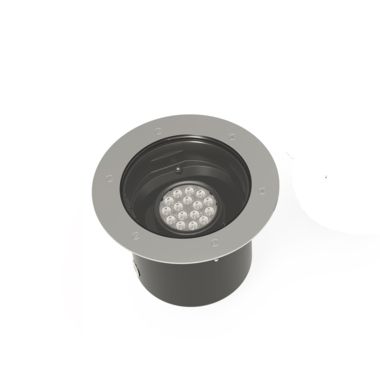

Erden E6 Foundation - LS3062

A architectural-grade shallow-depth in-ground.
Configure this product Features Specifications Accessories

Product Overview

Combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Available with integrated Dali control or as non-dimmable.

Features

LED Power 24 W Power Consumption 25 W Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz Earth Leakage (International) 0.16 mA @ 240 Vac IP Rating IP68 IK Rating IK10 Static Load Rating 9,259 lbs (4,200 kg) Compliance ETL - USA & Canada CE RCM Colour Options Warm White Cool White Download Datasheet

Specifications

Accessories


LS6052-K Pre-Installation Kit
LS640-2 Mounting Collar
LS6247 Snoot Array Louver
LS6248 Honeycomb Louver

Downloads

Download Datasheet
Install Instructions (Pre-Install) PDF (1.17 M) Install Instructions (Direct Burial) PDF (1.17 M) IES Files LS3062 Dali ZIP (47.18 KB) DXF Files LS3062 ZIP (598.04 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS3062 _ _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Erden E6 Foundation below

Installation Type

Select the installation type you require.

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Mounting Collar

Mounting Collar

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

25 W (25D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Lens

Required

OptiClear™ (A)

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

MicroAntiLeach Cable (84)

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

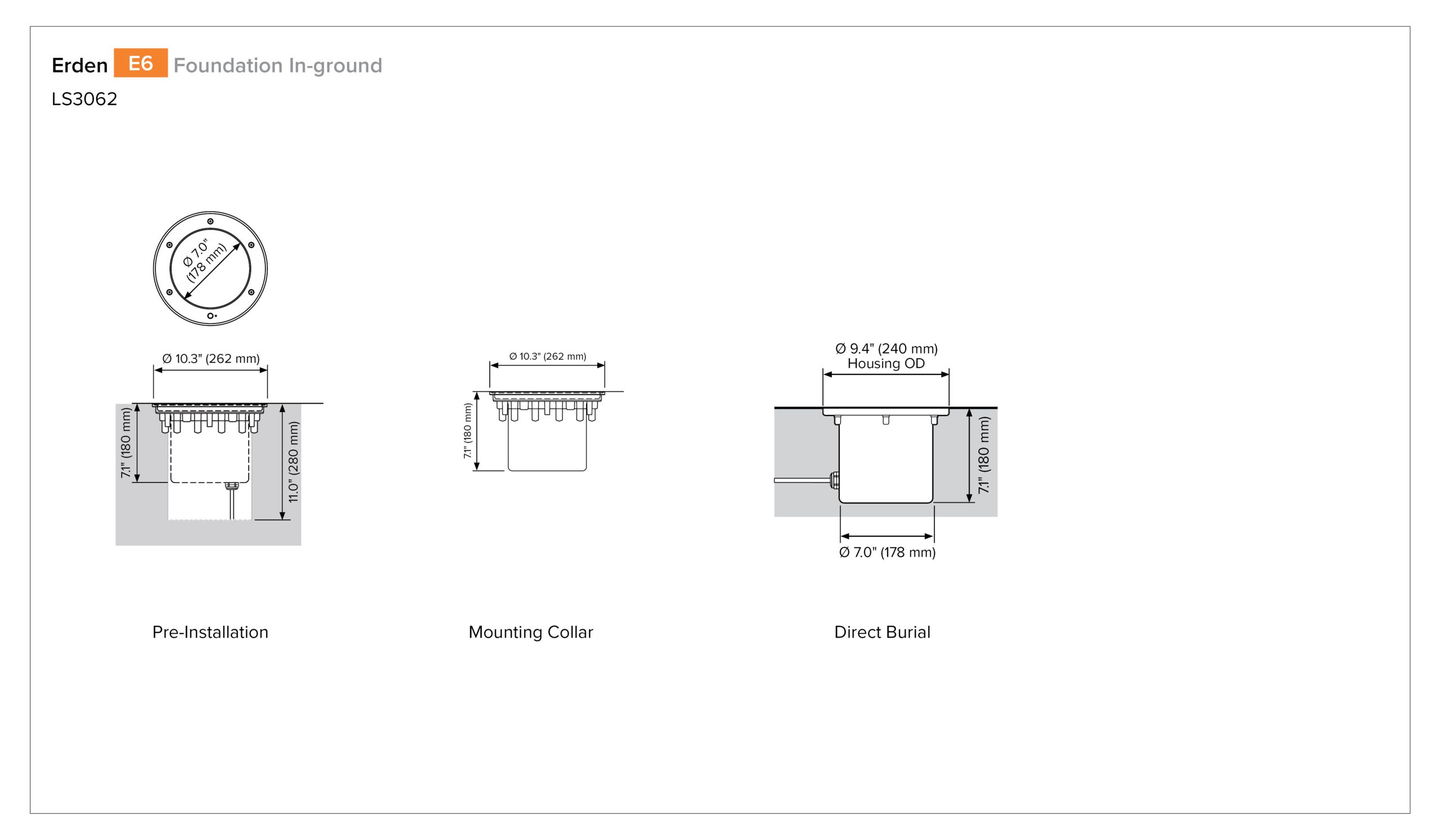

Housing Depth

Required

Pre-Install Blockout (23)

12.8"/ 280 mm

Mounting Collar (23)

12.8"/ 280 mm

Direct Burial (21)

7.1" / 180 mm

Cable Entry

Required

Side (N)

Side (N)

Bottom (Q)

Bottom (Q)

Input Voltage

Required

220-240 Vac, 50 Hz (01)

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

Non-dimming (ND)

For single color, non-dimming applications only.

DALI (DL)

Accessories

Pre-Installation Options

Pre-Installation Kit (LS6052-K-84)

Pre-Installation Kit (LS6052-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info
Mounting Collar (LS640-2)

Mounting Collar (LS640-2)

For use in decks and tree grates. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Mounting Collar luminaire.

More info

Shielding & Glare Control

Snoot Array Louver (LS6247)

Provides additional glare control.

Honeycomb Louver (LS6248)

Provides additional glare control.
