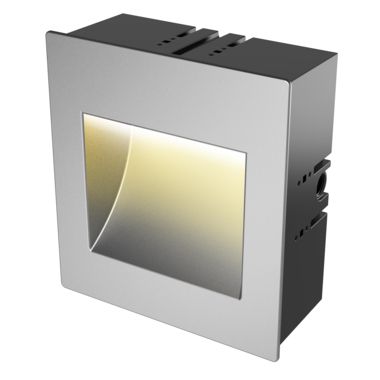

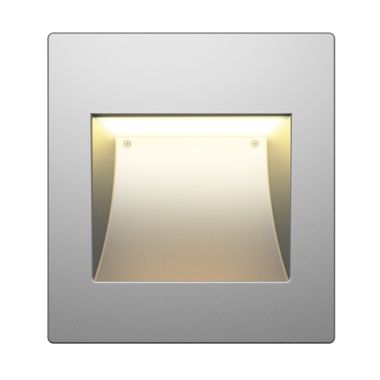

Nook NK4

NK4
LS1265
A recessed, wall-mounted luminaire that offers beautiful lighting transitions in a compact design.
Configure this product

Product Overview

Strength, versatility and unmatched style come together in the Nook NK4 recessed wall light, producing a uniquely crafted luminaire that complements traditional, modern and classical architecture and brings a layer of elegance to any commercial space.

Supplied with

LS6333 Pre-Installation Kit







Specifications

Features

Wattage Configuration 8 W, 11 W, 15 W and 25 W Typical Lifetime > 50,000 hrs (B10, L70) Input Voltage (Global) 220-240 Vac/dc, 50 Hz Input Voltage (NA only) 120 Vac/dc 60 Hz, 110-277 Vac/dc 60 Hz Dimming 0-10 V, Phase Dimming IP Rating IP65 IES Classification Type II or Type III Compliance CE RCM Colour Options Cool White Warm White Download Datasheet

Product Configurator

Customise Nook NK4 below

Light Engine

Required

8 W (08)

11 W (11)

15 W (15)

25 W (25)

LED Type

Required

Principle (P)

Select for a wide variety of applications in accent and general lighting (e.g., bollard and step lighting)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 2 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 2 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 2 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 2 SDCM)

Optics

Required

Clear Lens (CL)

Frosted Lens (FR)

Style

Required

Square (SQ)

Eased Square (ES)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Short Throw (ST)

Medium Throw (MD)

Long Throw (LG)

Input Voltage

Required

220-240 Vac/dc, 50 Hz (01)

For use on 0-10 V controls

Control

Required

0-10V (10%) (AS)

0-10V (10%) (AS)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Accessories

For mounting Nook NK2

Contains 4 x ½" knockouts with a depth of 3.3". This kit is required and specified separately

Pre-Installation Kit (LS6333)

Pre-Installation Kit (LS6333)

Pre-Installation mounting kit for Nook NK4 light
