Piazza LED PO2

PI1
G522-LED

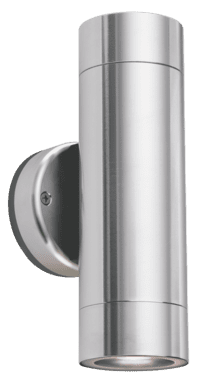

A compact and versatile bi-directional wall grazer
Configure this product

Product Overview

The G522-LED Piazza is a compact, fixed position, direct/indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed of 316 marine grade stainless steel with Lumascape’s proprietary ElectroPolishPlus™ surface treatment, to provide a long life even in coastal environments. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Features

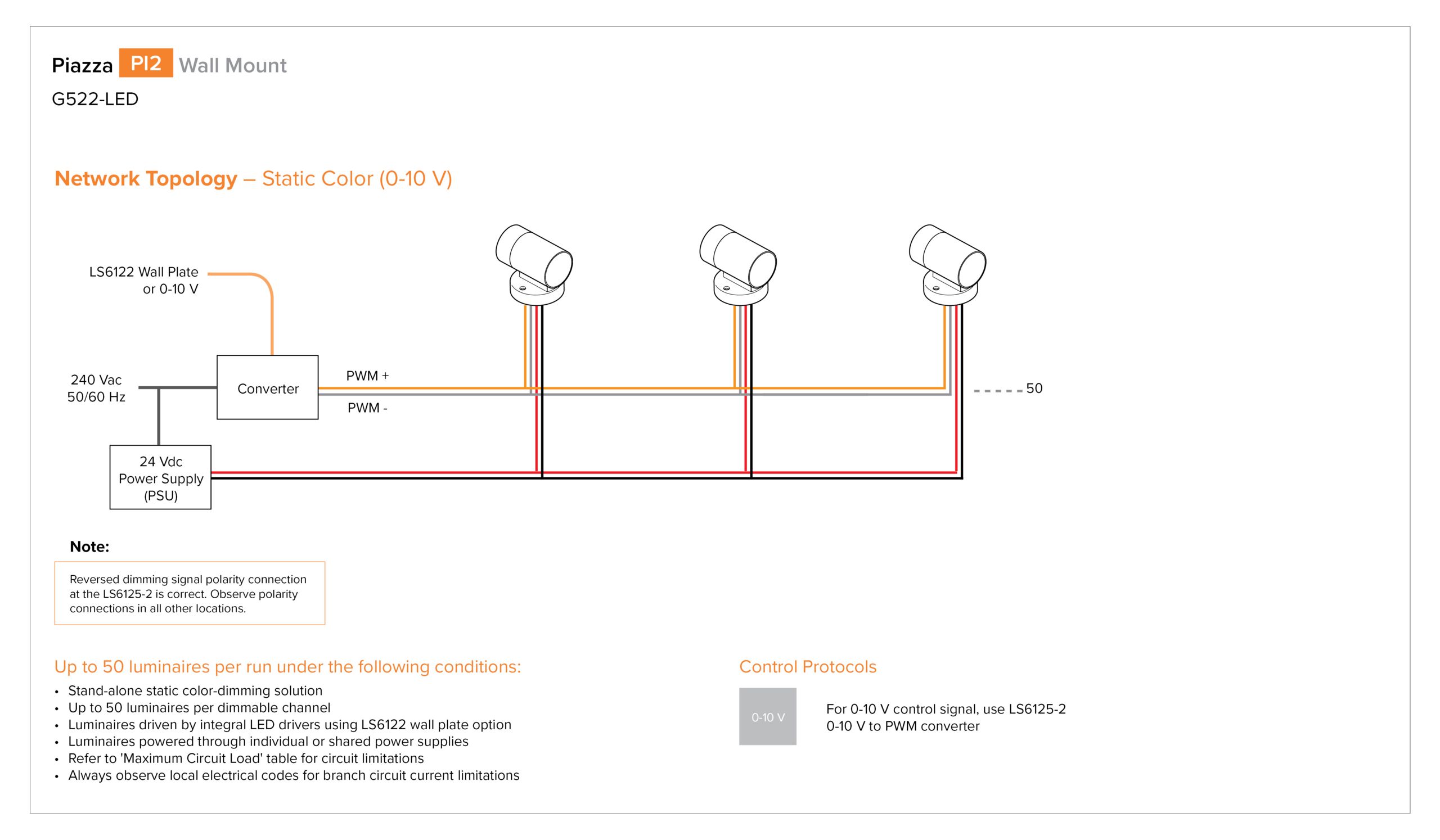

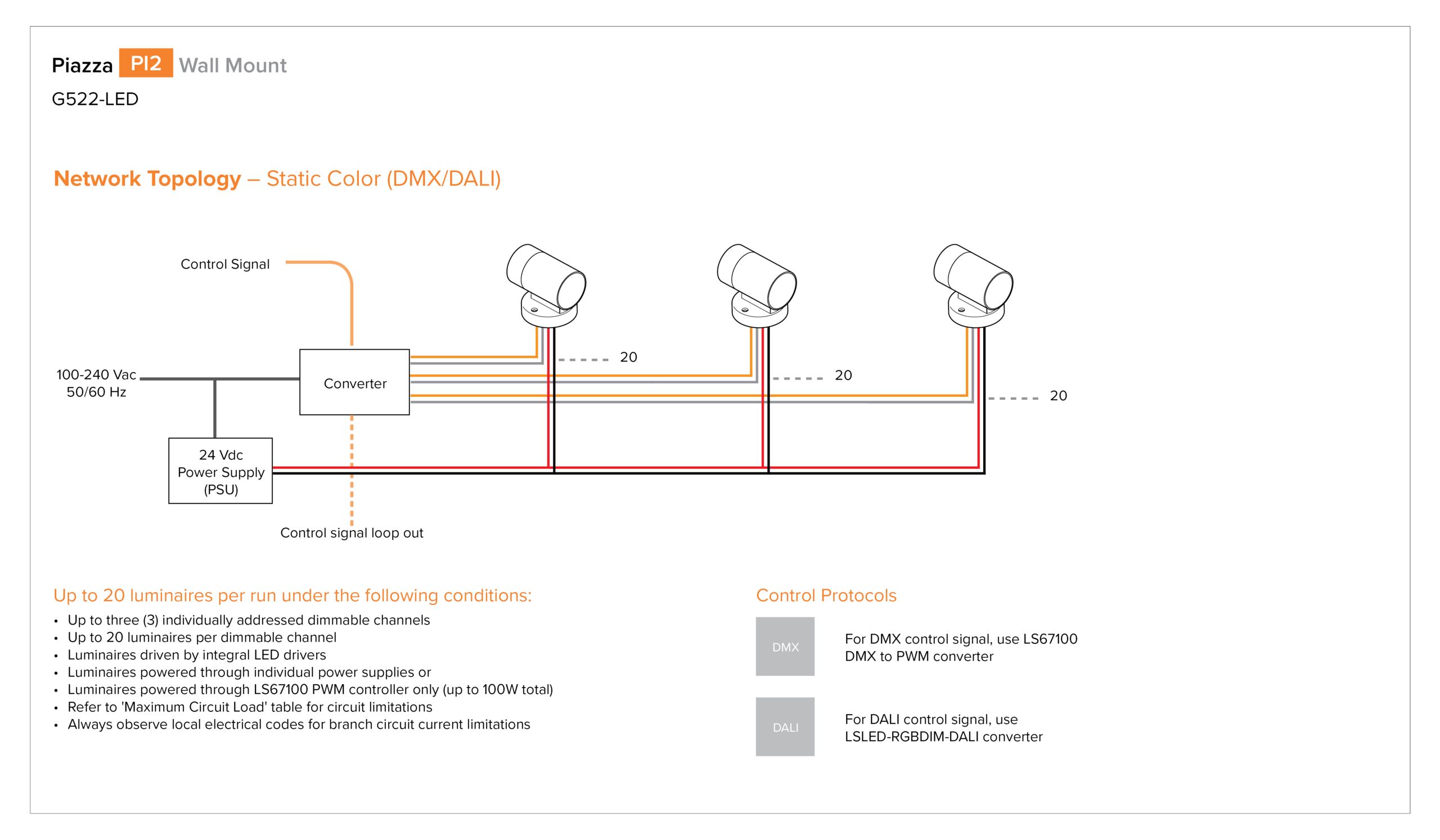

Lumen Output 2 x 322lm Power Consumption 7.2W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Colour Options Blue Cool White Warm White Download Datasheet

Downloads

Download Datasheet
Install Guide G522-LED (low voltage) PDF (844.23 KB) Install Guide G522-LED (line voltage) PDF (887.26 KB)

Related

Technology

Product Configurator

G522-LED _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Piazza LED PO2 below

Light Engine

Required

2 x 3W (6)

2 x 3W (6)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

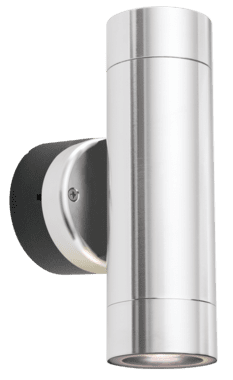

110-240V, 50/60Hz (M)

110-240V, 50/60Hz (M)

Mains Voltage

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment
