Villa LED VL1

VL1
G511-LED
A compact and versatile wall grazer with an adjustable head
Configure this product

Product Overview

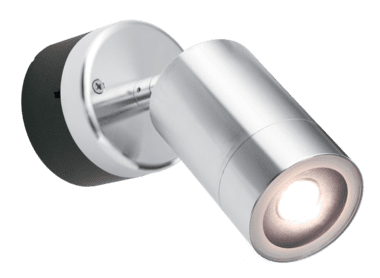

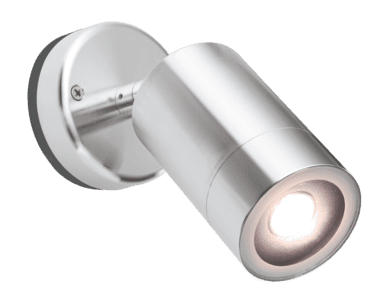

The G511-LED Villa is a compact, adjustable, direct or indirect accents used for grazing walls or other accent illumination tasks. The luminaire is constructed from 316 marine grade stainless steel with Lumascape’s proprietary ElectroPolishPlus™ surface treatment, to provide a long life, even in coastal environments. This luminaire is ideal for use in modern architectural designs, and features Lumascape d5 driver technology for advanced dimming and control options.

Features

Lumen Output 322lm Power Consumption 3.6W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Colour Options Cool White Warm White Blue Download Datasheet

Product Configurator

Customise Villa LED VL1 below

Light Engine

Required

3W (3)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

110-240V, 50/60Hz (M)

110-240V, 50/60Hz (M)

Mains Voltage

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment
