Grevillea LED GR2

GR2
G442-LED

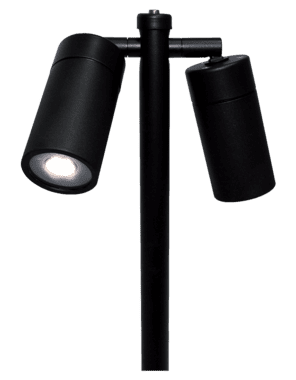

A compact and versatile landscape luminaire with an adjustable head
Configure this product

Product Overview

The G442-LED Grevillea is an excellent option for delivering light on the ground plane, or for feature accent lighting without obstruction from low-level plantings. Aim and tilt adjustability, a choice of finishes and long service life are all part of the package. The Grevillea also features new Lumascape d5 driver technology as a standard inclusion, providing a high level of control: When high output is required, it can be deployed in its full output, 2 x 6W configuration; If a lower level of light is required, it can be set as low as 0.6W, (either by the factory or in the field).



Features

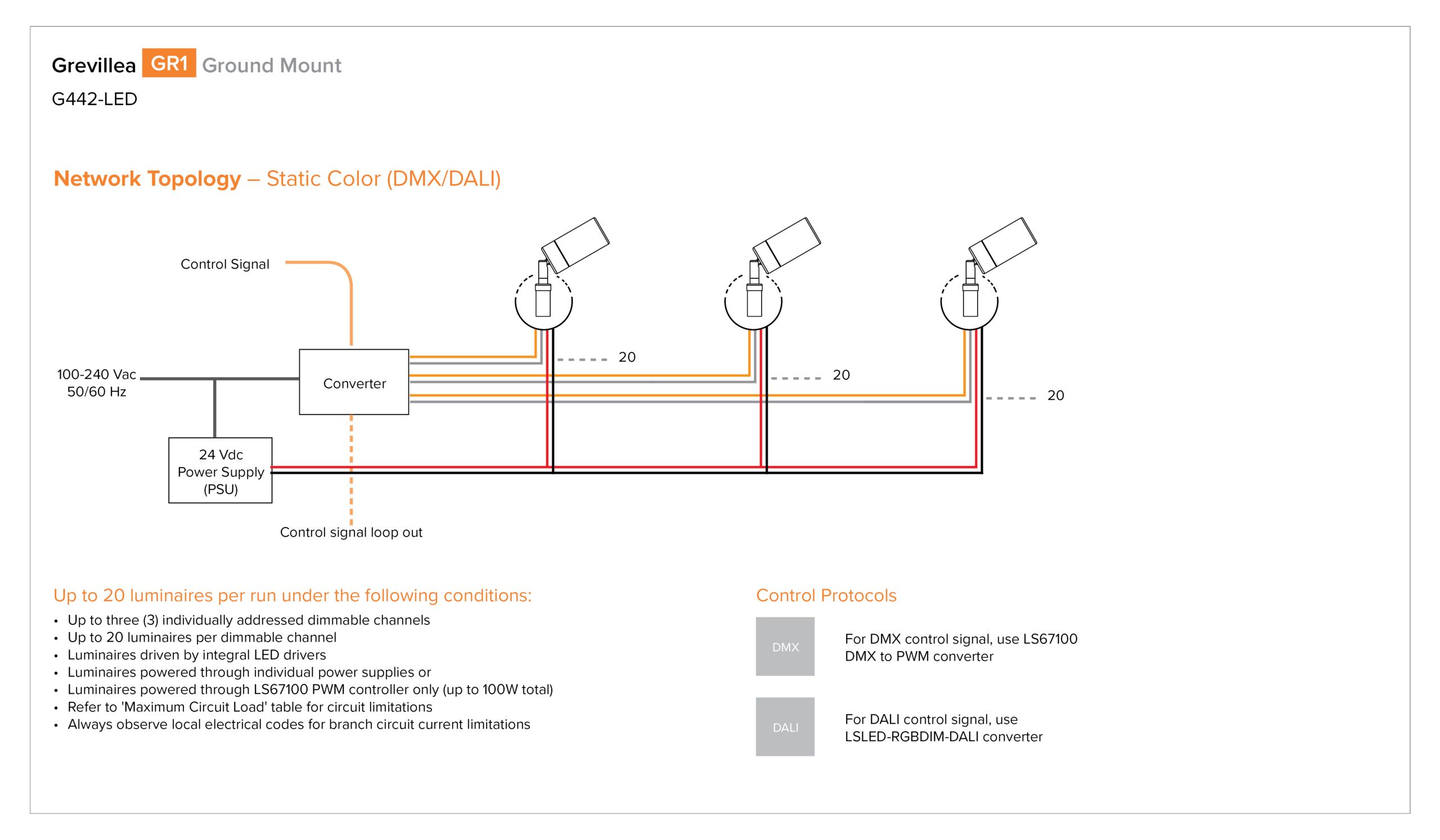

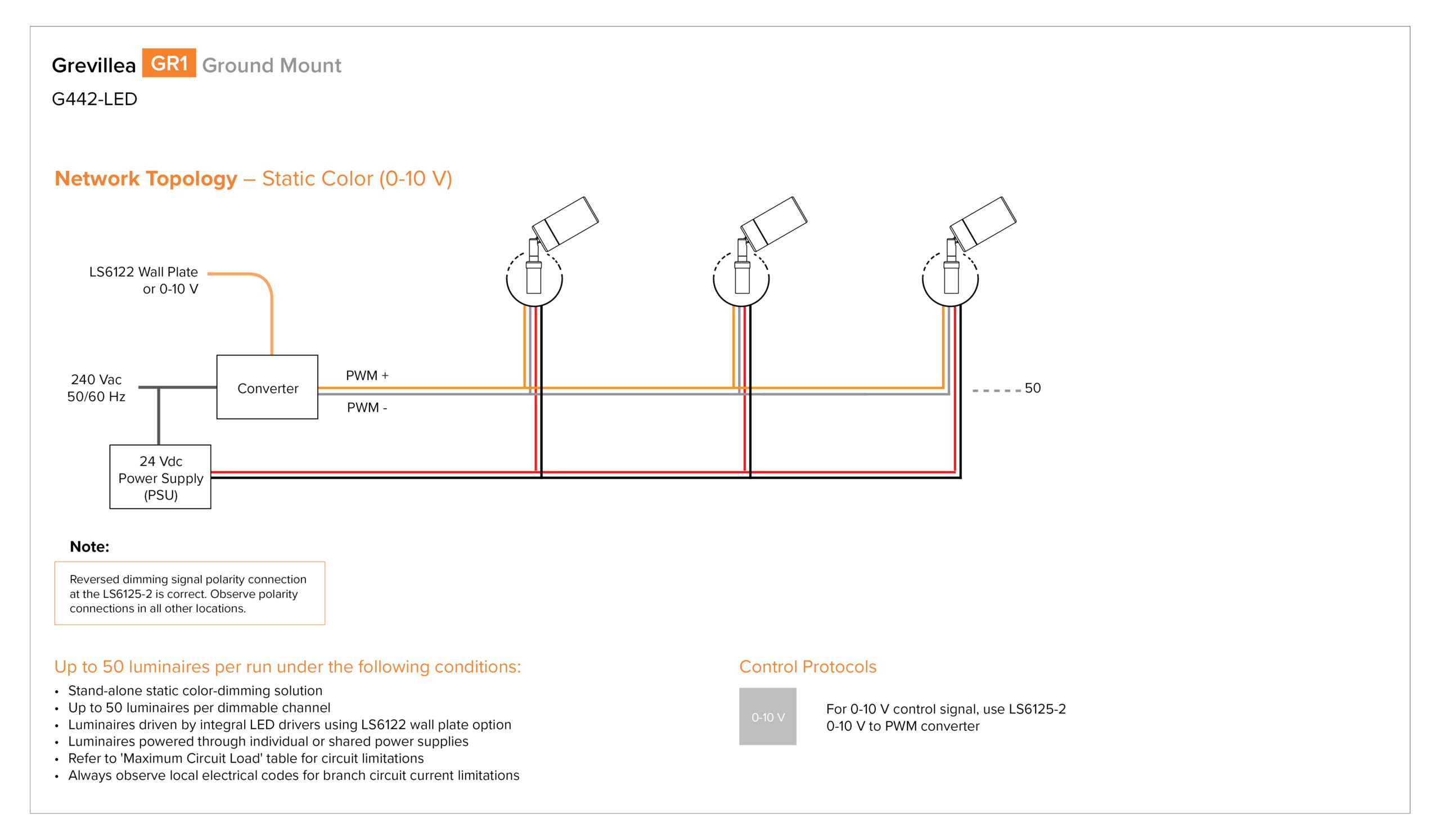

Lumen Output 2 x 556lm Power Consumption 2 X 6W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Colour Options Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Grevillea LED GR2 below

Light Engine

Required

2 x 6W (12)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

Finish

Custom powder coat colours are available. Please consult factory.

Required

Polished Copper (CU)

Polished Copper (CU)

Polished Copper finish

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Accessories

Accessories

Copper Glare Shield (G624-CU-2)

2 x Polished copper Glare Shield

Glare Shield (G624-2)

2 x Glare Shields. Order to Match Luminaire Powder Coat Colour
