Pagoda LED PA2

PA2
G422-LED
A compact and versatile wall grazer with two adjustable heads
Configure this product

Product Overview

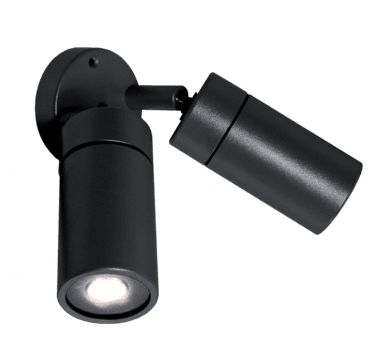

The G422-LED Double Pagoda is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminum, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.



Features

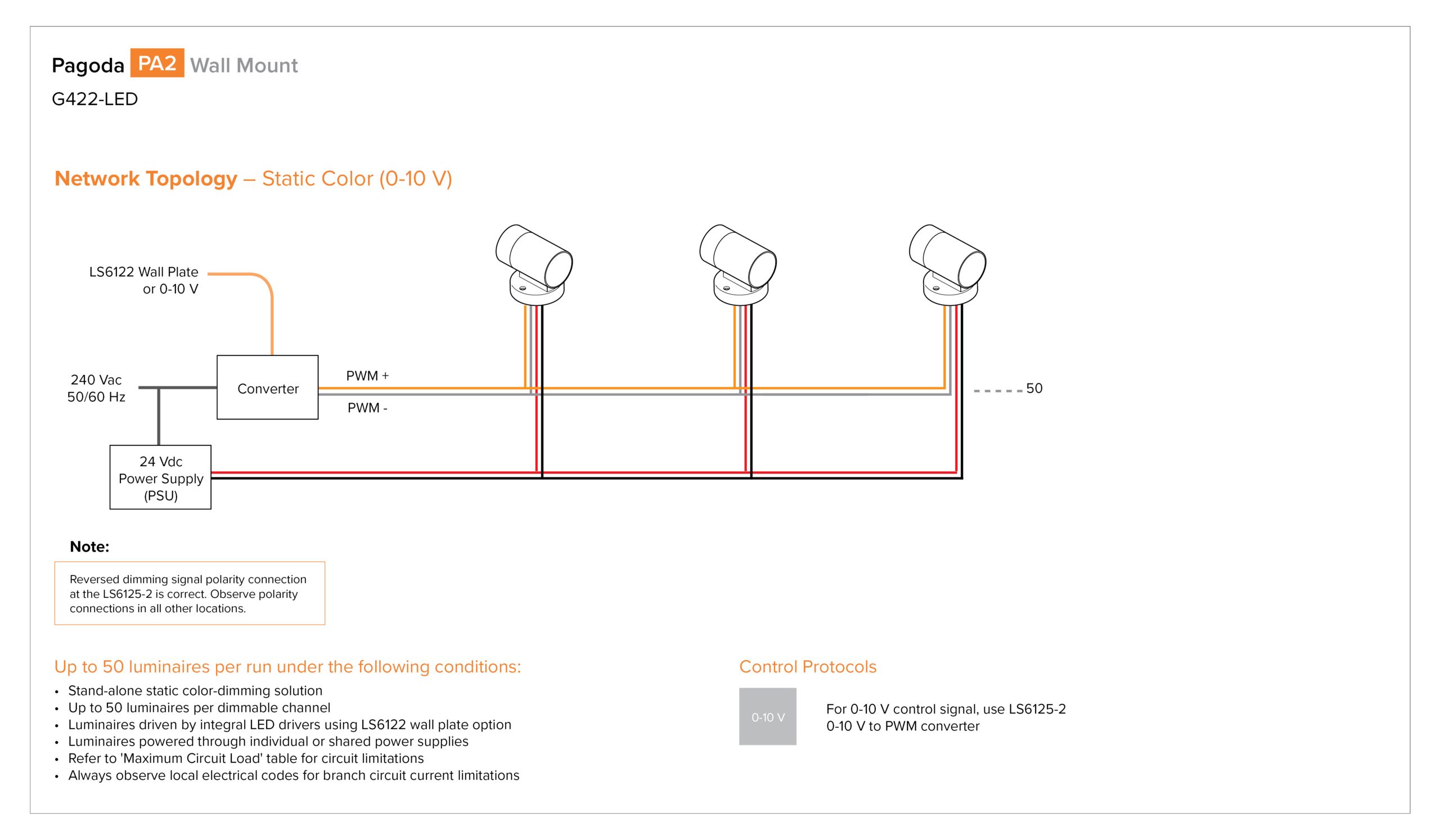

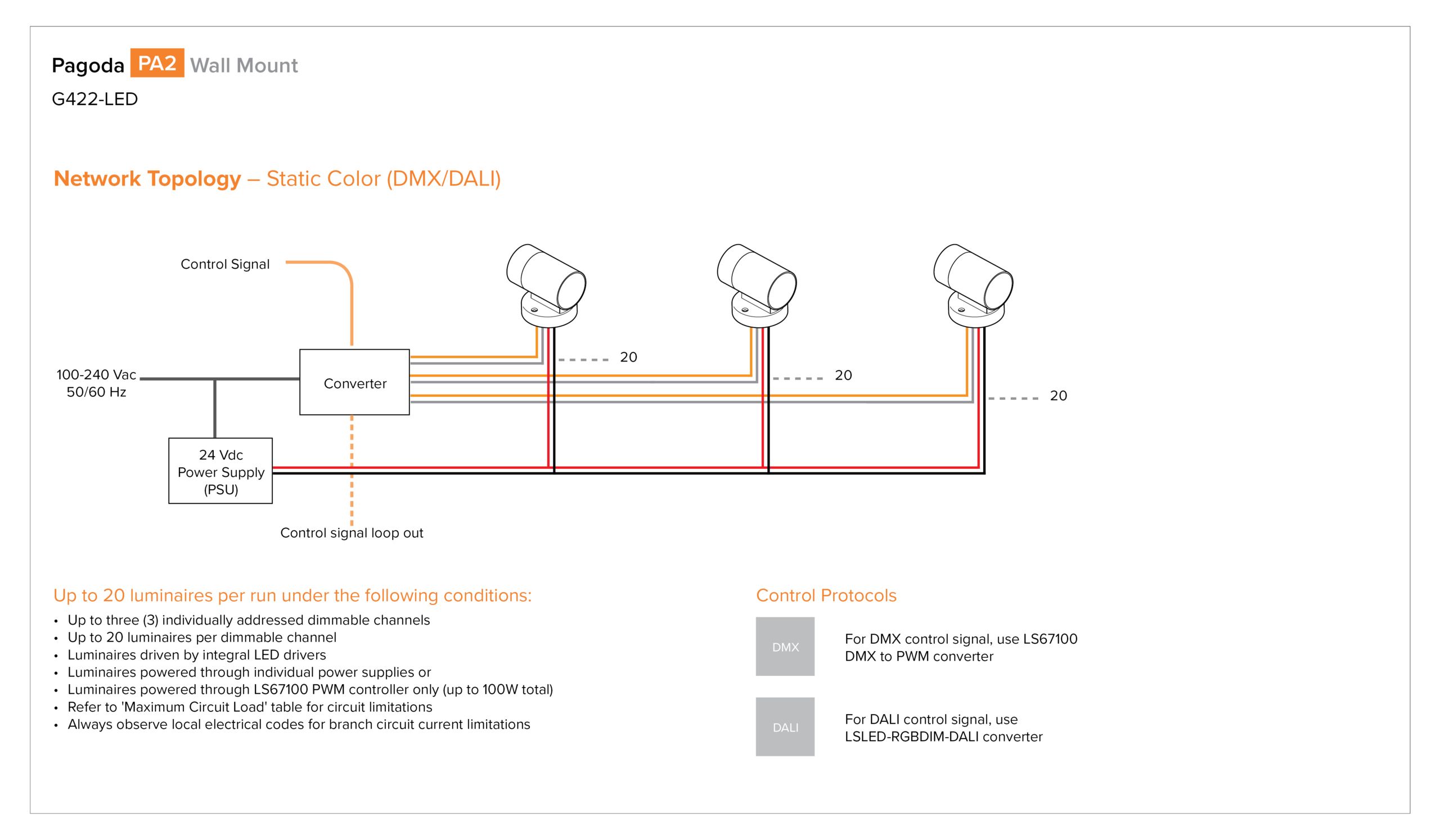

Lumen Output 2 x 556lm Power Consumption 2 X 6W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Colour Options Cool White Warm White Blue Download Datasheet

Product Configurator

Customise Pagoda LED PA2 below

Light Engine

Required

2 x 6W (12)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

Finish

Custom powder coat colours are available. Please consult factory.

Required

Polished Copper (CU)

Polished Copper (CU)

Polished Copper finish

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult Lumascape for pricing

More info

Accessories

Accessories

Copper Glare Shield (G624-CU-2)

2 x Polished copper Glare Shield

Glare Shield (G624-2)

2 x Glare Shields. Order to Match Luminaire Powder Coat Colour
